Install the Air Duct
See
"Install the PSU Duct" on page
Move any loose cables to the gap between the DIMMs and the chassis walls.
2.

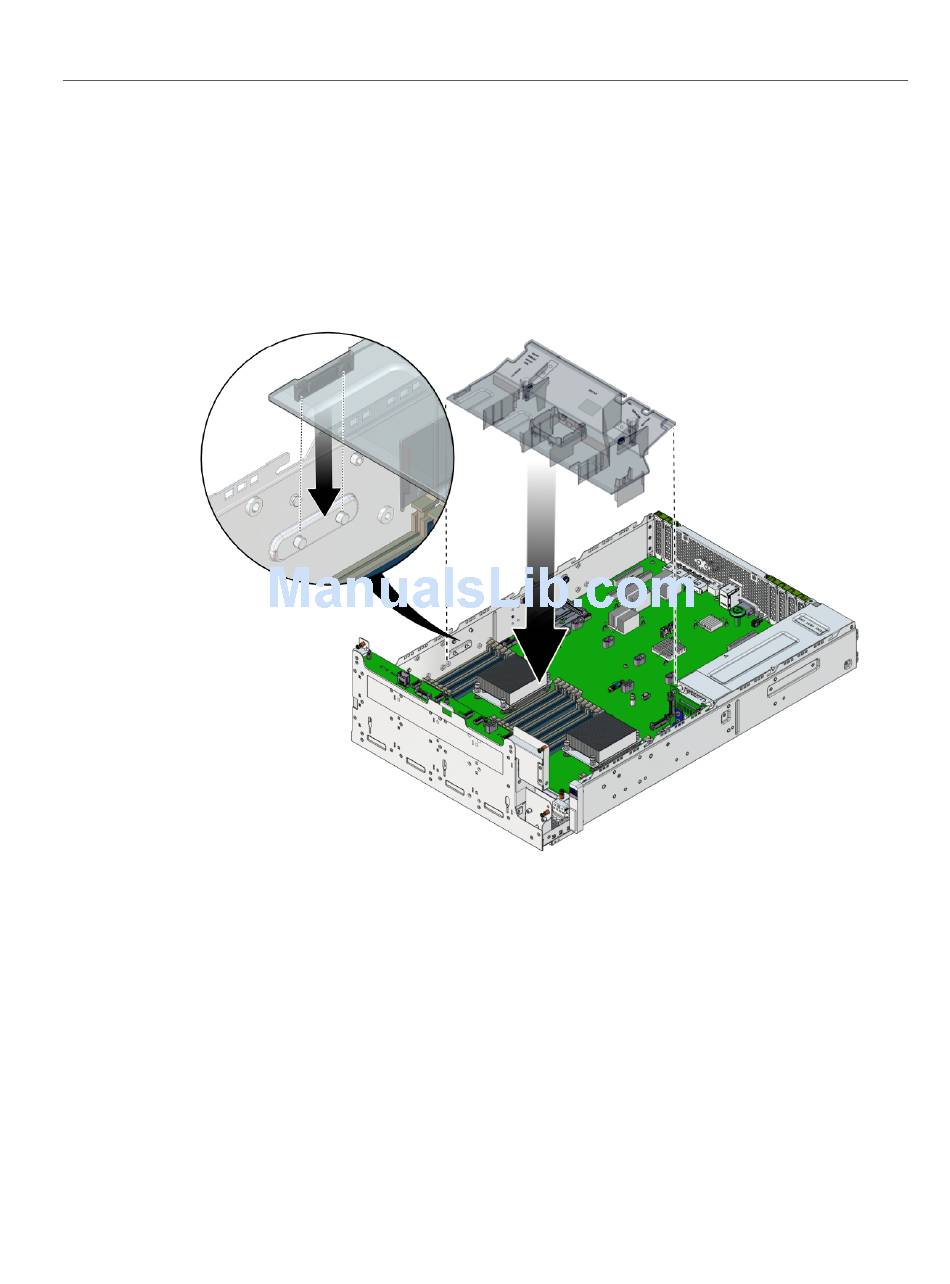

Align the air duct to where it installs into the chassis.
3.
4.
Lower the air duct onto the alignment pins.
250
Netra Server X5-2 Service Manual • October 2016
248.
