Install a CPU
3.

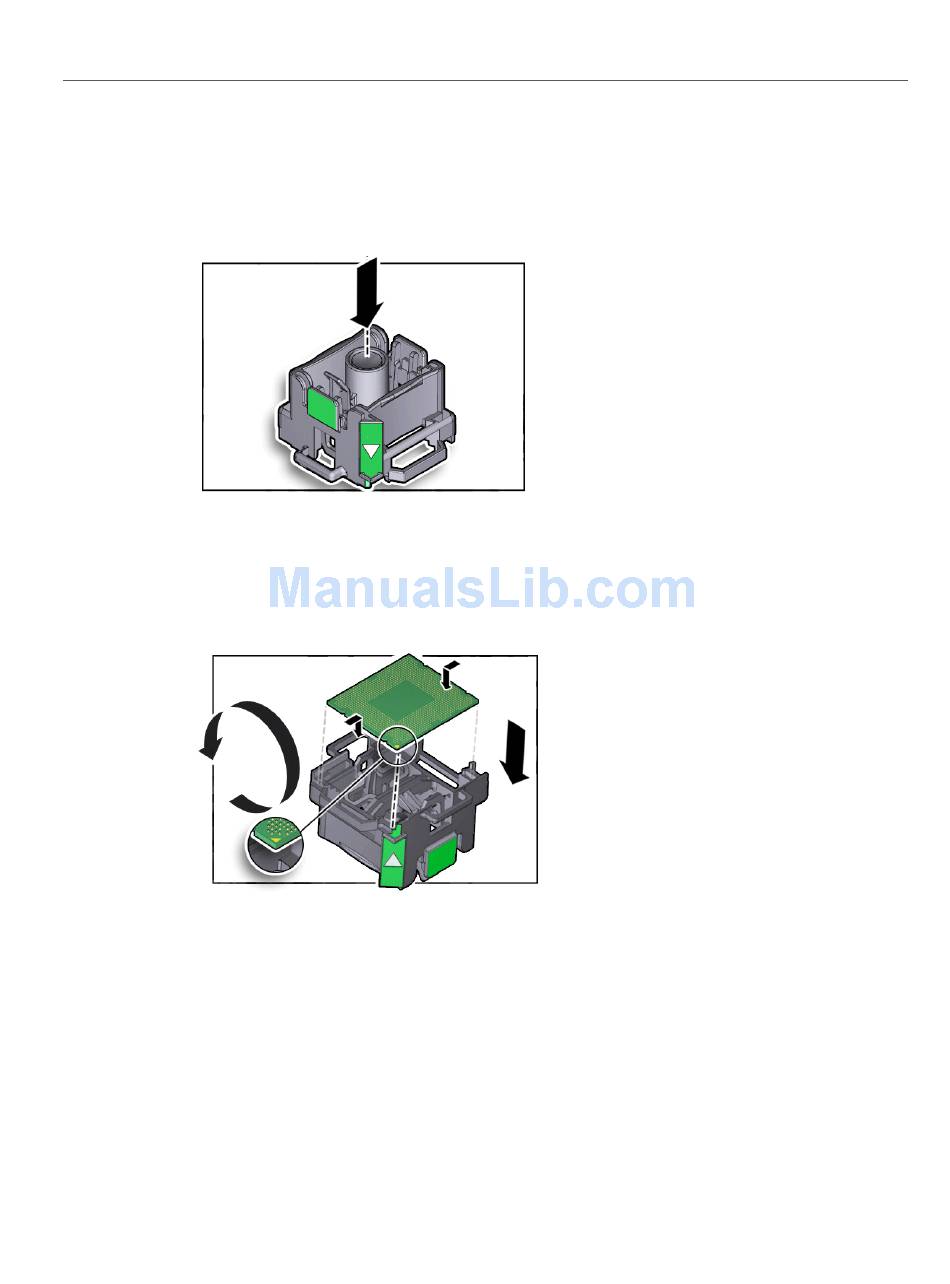

Press the release button on the CPU tool to open the securing clips.
See
"CPU Tool" on page
4.
Turn the tool upside down and lower the CPU into the tool, pin side up.
The triangle on the side of the tool aligns with pin 1 of the CPU.
5.
Press the hold lever outward to engage the CPU.
204
Netra Server X5-2 Service Manual • October 2016
197.
