DIMM Configuration

DIMM Configuration

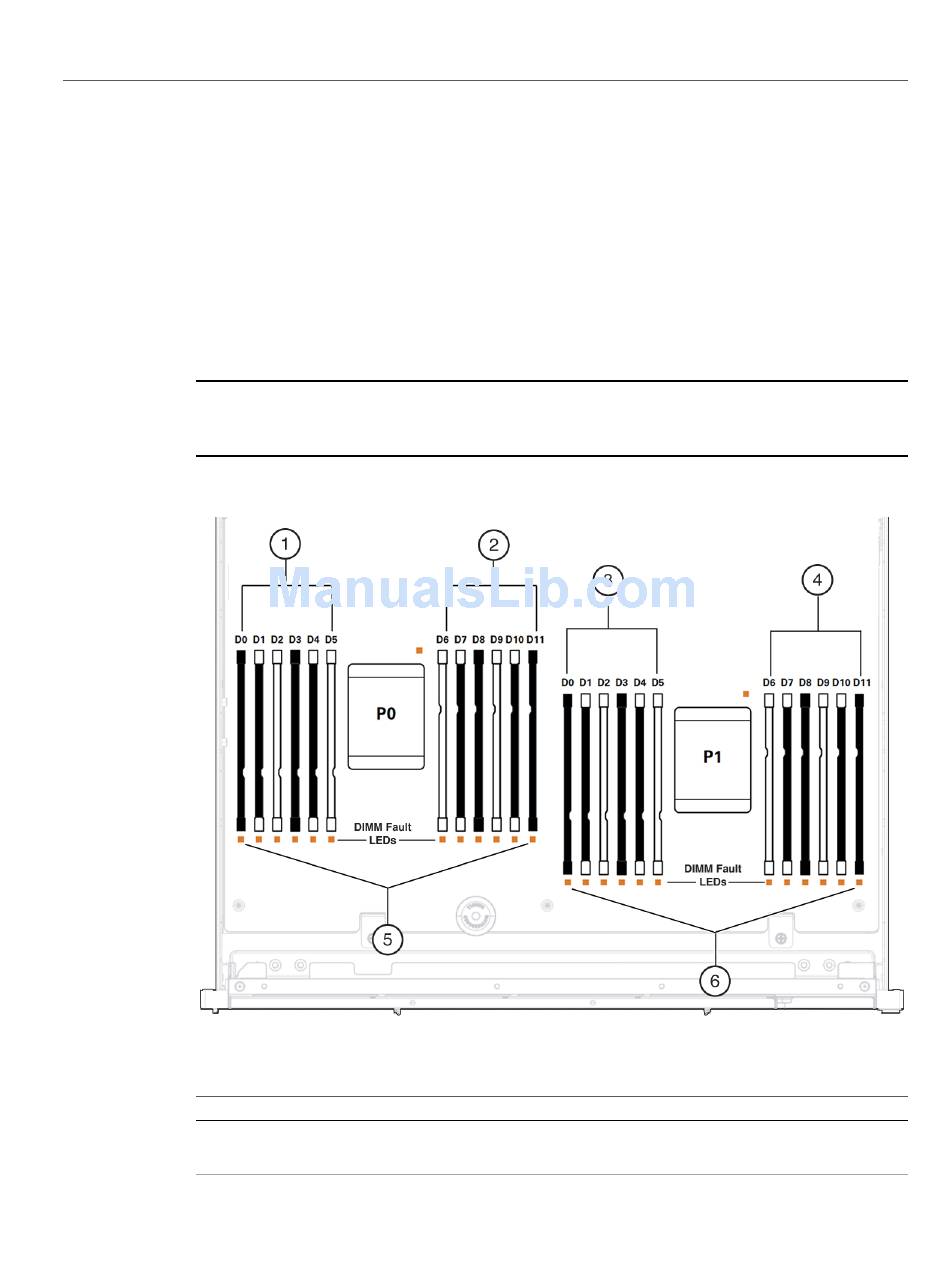

In this illustration of the DIMM slots, the Oracle ILOM legacy targets for the DIMMs are
provided across the top, and the Oracle ILOM /System targets for the DIMMs are provided
across the bottom.
For example, the slot on the far left has the Oracle ILOM legacy target of /SYS/MB/P1/D0. This
same slot has the Oracle ILOM /System target of /System/Memory/DIMMs/DIMM_0.
Note -
single-processor configuration, the DIMM slots on P1 are not functional, and must be filled
with filler panels.
Number
1
2
182 Netra Server X5-2 Service Manual • October 2016
This illustration shows the DIMM slots for the dual-processor configuration. With the
Oracle ILOM Target
/SYS/MB/P0/D(0-5)
/SYS/MB/P0/D(6-11)
