Displaying the Resource Report

1
Resource Report Display in Flexible Resource Capacity Mode™
The Resource Report details the current availability and usage of the system resources for
both AVC and SVC-based endpoint, displaying the number of free and occupied audio and
video resources. A Resources Graph is displayed in addition to the Resources table.
Example: A RealPresence Collaboration Server (RMX) 2000 in MPM+ Card Configuration Mode
and Flexible Resource Capacity Mode has:
Example: A RealPresence Collaboration Server (RMX) 2000 has:
•
•
•
•
•
21-18

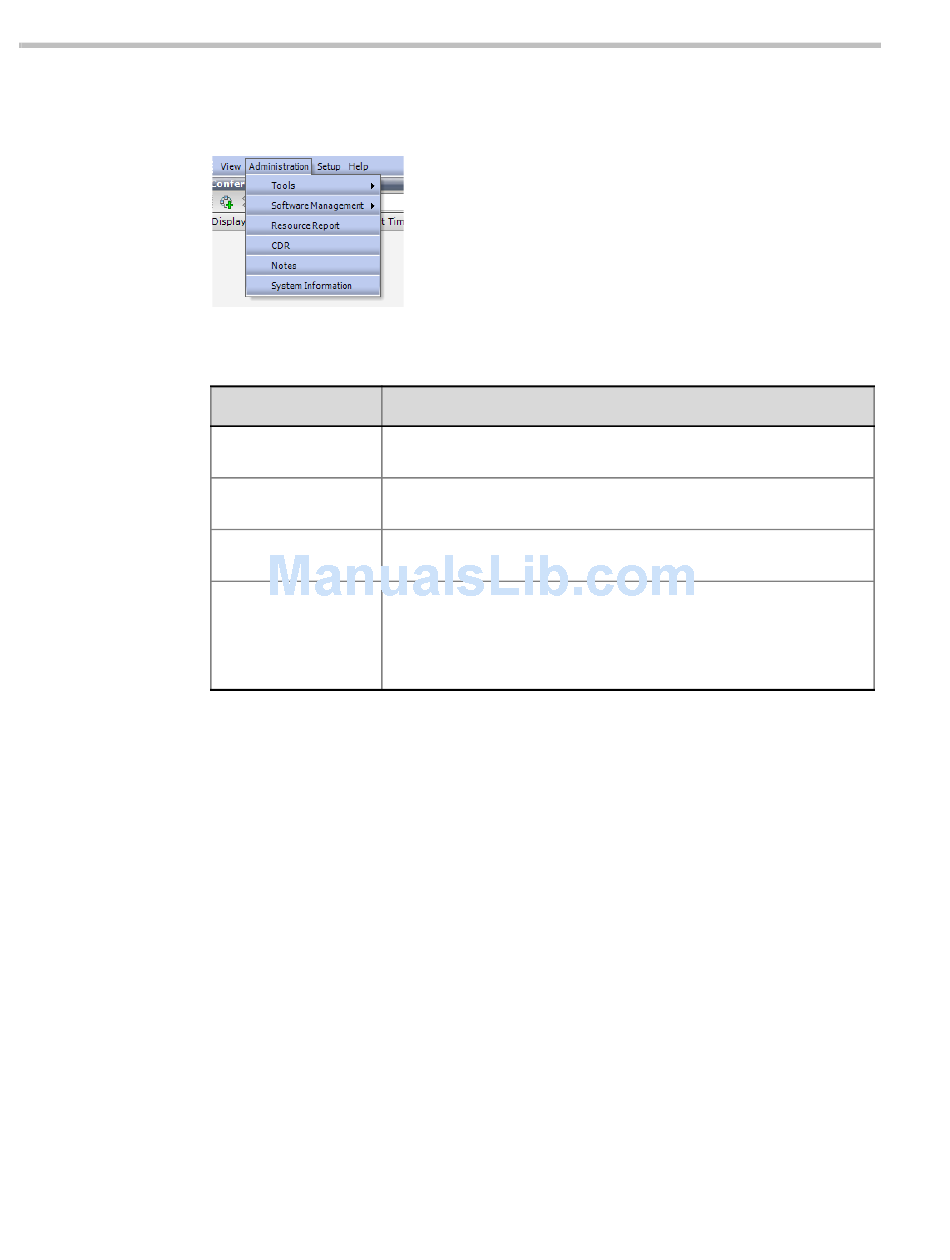

In the main toolbar, click Administration > Resource Report.
For each resource type, the Resource Report includes the following columns:
Table 21-8 Resource Report Fields Parameters
Column
Type
Occupied
Free
Total
30 licensed HD720p30 resources.
6 of its 30 HD720p30 resources allocated as Audio = 72 Audio resources (6x12).
All 72 Audio resources free (green).
The remaining 24 HD720p30 resources allocated as Video resources.
3 of the 24 HD720p30 resources are occupied (red) while the remaining 21 are free.
Description
The type of audio/video resources available. This applies to both
AVC and SVC-based endpoints (and resources).
The number of MCU resources that are used by connected AVC and
SVC-based participants or reserved for defined participants.
The number of MCU resources available for connecting AVC and
SVC-based endpoints.
The Total column displays the total number of resources of that type
as configured in the system (Occupied and Free). This number
reflects the current audio/video port configuration (for AVC and SVC-
based conferencing). Any changes to the resource allocation will
affect the resource usage displayed in the Resource Report.
