Polycom® RealPresence Collaboration Server (RMX) 1500/2000/4000 Administrator's Guide
•
•
H-66
the SIP server may be down, or any other reason the affects the connection between the
RMX or the SIP Server to the network.
Registered - the conferencing entity is registered with the SIP Server.
Partially Registered - This status is available only in Multiple Networks configuration,
when the conferencing entity failed to register to all the required Network Services (if
more than one Network Service was selected for Registration). The registration status
with each SIP Server can be viewed in the Properties - Network Services dialog box of each
conferencing entity.

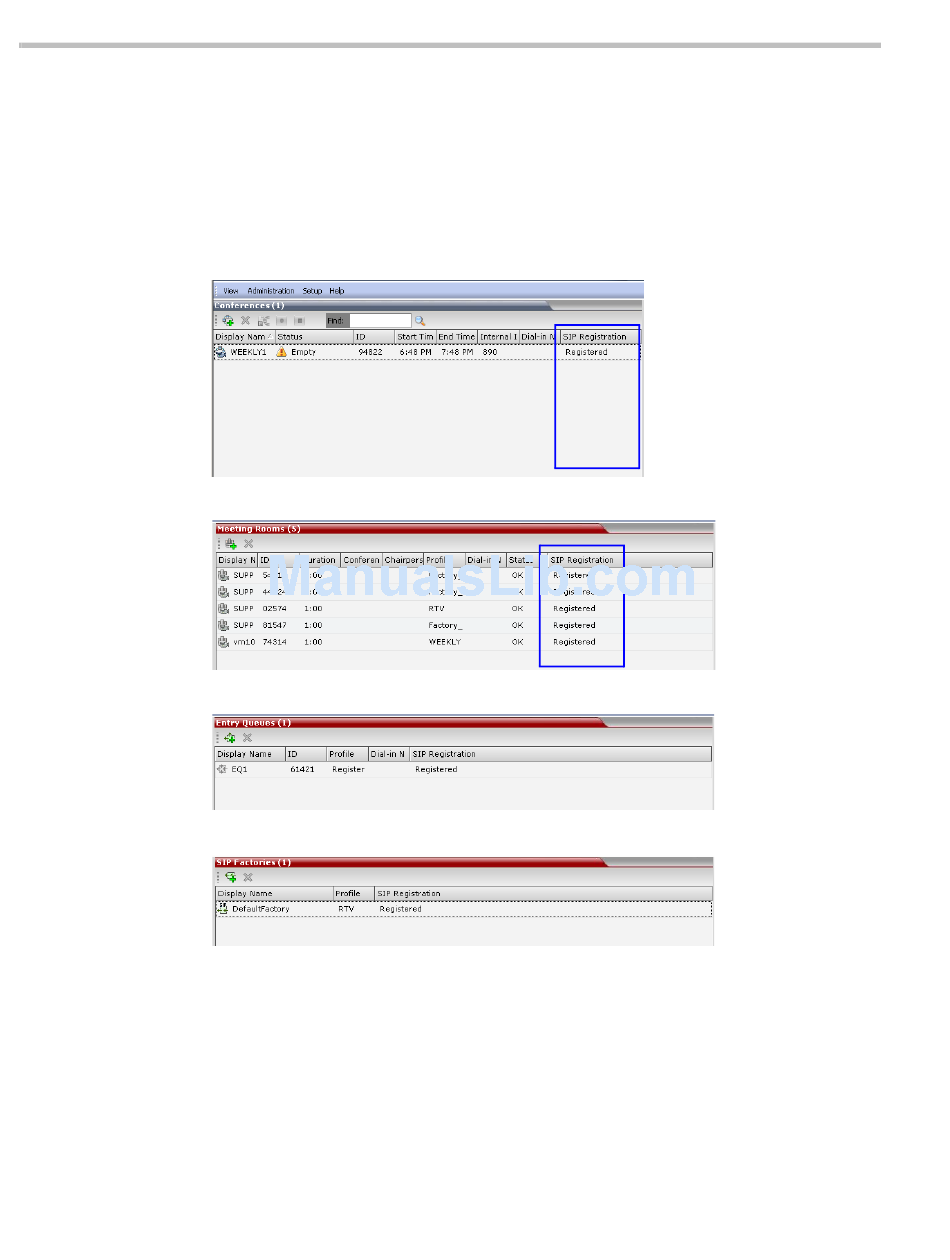

Figure H-3 Ongoing Conferences list - SIP Registration
Figure H-4 Meeting Rooms list - SIP Registration
Figure H-5 Entry Queues list - SIP Registration
Figure H-6 SIP Factories list - SIP Registration
Polycom, Inc.
