Polycom® RealPresence Collaboration Server (RMX) 1500/2000/4000 Administrator's Guide
Table 16-21
Flag / Value
LAN_REDUNDANCY
MULTIPLE_SERVICES = YES

Hardware Monitor Indications

When LAN Redundancy is enabled on the RMX, LAN 2 port is Active. With LAN
redundancy, when LAN LEDs are lit they indicate that a physical connection of the cables is

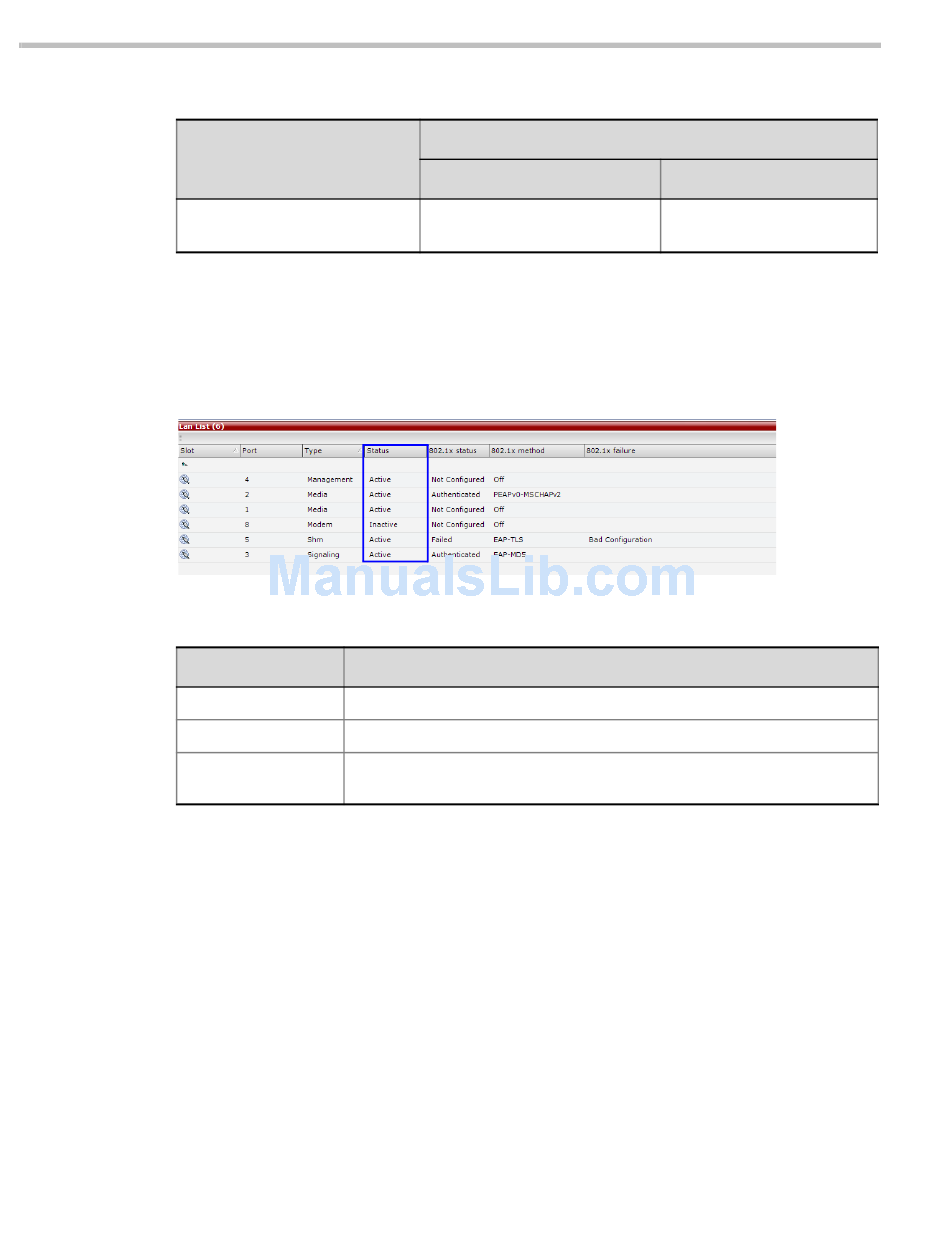

present but does not indicate their activity status. In the Hardware Monitor pane the Lan List
displays the RMX LAN ports together with their Status indication.
Table 16-22
Status
Active
Inactive
Standby
16-40
RMX 1500 / 4000 - Signaling and Management Redundancy - System Flags
Port Usage
LAN 2 / MNG B
= YES
RealPresence Collaboration Server (RMX) 1500/RealPresence Collaboration Server
(RMX) 2000/RealPresence Collaboration Server (RMX) 4000 RTM LAN LED Indications
Description
The LAN port cable is connected.
The LAN port cable is not connected.
The LAN Redundancy option is enabled and this LAN port is the redundant
and in standby mode. In case of failure, this port becomes active.
) LAN 3 / MNG
(RMX 1500
Management
(RMX 1500)
Management
