Horizontal Striping - Polycom RealPresence 4000 Administrator's Manual

Horizontal Striping

Horizontal Striping is used by the RMX in order to prevent cropping and preserve the
aspect ratio of video for all Telepresence Modes.
Cropping
Cropping is used by the RMX in order to preserve the aspect ratio of video for all Telepresence
Modes.
Cropping is controlled by the ITP_CROPPING system flag in the system configuration,
providing different cropping options according to the endpoints participating in the
Telepresence conference.
By default, the flag is set to ITP. In this mode, the area to be stripped is cropped equally
from the top and the bottom (as shown in the example below). For more details, see
"Modifying System Flags" on page 21-1.
Gathering Phase with ITP Room Systems
When a conference is configured to include a Gathering Phase, only one endpoint name is
displayed for the ITP room in the connected participant list of the Gathering slide. The ITP
room endpoint with the suffix "1" in its name receives the Gathering slide.
Aspect ratio for standard endpoints
Standard endpoints (non-ITP) receive video from the RMX with the same aspect ratio as that
which they transmitted to the RMX.
Skins and Frames
When Telepresence Mode is enabled, no Skin is displayed and the system uses a black
background. Frames around individual layout windows and the speaker indication are
disabled.
Polycom, Inc.

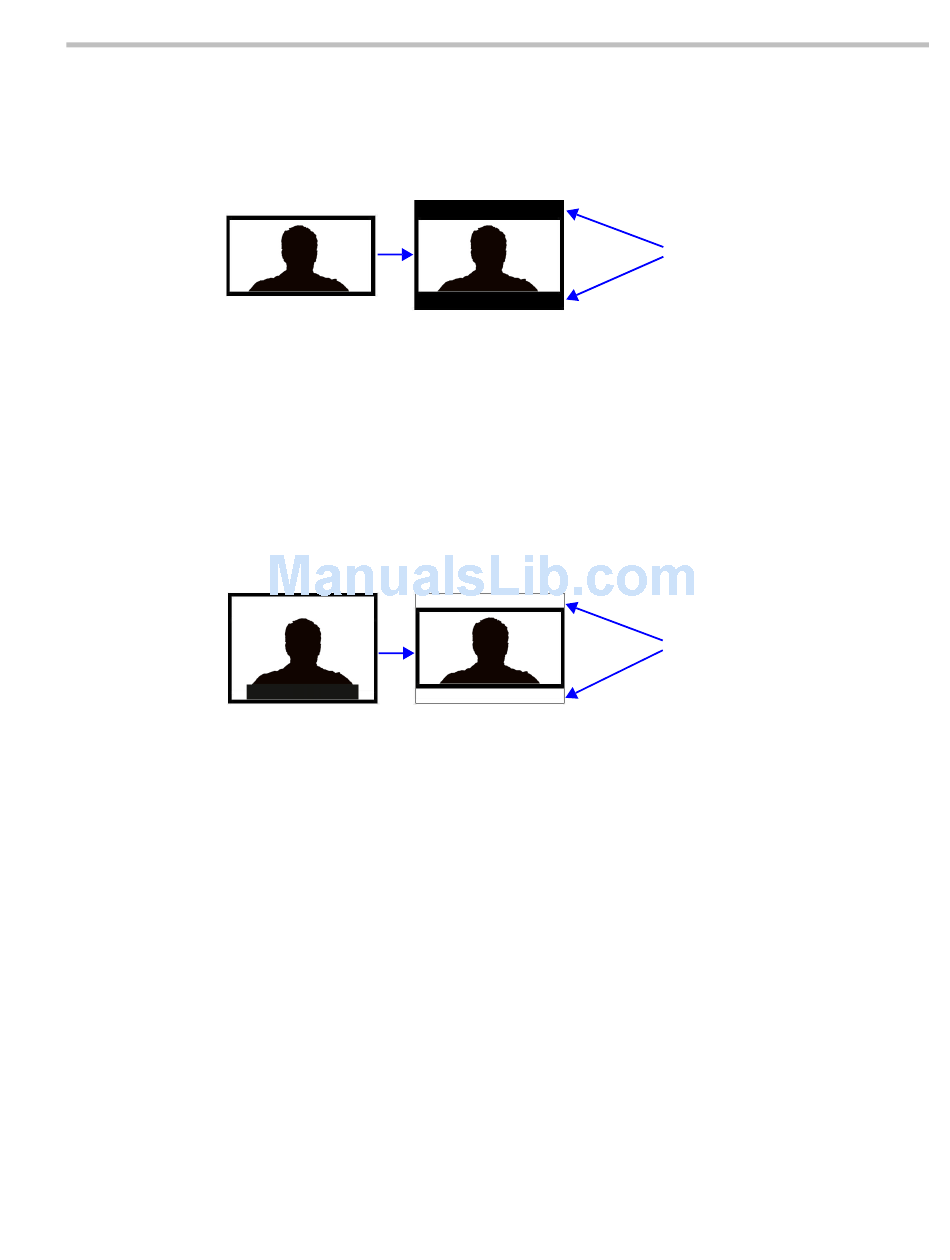

16:9
