In Figure 4-3:
•
•
•
•
•

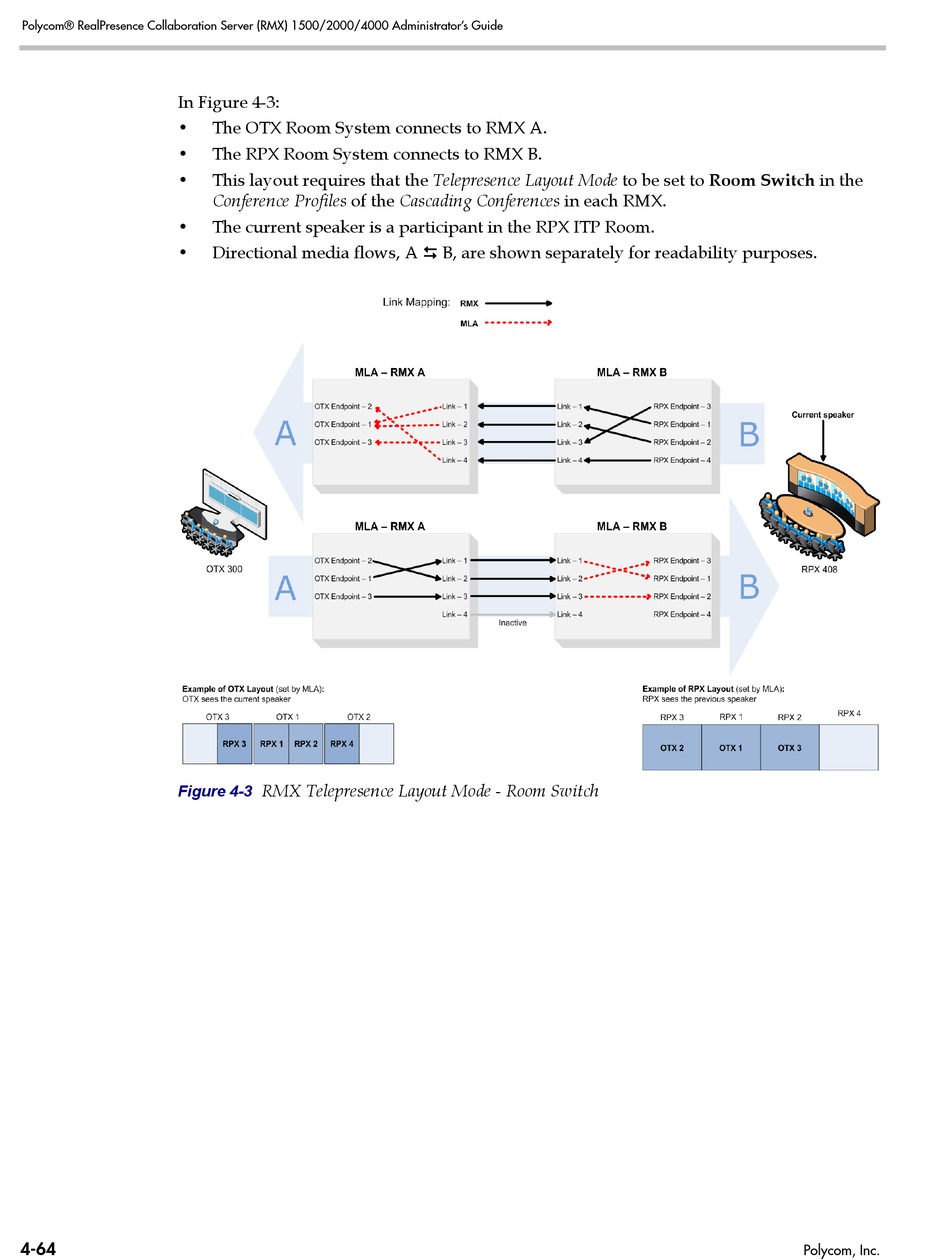

Figure 4-3
4-64
The OTX Room System connects to RMX A.
The RPX Room System connects to RMX B.
This layout requires that the Telepresence Layout Mode to be set to Room Switch in the
Conference Profiles of the Cascading Conferences in each RMX.
The current speaker is a participant in the RPX ITP Room.
Directional media flows, A  B, are shown separately for readability purposes.
RMX Telepresence Layout Mode - Room Switch
