Table 16-33
RTM IP Port
LAN 2
LAN 3
Connecting the cables to the RTM LAN:
If RTM LAN or RTM ISDN cards are not installed on the RMX, they must be installed before
connecting the additional network cables for media and signaling.
Table 16-34
RTM IP Port
LAN 1
LAN 2
If one LAN port per RTM ISDN/ RTM LAN card is used, up to two different IP Network
Services can be defined - one for each installed RTM LAN/RTM ISDN cards.

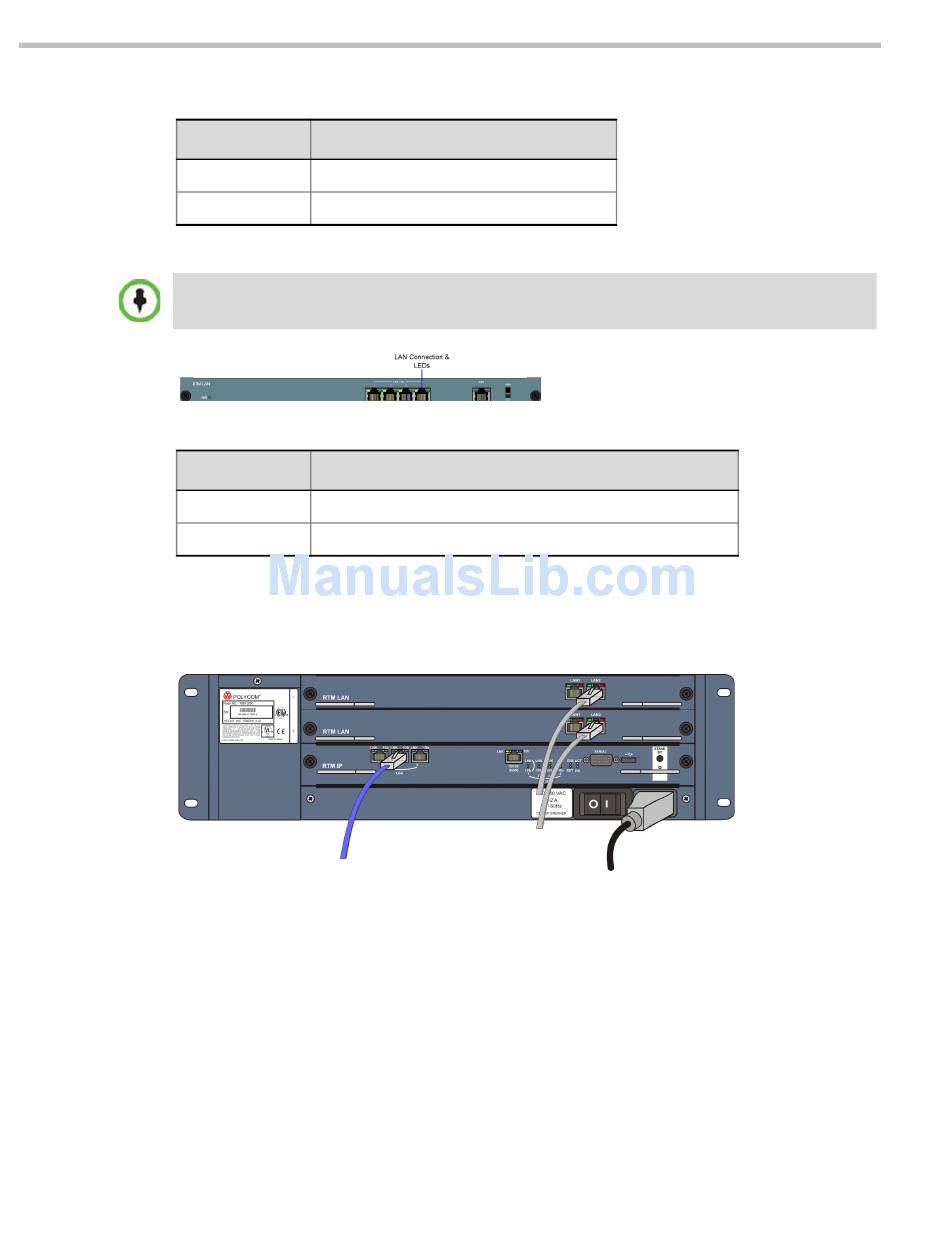

Figure 16-7 shows the cables connected to the RealPresence Collaboration Server
(RMX) 2000 rear panel, when two RTM LAN cards are installed providing IP connectivity.
Figure 16-7
16-62
LAN Connections to the RTM IP
Description
Management
Modem
LAN Connections to the RTM LAN
Description
Signaling and Media - first Network Service (optional)
RealPresence Collaboration Server (RMX) 2000 Rear Panel with RTM LAN Cables
