Table 4-16
Number of
Endpoints

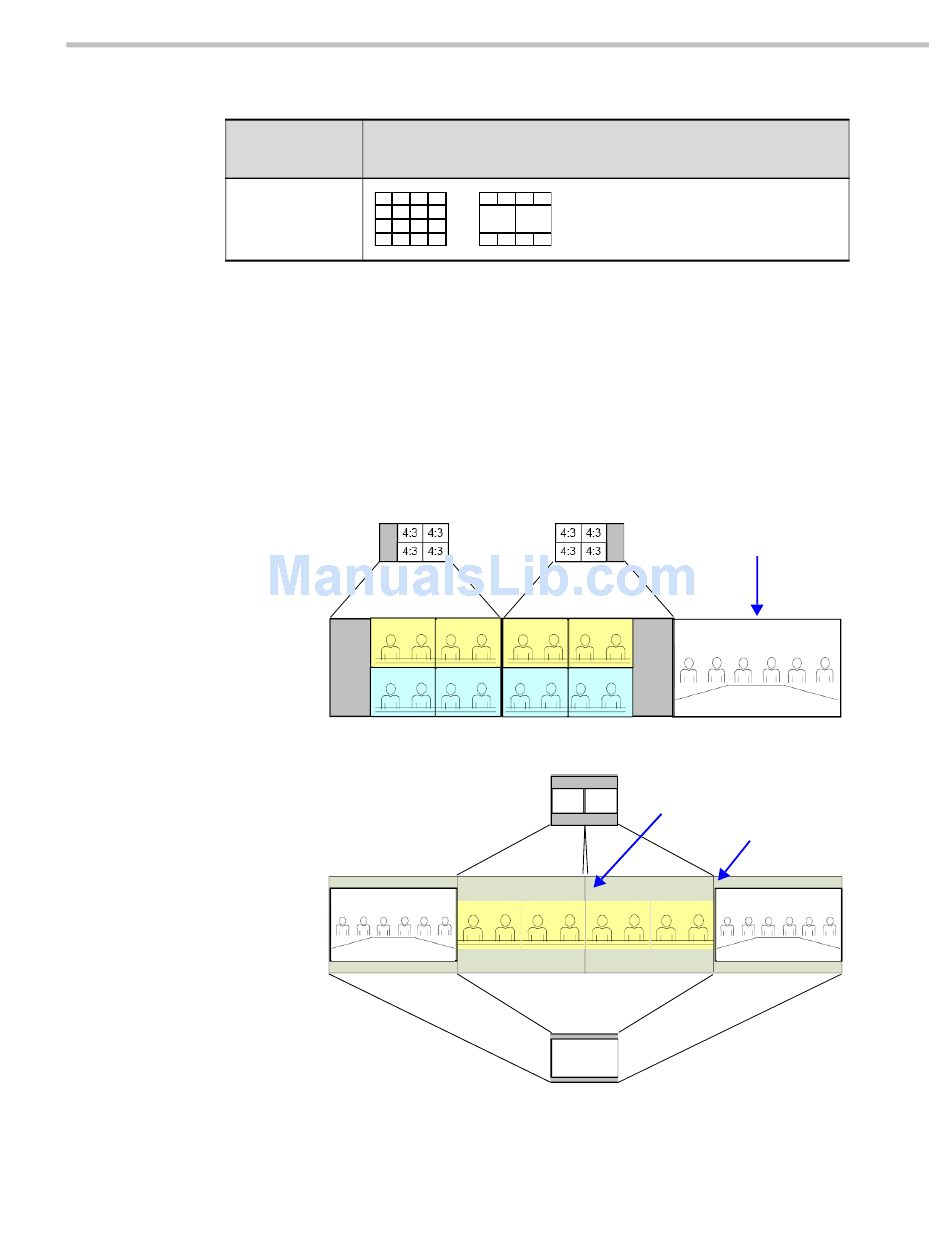

The following example illustrates the use of standard and additional RMX Telepresence
layouts when connecting four Room Systems as follows:
•
•
Figure 4-2
Polycom, Inc.
OTX / RPX – Additional Video Layouts (Continued)
Layouts
10+
Two OTX Room Systems
— 2 active cameras
— 6 screens
Two RPX Room Systems
— 8 cameras
— 8 screens
OTX View
3 Screens 16:9
RPX View
4 Screens 4:3
RPX and OTX Room System connected using the RealPresence Collaboration Server
(RMX) 1500/2000/4000
Chapter 4-Additional Conferencing Information
Standard OTX Layout
Camera Zoomed Out
Alignment of back-projectors
eliminates the display of the
vertical blank areas of the
video layouts
4-59
