Interoperability

This topic describes the new and enhanced features for interoperability among Autodesk products using
Autodesk Exchange files (ADSK), as well as sharing content online using Autodesk

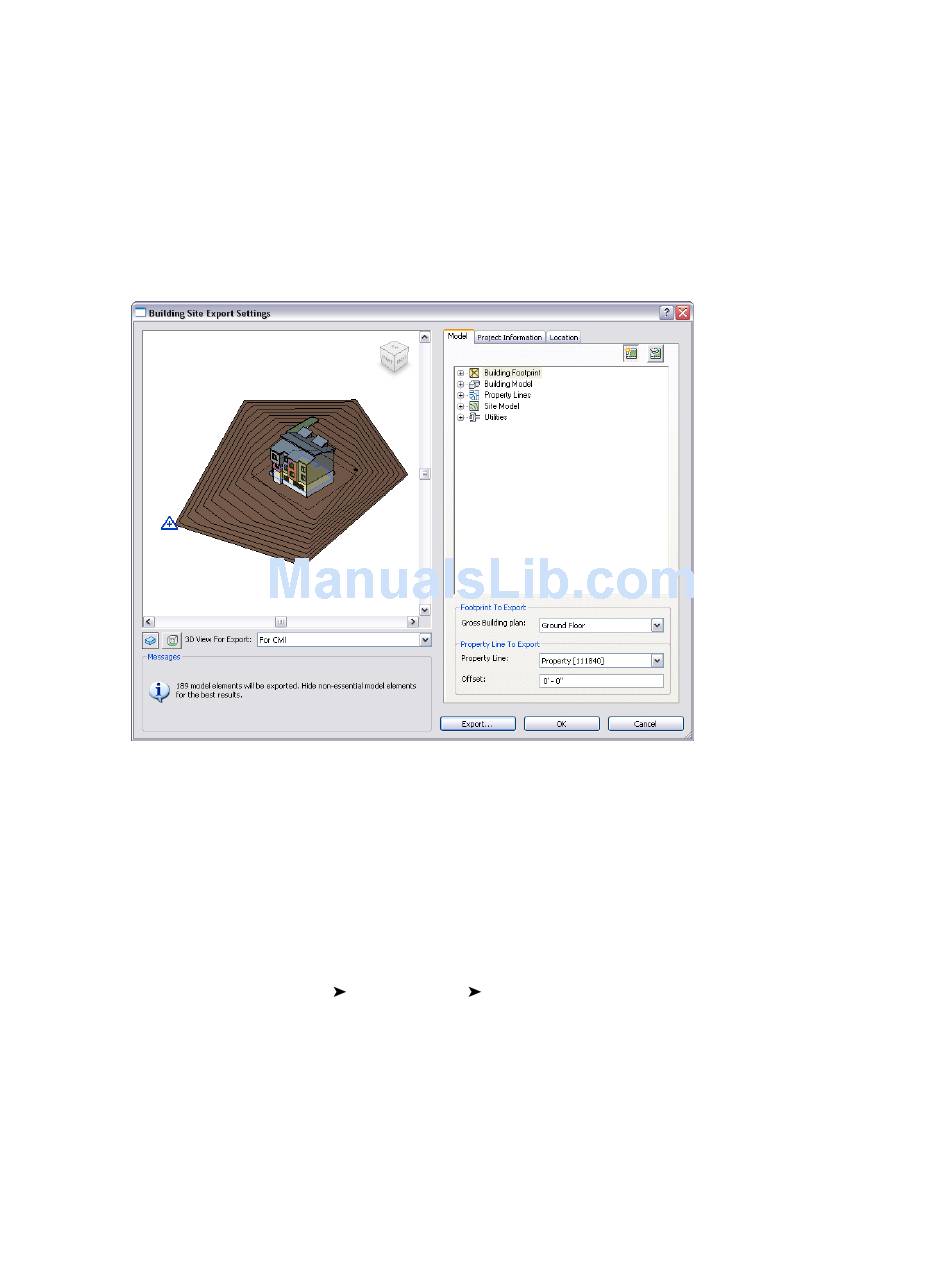

Exporting Building Sites

Architects can design buildings using Revit Architecture, then export the digital design geometry (including
the BIM data) to civil engineers who are designing the building site using AutoCAD
that accept Autodesk Exchange (ADSK) files.
See Exporting Building Sites

Project Base Points and Survey Points

In Autodesk Revit Architecture 2010, a project base point and a survey point are now available in Revit
projects to support the export of building sites to civil engineering applications.
The coordinates of the survey point are exported from the building site to the ADSK file. They correctly
orient the building geometry in the coordinate system of the civil engineering application.
By default, the project base point and the survey point are hidden in views. To turn on their visibility:
1 Open the view in which you want to see the project base point and the survey point.
2 Click View tab
3 On the Model Categories tab under Visibility, expand the Site category.
4 Under Site, select Project Base Point and Survey Point.
5 Click OK.
See Project Base Points and Survey Points
