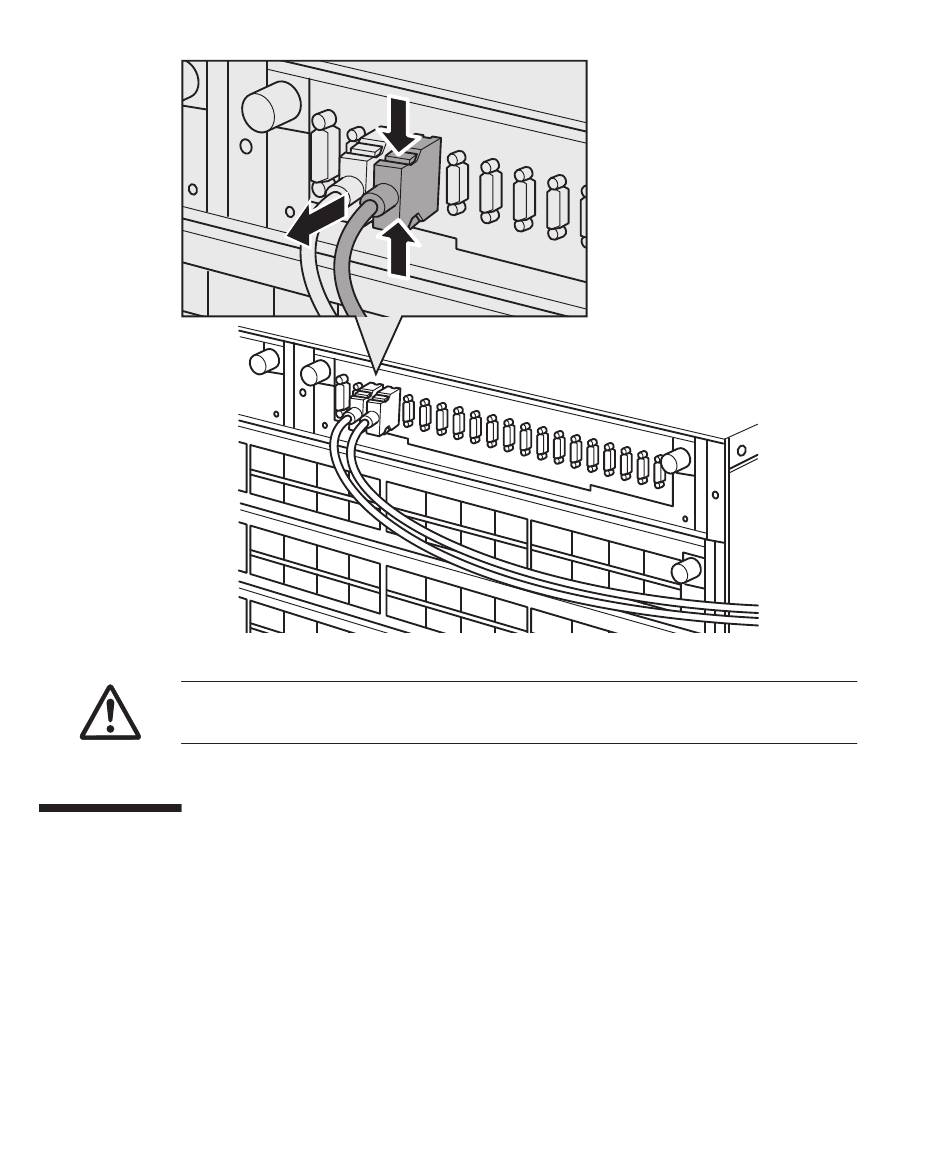

Figure 22-5 Removing the XSCF BB Control Cable (Crossbar Box)
Caution - Do not pull the XSCF BB control cable itself. Otherwise, the cable may be
damaged and the system may fail to operate normally.
22.4 Installing the XSCF BB Control Cable
This section describes the procedure for installing the XSCF BB control cable.
Affix labels to the XSCF BB control cable.
1.
Affix the labels filled out in step 2 of
Cable" to the XSCF BB control cable
522 Fujitsu SPARC M12-2/M12-2S Service Manual ･ January 2023
1
2
1
"22.3 Removing the XSCF BB Control
(Figure 22-6).
