to the CMUL.
Labels showing the connection destinations are affixed on the PCIe cables and
CMUL (A in
labels.
After connecting the PCIe cable connectors, route the PCIe cables through the
cable guide inside the server.
Note - The connection destinations of the PCIe cables are shown on the label affixed to the
CMUL. (A in
Note - When connecting a PCIe cable connector, push it in all the way and make sure that it
does not come off.

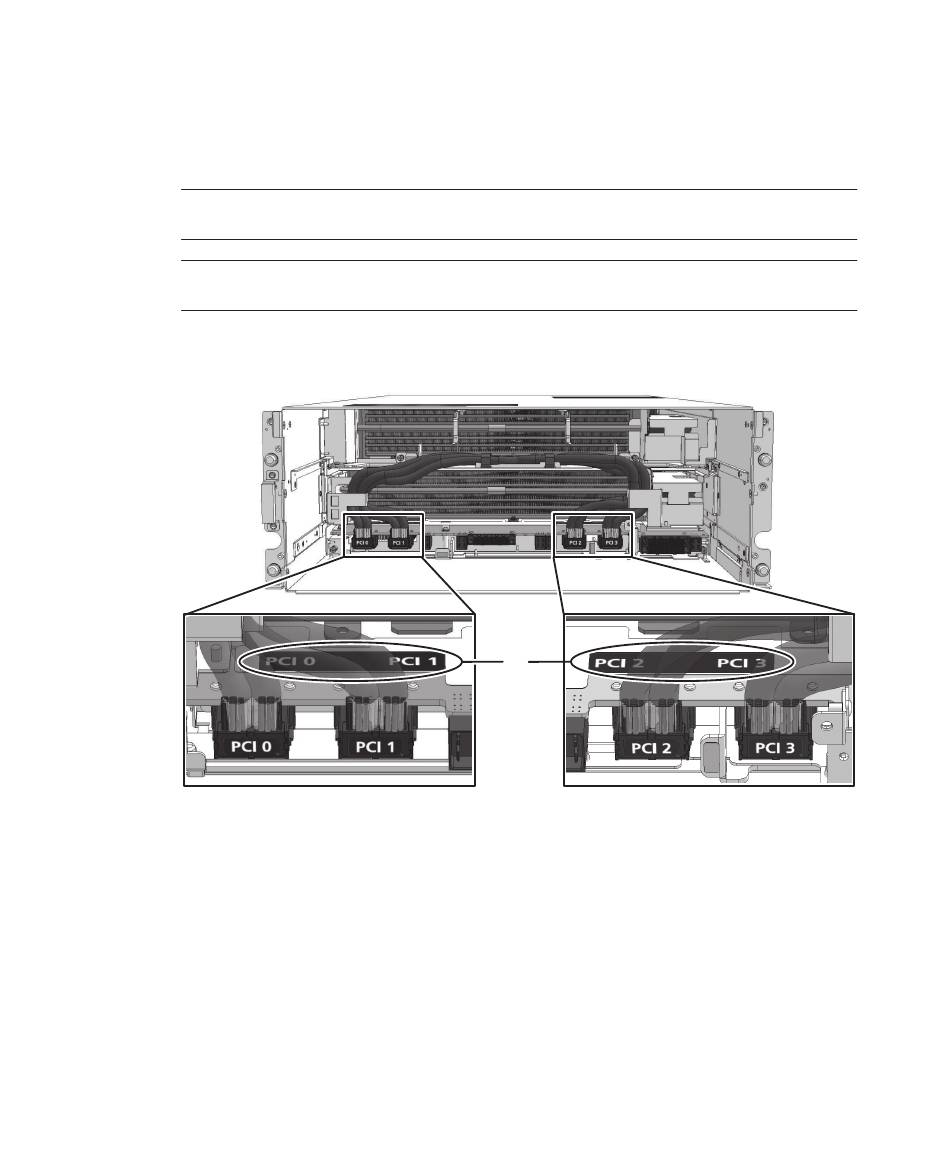

Figure 17-26 Connecting the PCIe Cables and CMUL
5. Insert the CMU filler unit.
Insert the CMU filler unit into the server. Hook the claws at the bottom of the
CMU filler unit (A in
When the CMUU is mounted, this step is not necessary.
456 Fujitsu SPARC M12-2/M12-2S Service Manual ･ January 2023
Figure 17-26). Connect the PCIe cable connectors according to these
Figure 17-26)
Figure 17-27) onto the top cover of the CMUL.
A
