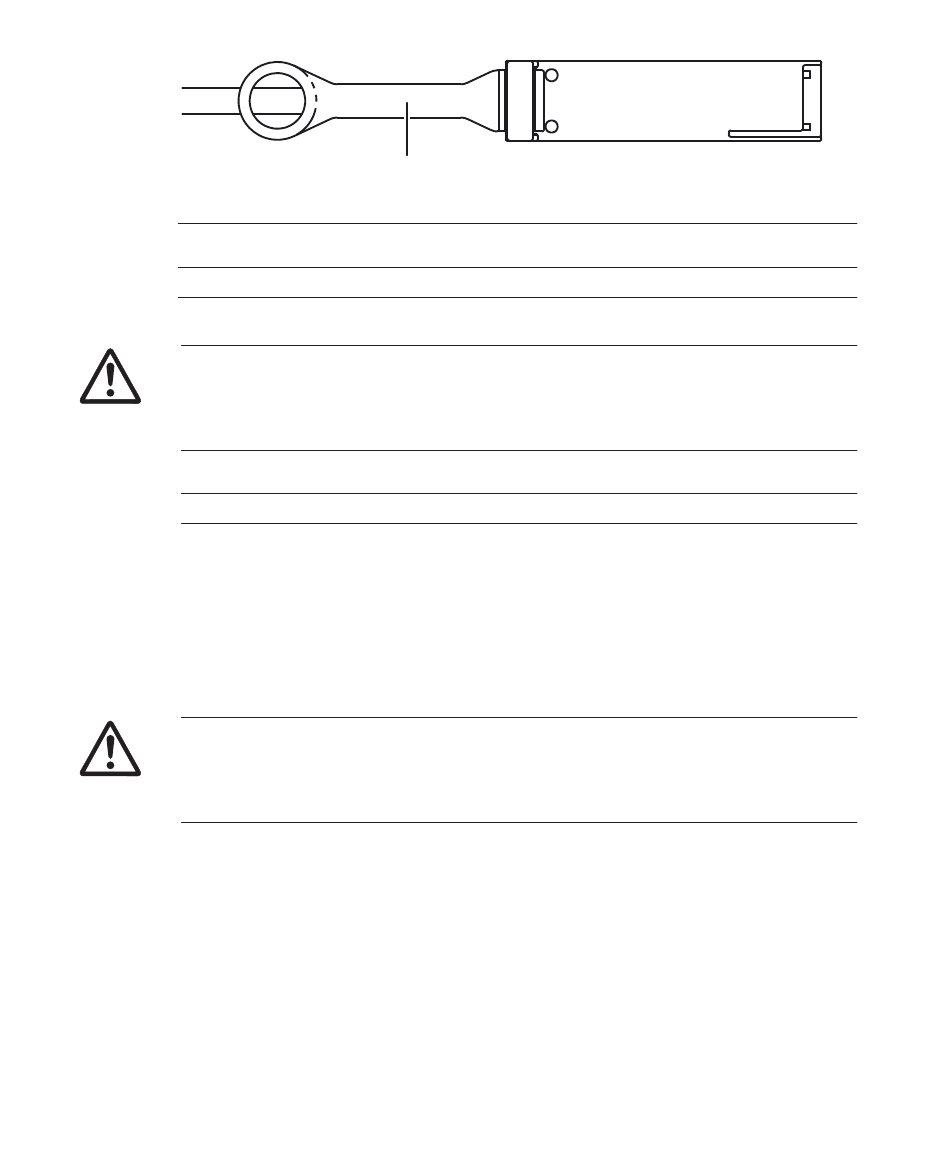

Figure 19-10 Crossbar Cable (Electrical) Shape and Pull-Tab
Number in
Figure
1
Caution - When connecting the crossbar cable, do not hold the pull-tab but hold the
connector part to insert it into the port for the connection, and push in the connector
part. If you hold the pull-tab when connecting the crossbar cable, it may become
impossible to remove the cable from the XBU.
Note - On the crossbar box side, you may connect the crossbar cables with the power on.
3. Bundle the crossbar cables.
Bundle the crossbar cables with the hook-and-loop fastener.
Confirm that the crossbar cables are correctly and firmly connected.
4.
With the crossbar cables connected to their ports, push in each cable while
holding the joint (A in
cable connector.
Caution - A loose crossbar cable connection may, on rare occasions, cause an error
due to poor connection. After connecting a crossbar cable, push it in again so that it is
tightly in place to prevent any improper connection. Do not hold only the cable when
performing the work at this time. Otherwise, the cable may bend out of shape.
498 Fujitsu SPARC M12-2/M12-2S Service Manual ･ January 2023
(1)
Description
Pull-tab
Figure 19-11 and Figure 19-12) at the base of the crossbar
