18.4.2 Removing the BPU
This section describes the procedure for removing the BPU from the server.
Note - The system shown in the illustrations provided herein is the SPARC M12-2S. Unless
otherwise noted, the locations of the fixing screws and other details are common to the
SPARC M12-2.
Enable the removal of the BPU from the server.
1.
Loosen the four fixing screws of the BPU.

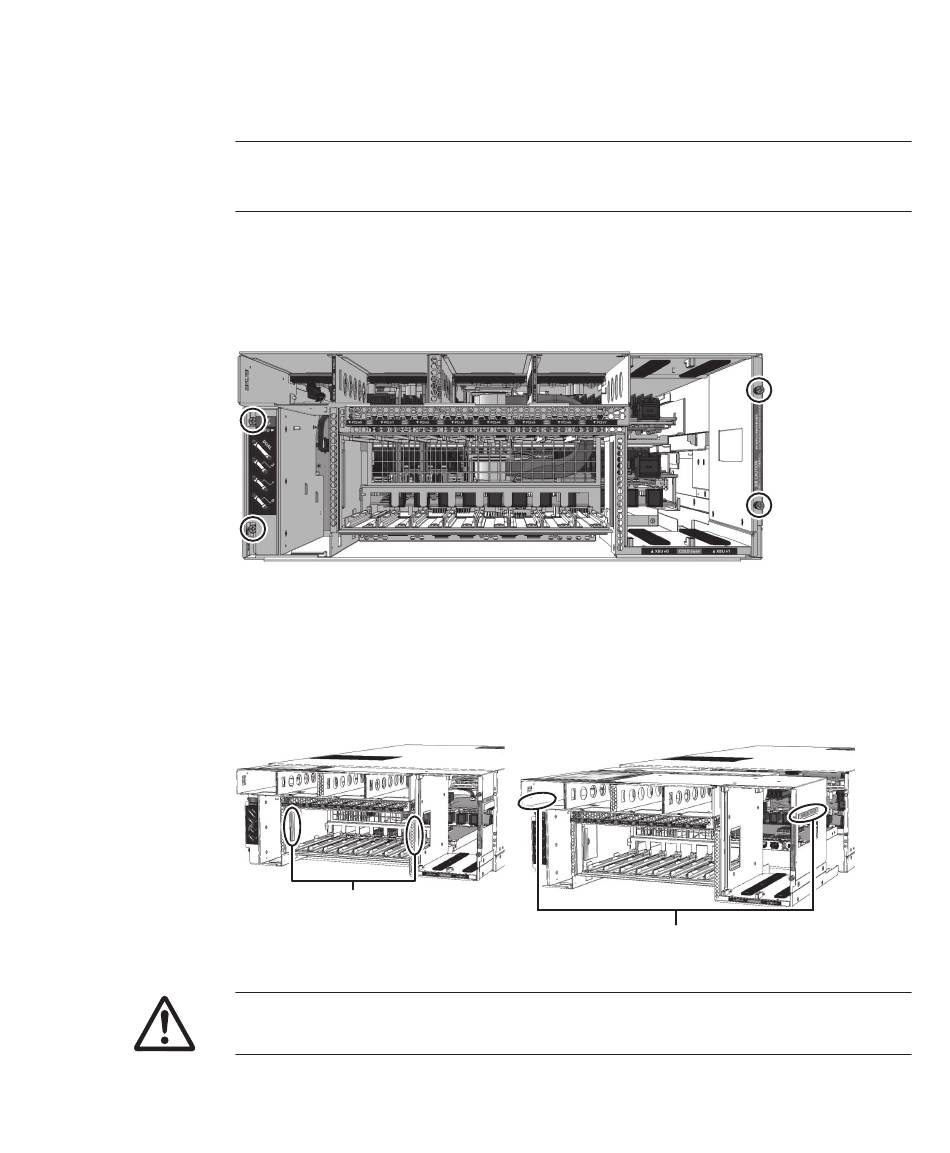

Figure 18-12 Fixing Screws of the BPU
Remove the BPU.
2.
Hold the BPU by the parts indicated in A of
the server. When you see the "HANDLING POSITON" labels on the sides of the
BPU, hold the BPU by its sides and remove it from the server.
Figure 18-13 Removing the BPU
Caution - Remove the BPU slowly. Applying great shock to the server may cause the
CMU to fall and be damaged.
A
