12.4 Installing a PCIe Card
This section describes the procedure for installing a PCIe card.
Note - Unless otherwise noted, the model used in the figures shown in the following
procedures is the SPARC M12-2S.
12.4.1 Installing a PCIe Card or PCIe Card Filler
This section describes the procedure for installing a PCIe card or PCIe card filler in
the PCICS.
Note - Perform this work with the PCIe card cover and the fixing bracket of the PCIe card
removed from the PCICS.
Install the PCIe card (A in
1.

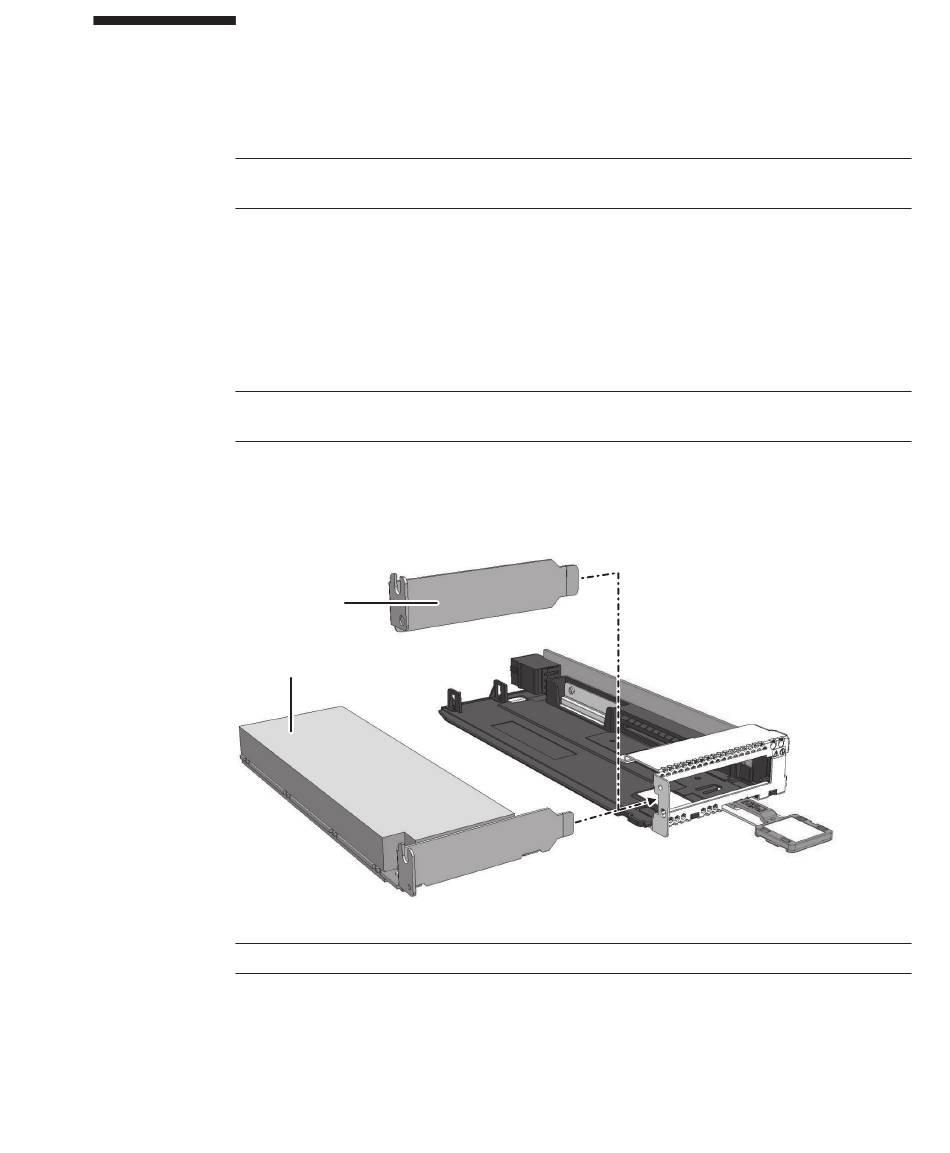

Figure 12-9 Installing a PCIe Card or PCIe Card Filler
Note - Install a PCIe card filler in the PCICS when you have removed a PCIe card.
Secure the PCIe card or PCIe card filler.
2.
Install the fixing bracket (A in
screw.
B
A
Figure 12-9) or the PCIe card filler (B in
Figure 12-10) to the PCICS, and secure it with the
Chapter 12 Maintaining PCIe Cards
Figure 12-9).
