Application Wiring

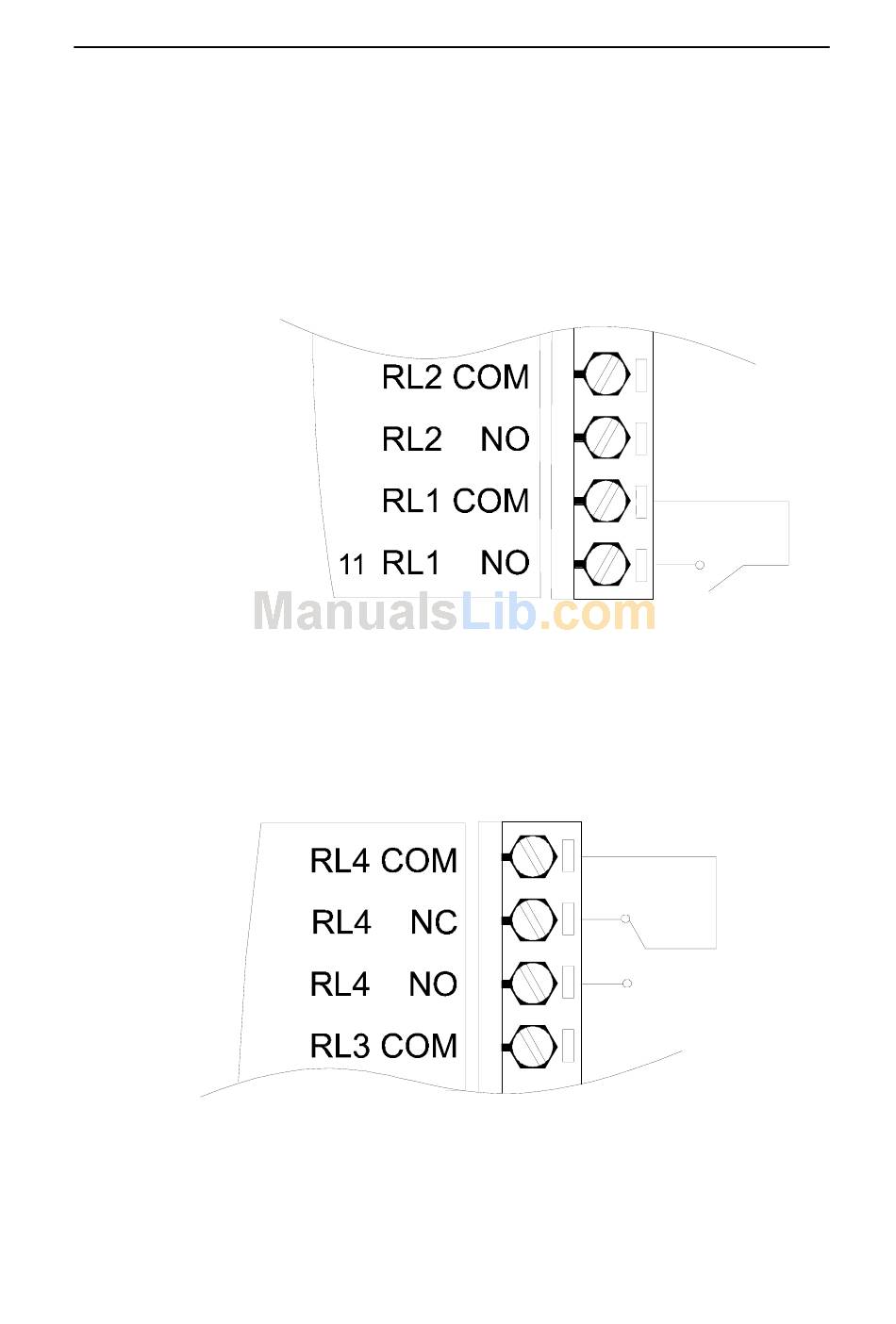

The following diagrams are examples of how to connect Form A
and Form C relay output applications to your ADAM modules.
Figure 3-63 ADAM-4060 Form A Relay Output Wiring Diagram
Figure 3-64 ADAM-4060 Form C Relay Output Wiring Diagram
Chapter
Chapter 3 I/O Modules 3-67
