Advantech Data Acquisition Modules ADAM 4000 User Manual page 250

4050, 4051, 4052, 4053, 4055,
4056S, 4056SO, 4060, 4068, 4069
$AA2
Example command: $452 (cr)
response:
The command asks the digital I/O module at address 45h to
send its configuration data.
The digital I/O module at address 45h responds with baud
rate 9600, no checksum function and module supports for
Advantech protocol.
Baud Rate Code (Hex)

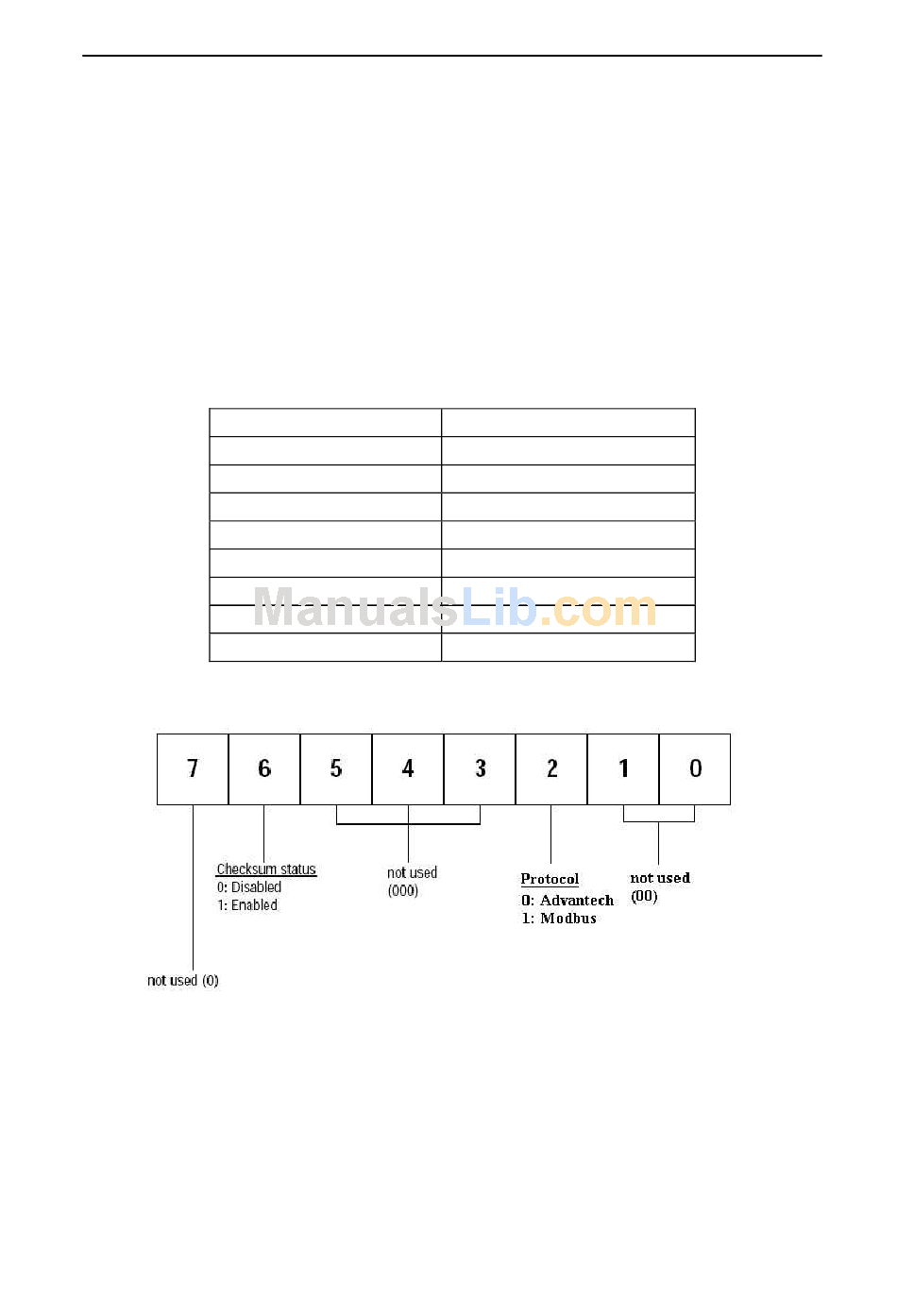

Figure 7-2 Data format for FF (8-bit parameter)
7-15 ADAM 4000 Series User's Manual
!45400600 (cr)
Table 7-2 Baud Rate Codes
03
04
05
06
07
08
09
0A
Baud Rate
1200 bps
2400 bps
4800 bps
9600 bps
19.2 kbps
38.4 kbps
57.6 kbps
115.2 kbps
