3.18 ADAM-4060/4068 Relay Output Module

The ADAM Relay Output Module is a low-cost alternative to SSR
modules. The ADAM-4060 Relay Output Module provides four relay
channels; two of them are Form A, and two are Form C. The ADAM-
4068 Relay Output Module provides eight channels. Four of the
channels are Form A, and four are Form C. These two modules are
excellent for ON/OFF control or low-power switching applications and
they are able to support the safety value setting.
ADAM-4060

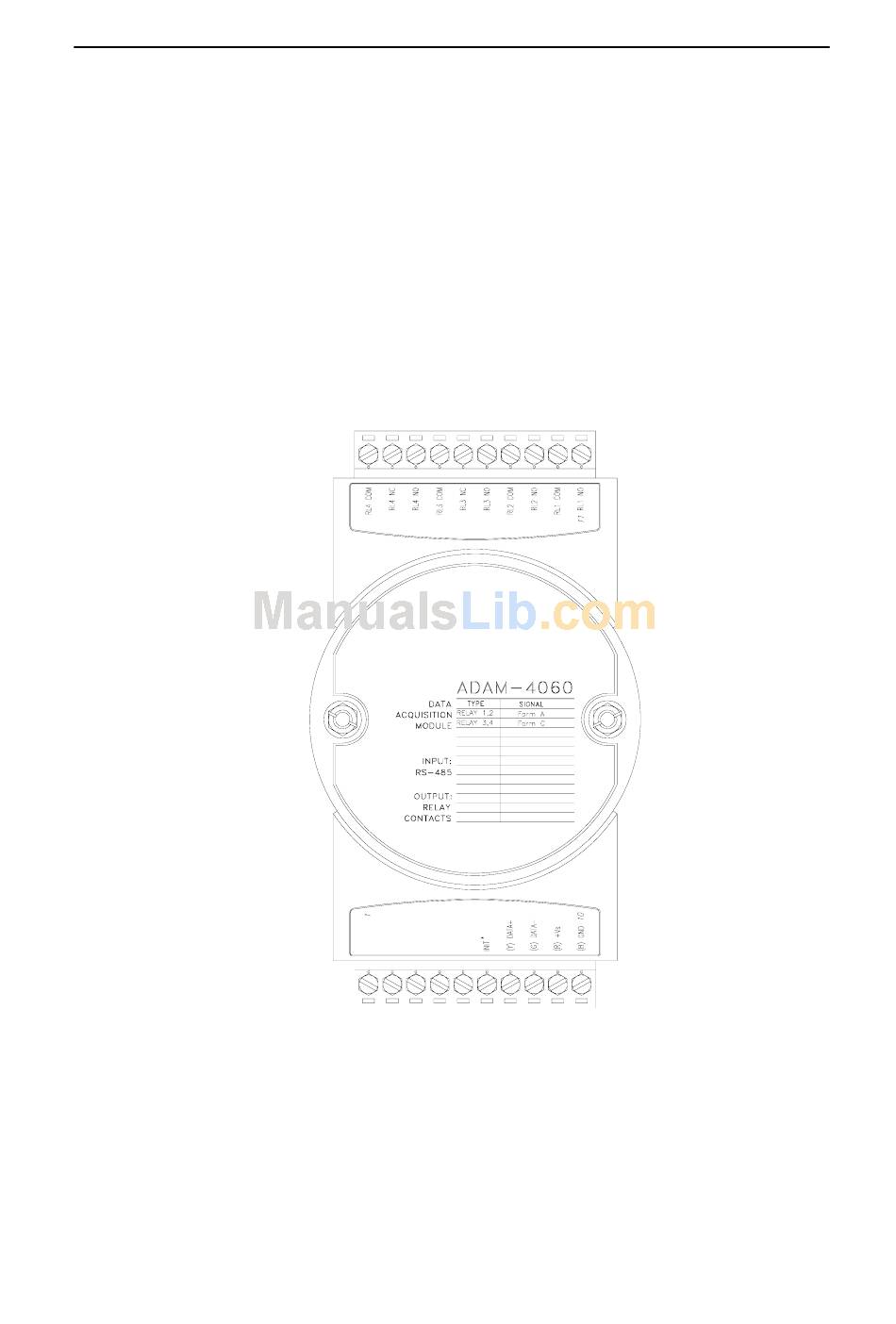

Figure 3-61 ADAM-4060 4-channel Relay Output Module
Contact rating for Form A and Form C: (Resistive)
AC
DC
4-channel Relay Output Module
0.6 A @ 125 V
0.3 A @ 250 V
2 A @ 30 V
0.6 A @ 110 V
