3.16 ADAM-4056S 12-channel Sink Type Isolated Digital Output
Module
ADAM-4056S is a 12-channel sink type isolated digital output
module. The isolated channels are designed for digital output for
critical applications. Open collector outputs can provide from +5 to
+40 V
, and both ADAM ASCII and Modbus/RTU protocols are
DC
supported. LED indicators are used for status reading.

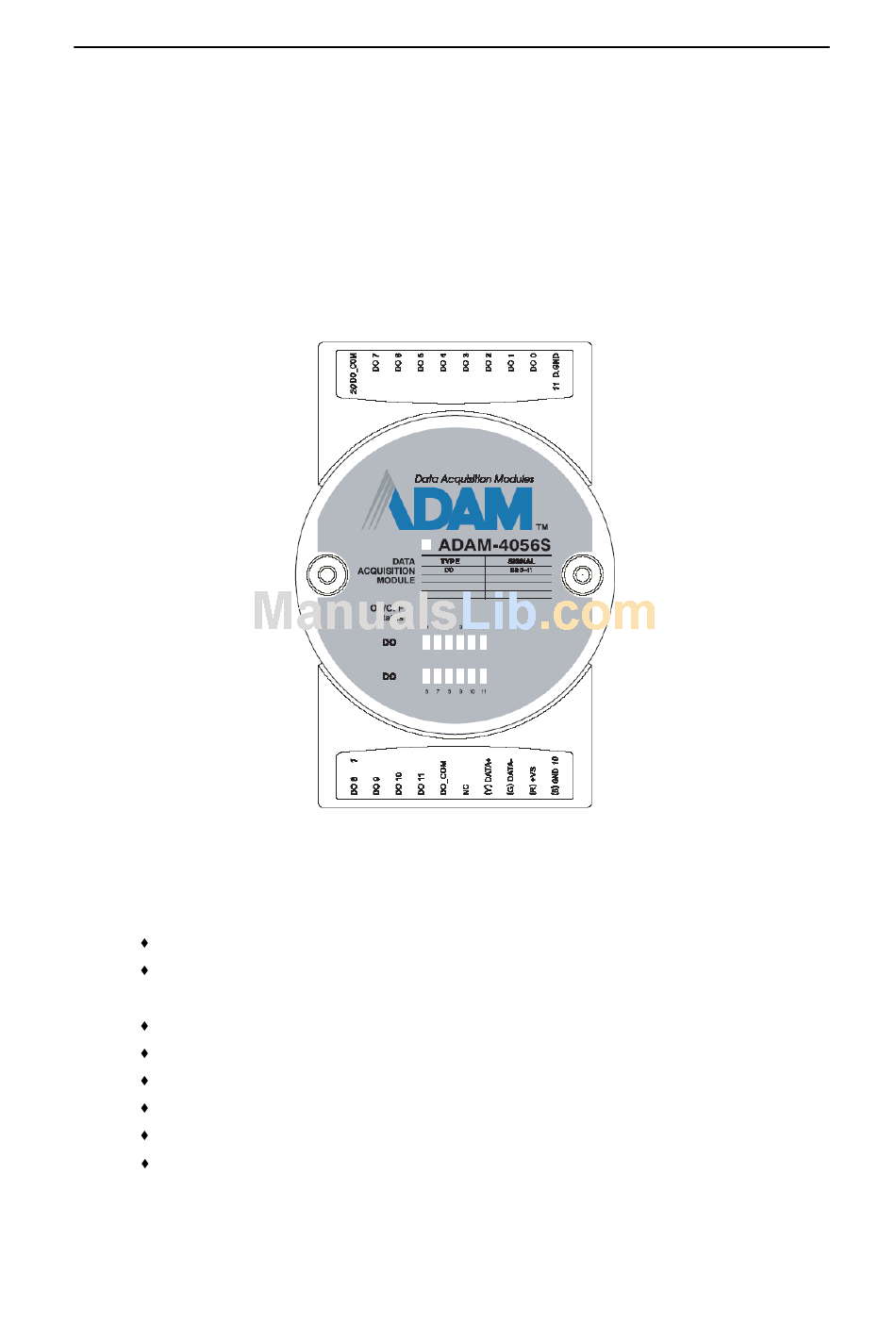

Figure 3-57 ADAM-4056S 12-channel Sink Type Isolated Digital Output Module
Technical Specification of ADAM-4056S
Number of Output Channel: 12
Digital Output:
Open Collector from +5 ~ +40V, 200mA max. load (Sink)
LED Indicator:
Power Consumption: 1 W @ 24V
Optical isolation: 5000 V
Supports Modbus/RTU protocol
I/O Connector Type: 10 pin plug-in terminal*2
Support Safety Value:
Force the DO channels to safety status when communication is in
time-out and over pre-defined period.
On:
Active,
Off:
Non-active
DC
DC
Chapter 3 I/O Modules 3-61
