I/O Modules
ADAM-4068

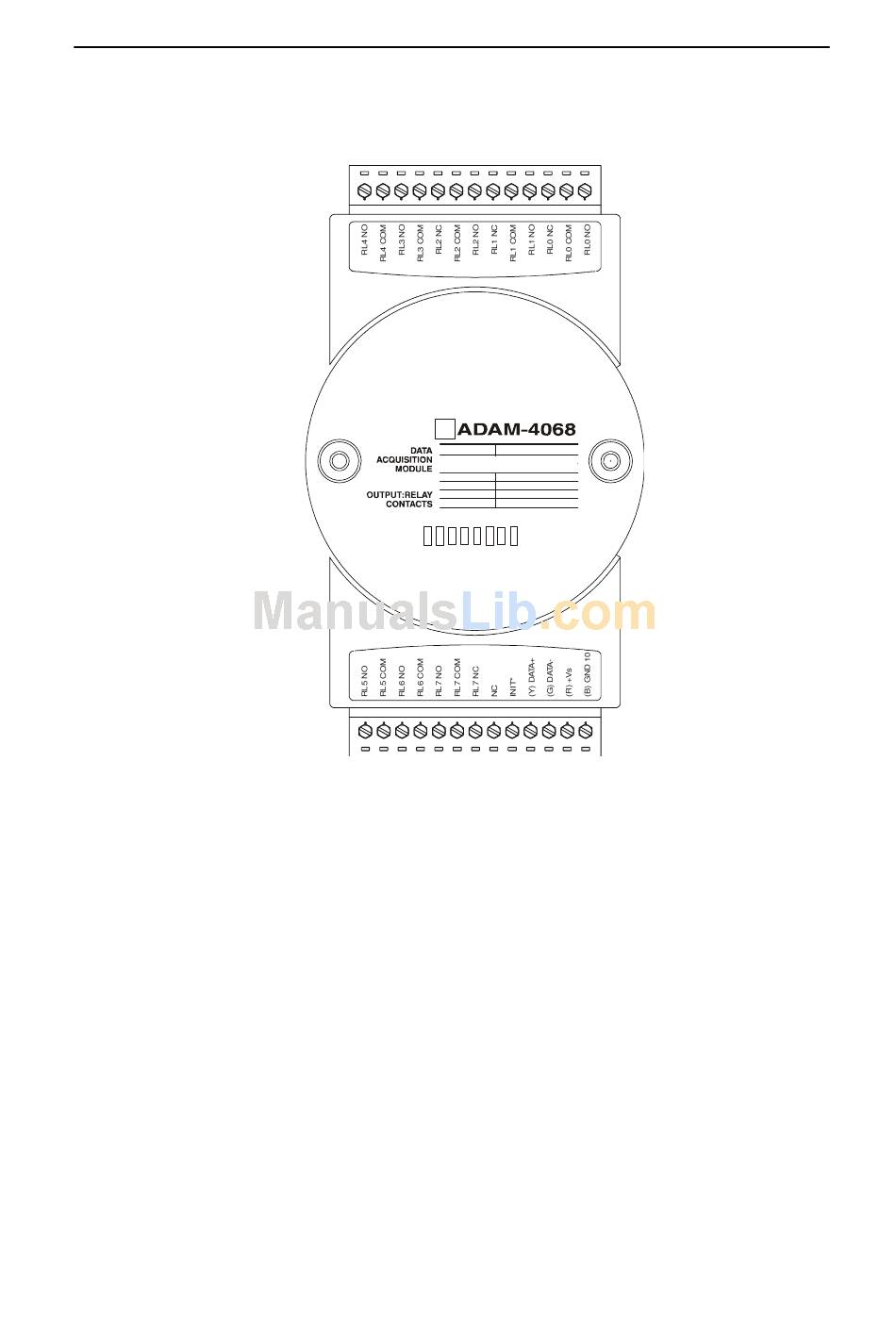

Figure 3-62 ADAM-4068 8-channel Relay Output Module
Contact Rating for Form A and Form C: (Resistive)
AC
DC
NOTICE: This electric current is under the load of resistance. If
you try to use the load of inductance, the electric current would be
less the above-mentioned value.
3-66 ADAM 4000 Series User's Manual
8-channel Relay Output Module
RELA Y
125 V @ 0.6 A
250 V @ 0.3 A
30 V @ 2 A
110 V @ 0.6 A
TYPE SIGNAL
R E L A Y 3,4,5,6 F o rm A
RELA Y 0,1,2,3 FORM A
R E L A Y 0,1,2,7 F o rm C
RELA Y 4,5,6,7 FORM C
0 1 2 3 4 5 6 7
