4080, 4080D
%AANNTTCCFF
Name Configuration command
Description Sets the address, input mode, baud rate, checksum status
and frequency gate time for a specified counter/frequency
module
Syntax %AANNTTCCFF (cr)
%
AA
address that you will access to.
NN
counter/frequency module. Range is from 00h to FFh.
TT
50h : counter input mode
51h : frequency measurement mode
CC
(Refer to Table 7-3 on next page).
Hexadecimal value
parameter represents the checksum status and frequency
gate time. The layout of the 8-bit parameter is shown in
Figure 7-3 below.
Bits 0, 1, 3, 4, 5 and 7 are not used and are set to 0.
(cr)

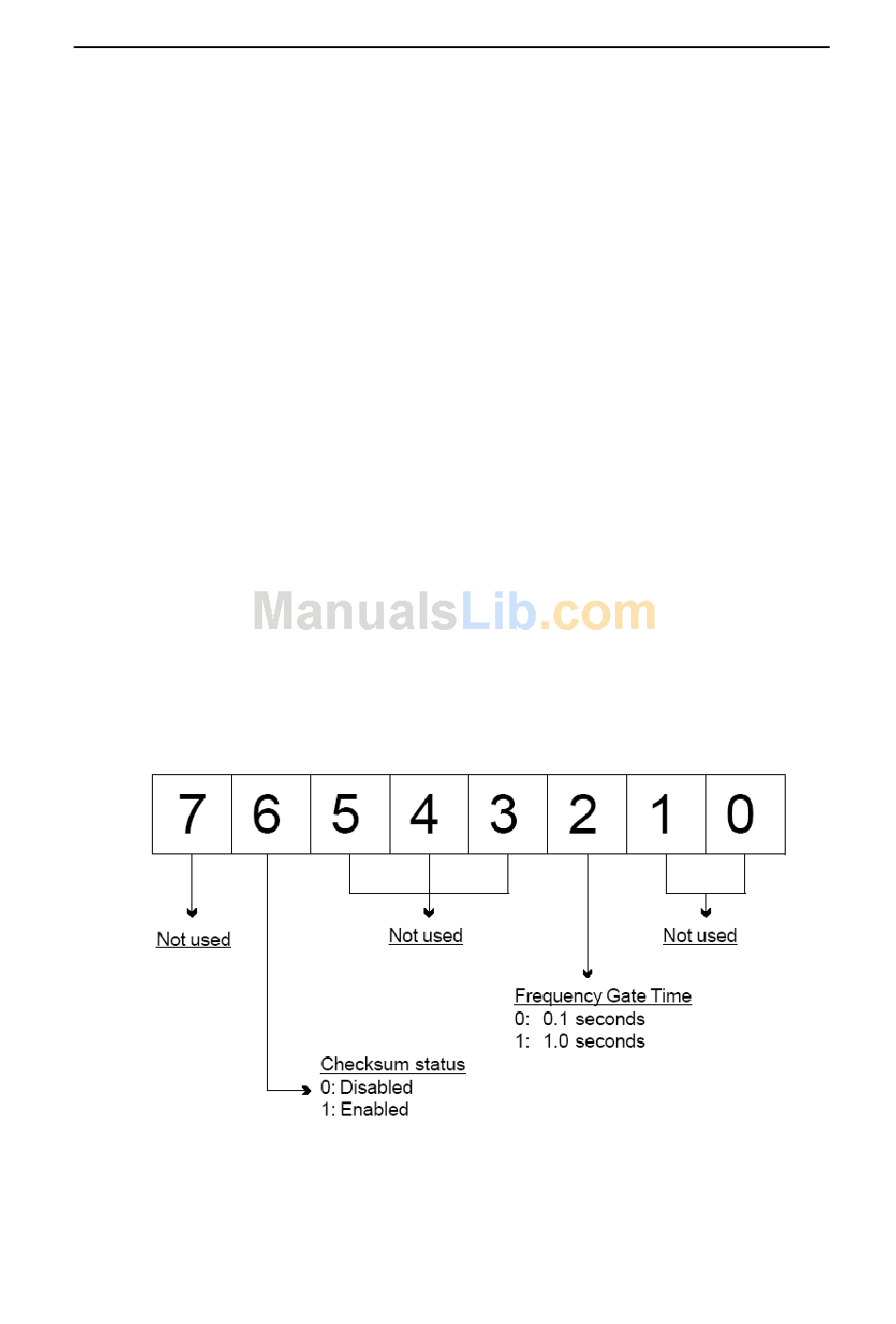

Figure 7-3 Data format for FF (8-bit parameter)
7-29 ADAM 4000 Series User's Manual
is a delimiter character.
(range 00-FF) represents the 2-character hexadecimal
represents the new hexadecimal address of the
represents the input mode.
represents the baud rate code.
is the terminating character, carriage return (0Dh).
FF which is converted to an 8-bit
