Advantech Data Acquisition Modules ADAM 4000 User Manual page 62

Isolation Voltage
Fault and over-voltage protection
Sampling Rate
Input Impedance
Accuracy
Power Consumption
I/O Connector Type
Table 3-4 Technical specification of ADAM-4018+
Application Wiring

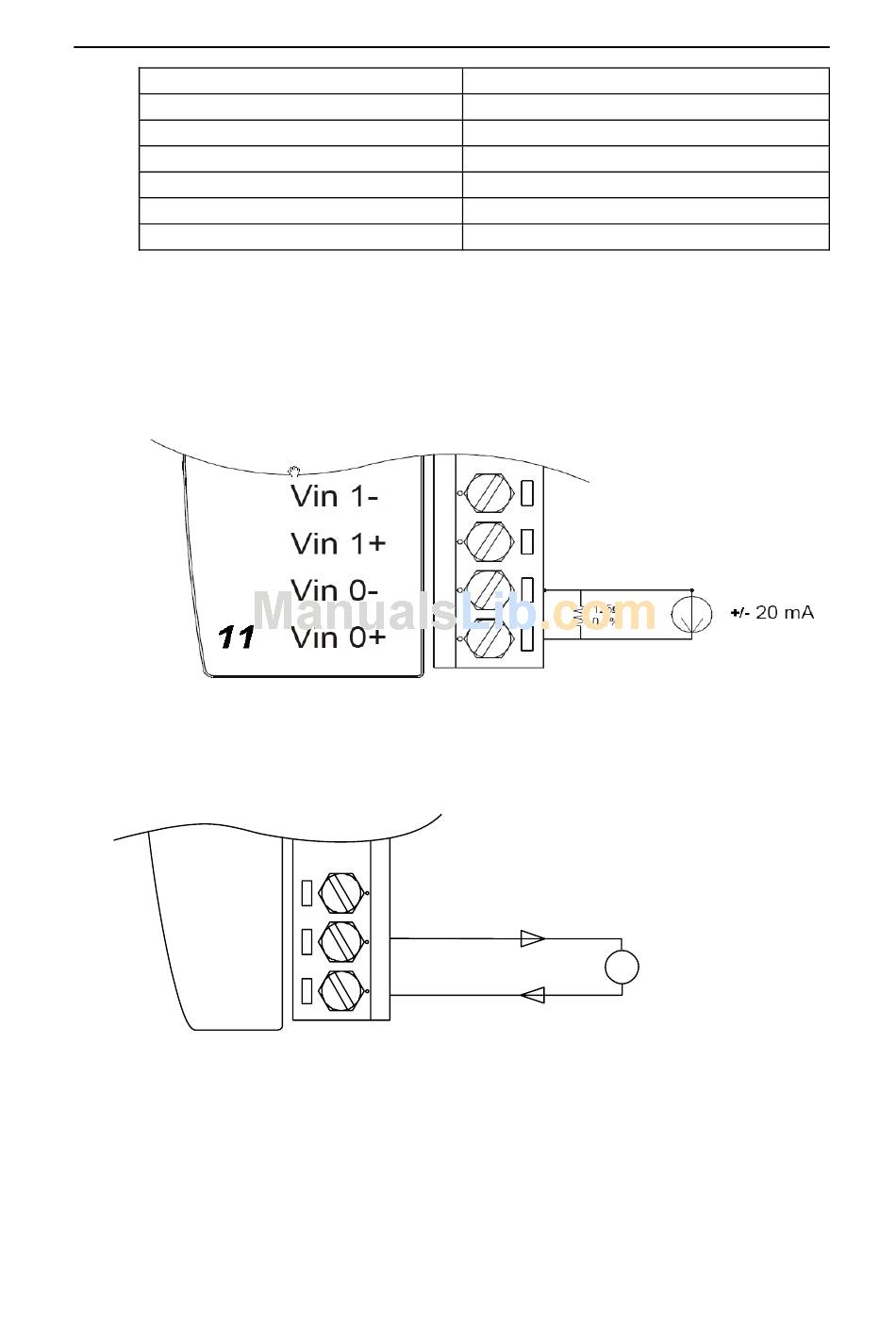

Figure 3-30 Current Input Wiring Diagram of ADAM-4017
Vin0-
Vin0+
11
Figure 3-31(a) ADAM-4017 Differential Input Wiring Diagram (Ch0 ~ Ch5)
3000 V
DC
Withstands over voltage up to ±35 V
10 sample/sec (total)
Voltage: 20 MΩ, Current: 120Ω
±0.1% or better
0.8 W @ 24V
DC
10 pin plug-in terminal
-
V
+
Chapter 3 I/O Modules 3-35
3
Chapter
mV/V
