ADAM-4011

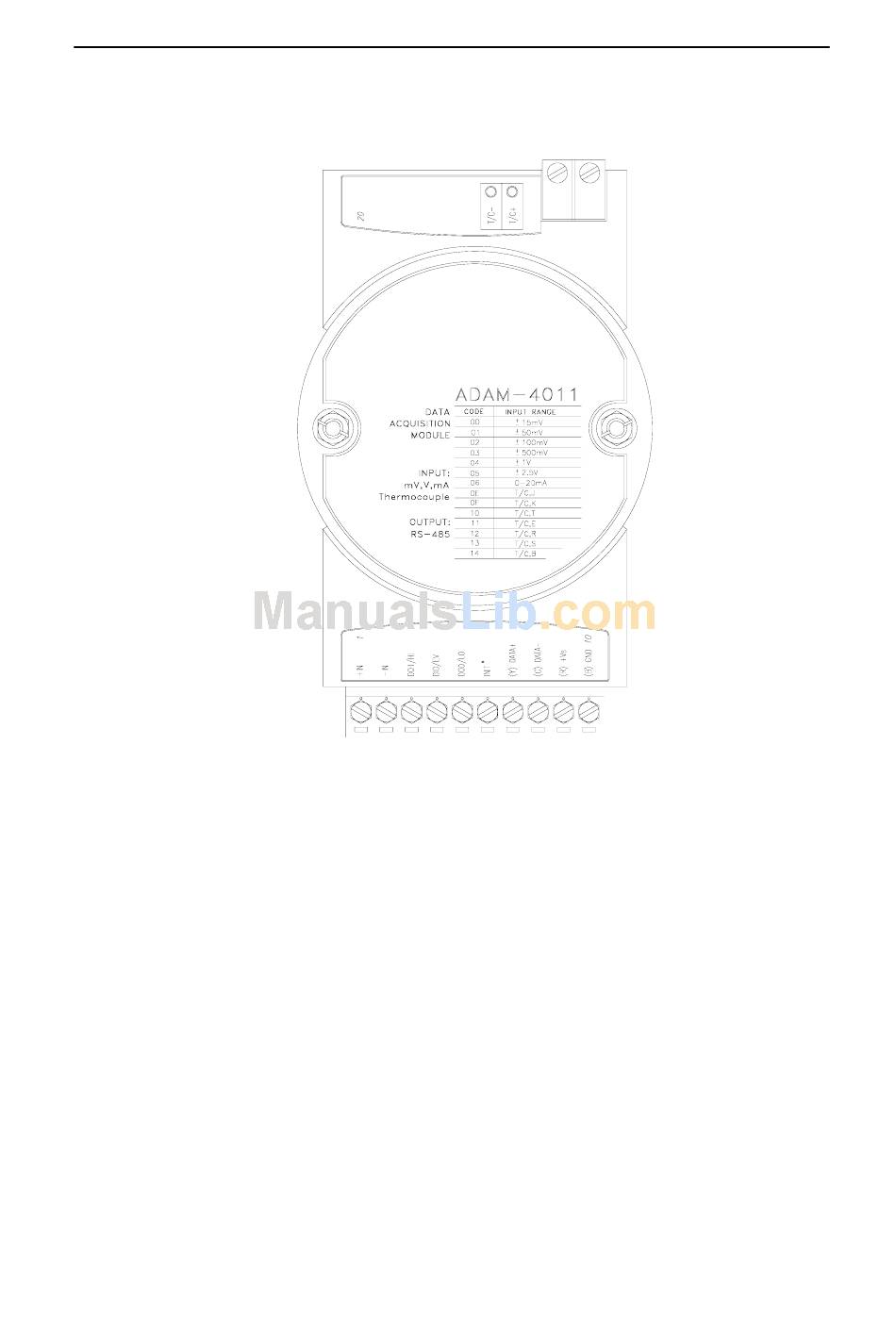

Figure 3-1 ADAM-4011 Thermocouple Input Module
Accepts:
- J, K, T, E, R, S and B thermocouples
- Millivolt inputs: ±15 mV, ±50 mV, ±100 mV and ±500 mV
- Volt inputs: ±1 V and ±2.5 V
- Current input: ±20 mA (Requires a 125
Two digital output channels and one digital input channel are provided.
Depending on the module's configuration setting, it can forward the
data to the host computer in one of the following formats:
- Engineering units (
- Percent of full-scale range (FSR)
- Two's complement hexadecimal
3-6 ADAM 4000 Series User's Manual
Thermocouple Input Module
C, mV, V or mA)
o
resistor)
