8.4

Explanation of the Values of the Main Board Settings

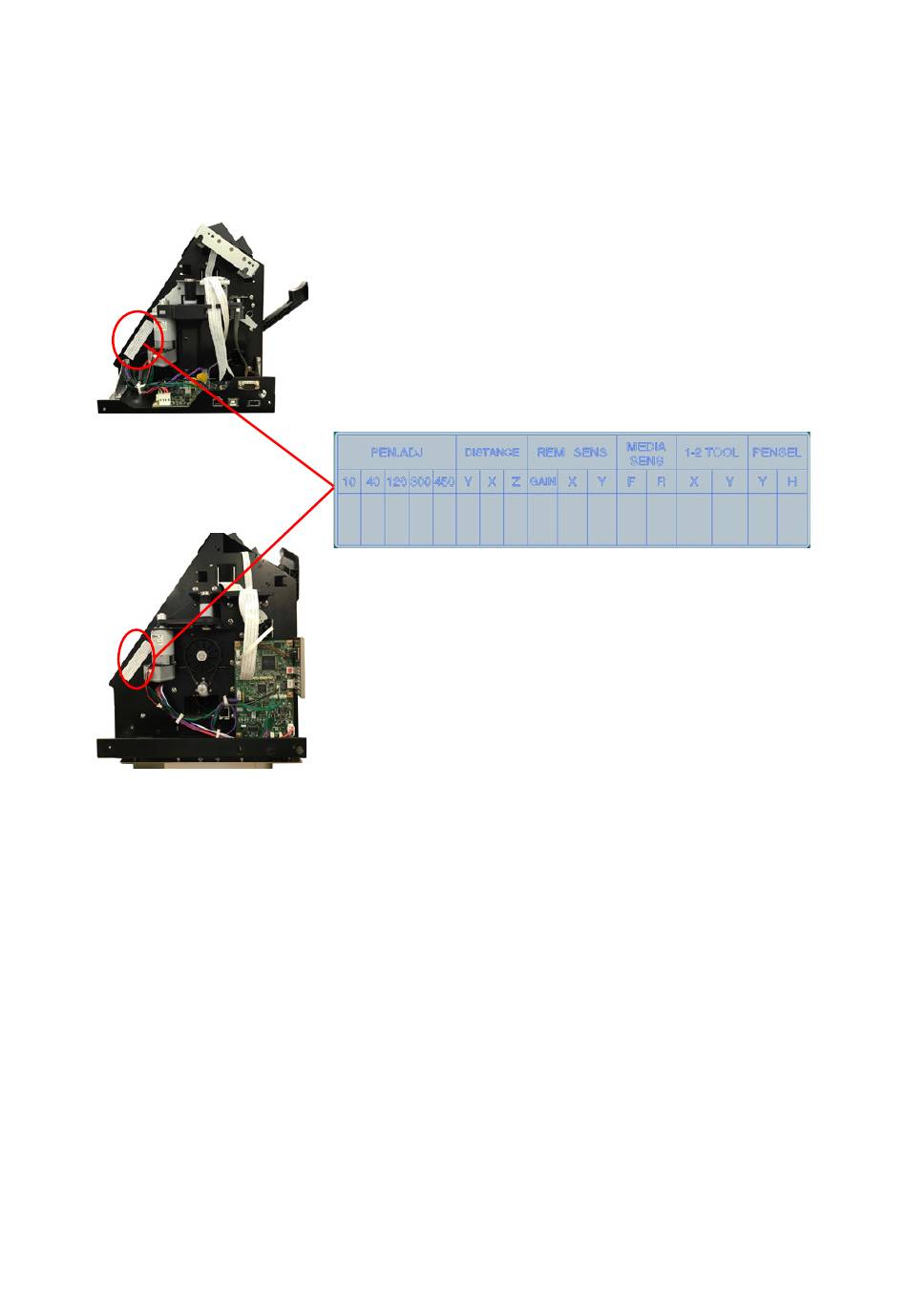

The default factory adjustment values are recorded on label in the location shown below.
When the SUB-NVRAM of adjustment values are not able to copy to the main board, use this values.
If you have changed any values by making adjustments, record those values for the next maintenance check.
CE7000-40/60
CE7000-130/130AP/160
Explanation of the values
• PEN ADJ
• DISTANCE
• REM SENS
• MEDIA SENS
• 1-2TOOL
• PENSEL
CE7000-UM-251-9370
20 40 60 150 240 0.2
Pen force adjustment values for each target force.
X and Y for the distance adjustment value, Z for the diagonal distance value
used to the right angle adjustment.
X and Y for the offset adjustment value of the registration mark sensor
position.
(This is not recorded for CE7000-120AP.)
Front and rear media sensor position adjustment values.
1 - 2 Tool spacing adjustment value.
(This is recorded for CE7000-120AP.)
Pen exchange position adjustment value.
(This is recorded for CE7000-120AP.)
2.10 351.78 20 -0.2 0.2 0.7
8-8
8 Electrical Adjustment
