GRAPHTEC CE7000-40 Service Manual page 231

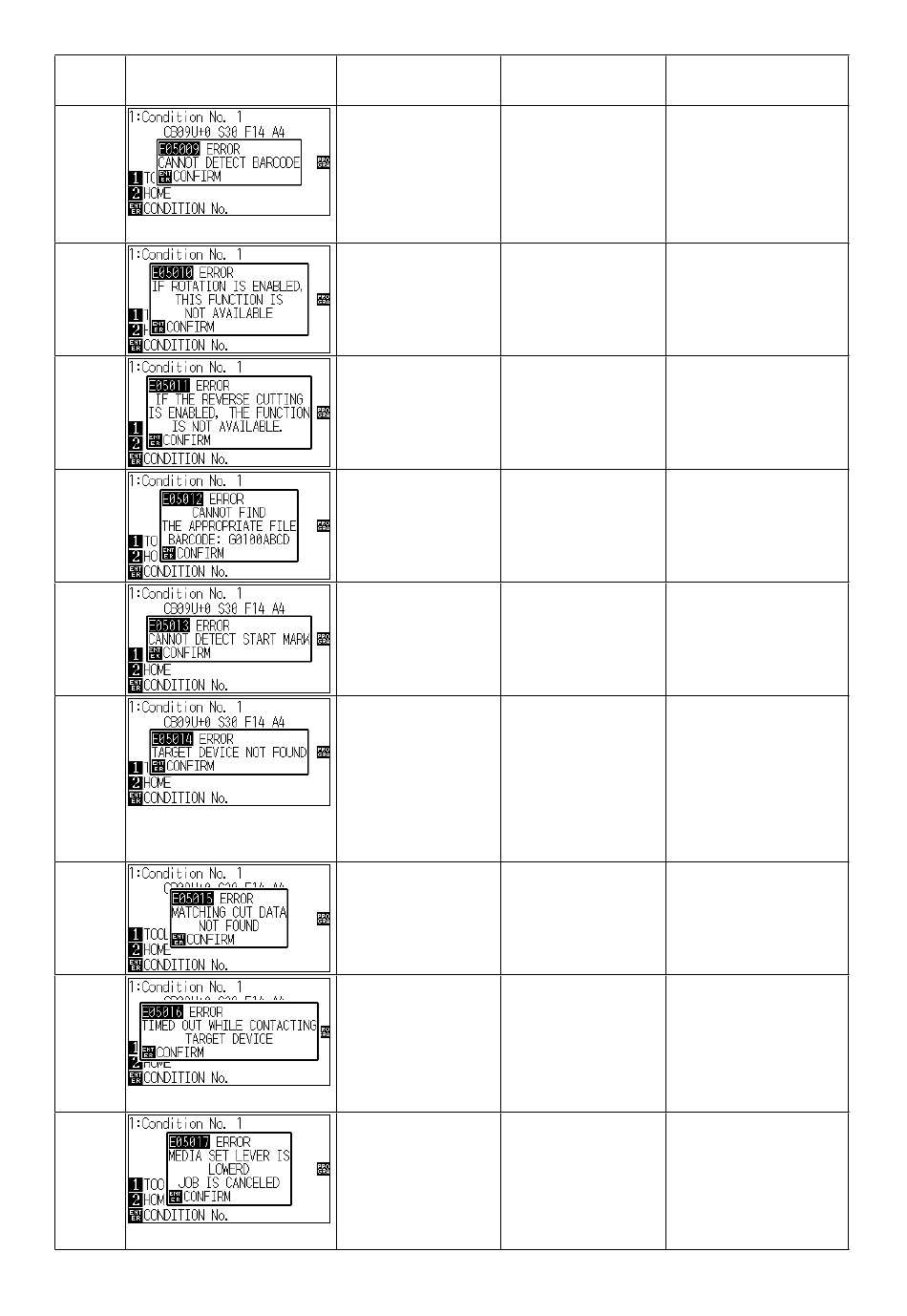

Error
Error Display
code
E05009
E05010
E05011
E05012
E05013
E05014
E05015
E05016
E05017
CE7000-UM-251-9370
Cause
The barcode can not Confirm the printing
detect. of barcode.
The rotation can not Confirm the rotation
set to the barcode is not set to ON.
operation.
The reverse can not Confirm the reverse
set to the barcode is not set to ON.
operation.
It can not find Confirm the correct
the data which is data is saved to the
specified with the PC or USB memory.
barcode.
It can not detect the Confirm the start
start mark for the mark of barcode is
barcode. printing in the cutting
area.
The USB memory Confirm the target
is not connected device setting.
to the plotter or the
Link server PC is
not connected to the
potter.
The specified data Confirm the specified
was not found in the data is saved in the
USB memory or the USB memory or the
Link server PC. Link server PC.
It could not connect Confirm the USB
to the target device. memory or the
Link server PC
is connecting the
plotter.
The media set lever When the media set
is lowered. lever is lowered while
link data is cutting,
the cutting job is
canceled.
28
9 TROUBLESHOOTING
Verification item
Confirm the printing of
barcode.
Move the tool position to
the barcode start mark
position correctly.
Set the rotation setting
to OFF.
Set the reverse setting
to OFF.
Save the correct data
to the PC or the USB
memory.
Confirm when the media
is loading the start
barcode is not outside
of cutting area.
Connect the USB
memory or connect the
Link server PC to the
plotter.
Save the specified data
to the USB memory or
the Link server PC.
Connect the USB
memory or the Link
server PC to the plotter.
Do not lower the set
lever if you do not want
to cancel the job.
Solution
