7.2

Internal Parts

7.2.1

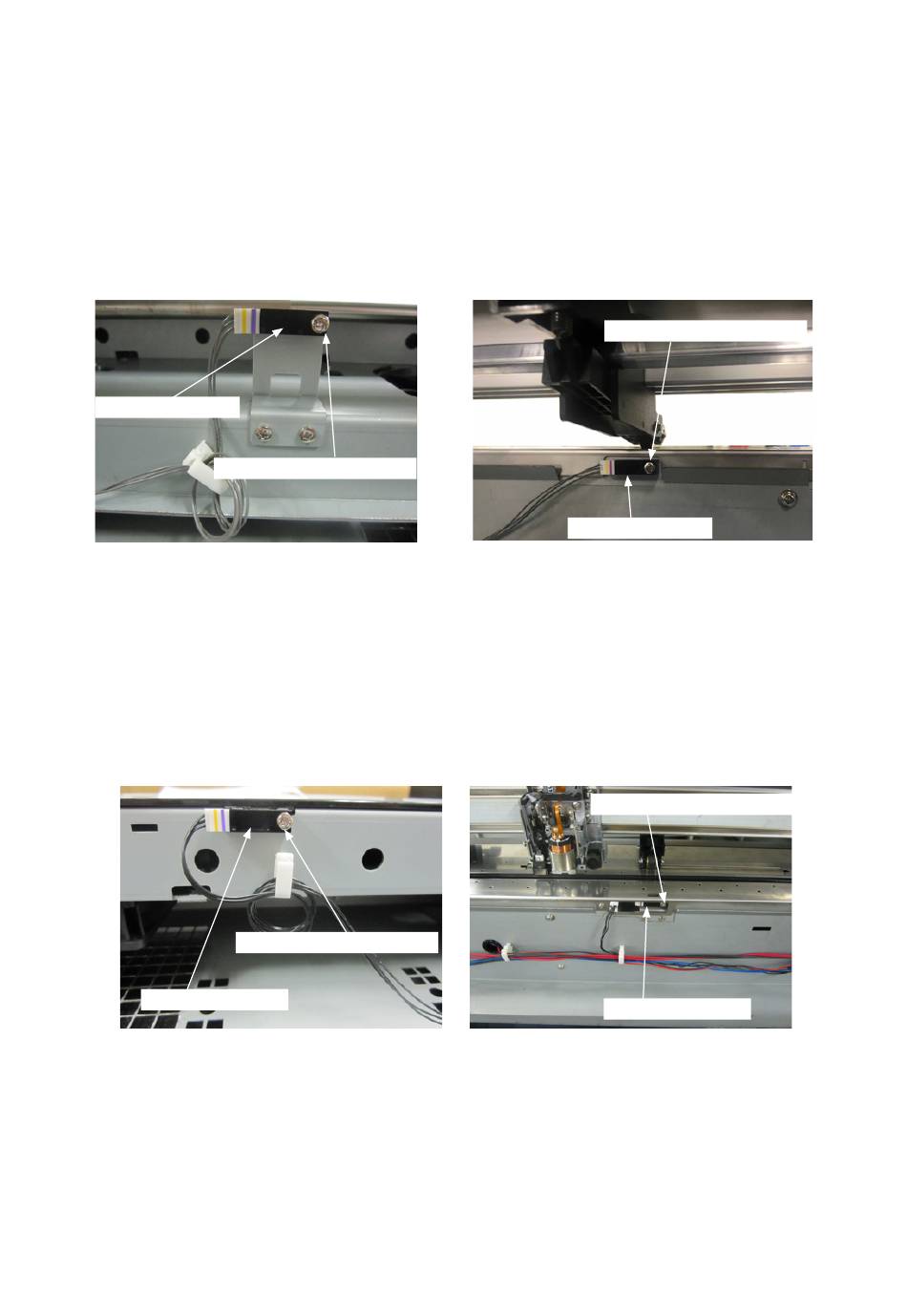

Replacing the Rear Media Sensor

How to detach the rear media sensor
(1) Detach the rear guide (Refer to subsection 7.1.6.).
(2) Remove the M3L10 binding head screw attaching the rear media sensor.
(3) Disconnect the sensor from the connector.
CE7000-40/60
Rear media sensor
M3L10 binding head screw
How to reinstall the rear media sensor
(1) Reattach the rear media sensor in the reverse order in which it was detached.
7.2.2

Replacing the Front Media Sensor

How to detach the front media sensor
(1) Detach the front guide (Refer to subsection 7.1.5.).
(2) Remove the M3L10 binding head screw attaching the front media sensor.
CE7000-40/60
Front media sensor
(3) Disconnect the sensor from the connector.
How to reinstall the front media sensor
(1) Reattach the front media sensor in the reverse order in which it was detached.
CE7000-UM-251-9370
M3L10 binding head screw
7 DISASSEMBLY AND REASSEMBLY
CE7000-130/130AP/160
M3L10 binding head screw
Rear media sensor
CE7000-130/130AP/160
M3L10 binding head screw
Front media sensor
7-14
