7.2.10 Replacing the Cam Sensor board
How to detach the cam sensor board
(1) Detach the right side cover (Refer to subsection 7.1.1.).

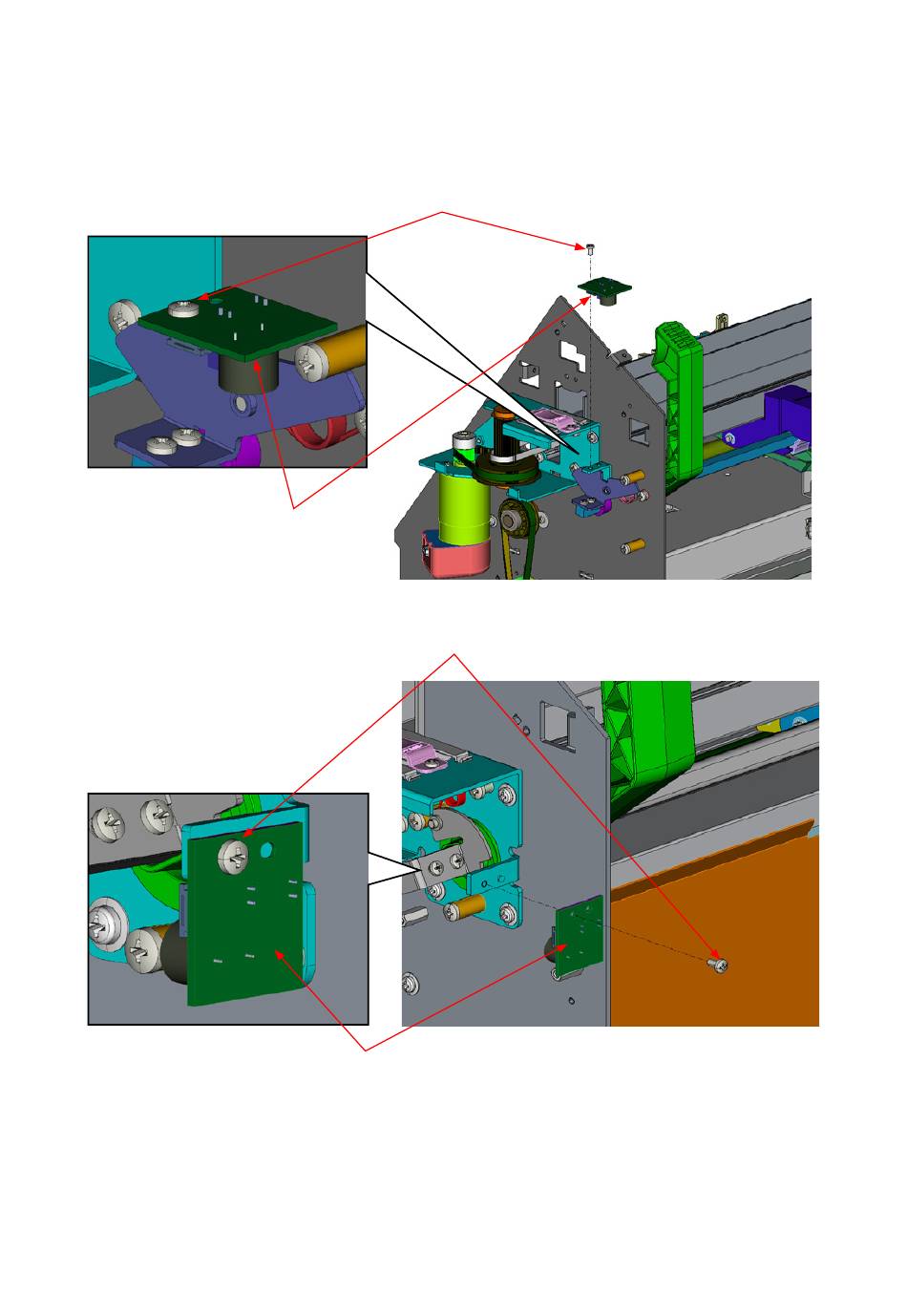

(2) Remove the M3L6 binding head screw holding the cam sensor board.
CE7000-40/60
Cam sensor board
CE7000-130/130AP/160
(3) Disconnect the flexible cable from the cam sensor board.
CE7000-UM-251-9370
M3L6 binding head screw
M3L6 binding head screw
Cam sensor board
7-26
7
DISASSEMBLY AND REASSEMBLY
