7 DISASSEMBLY AND REASSEMBLY

7.1.11 Replacing the Push Roller

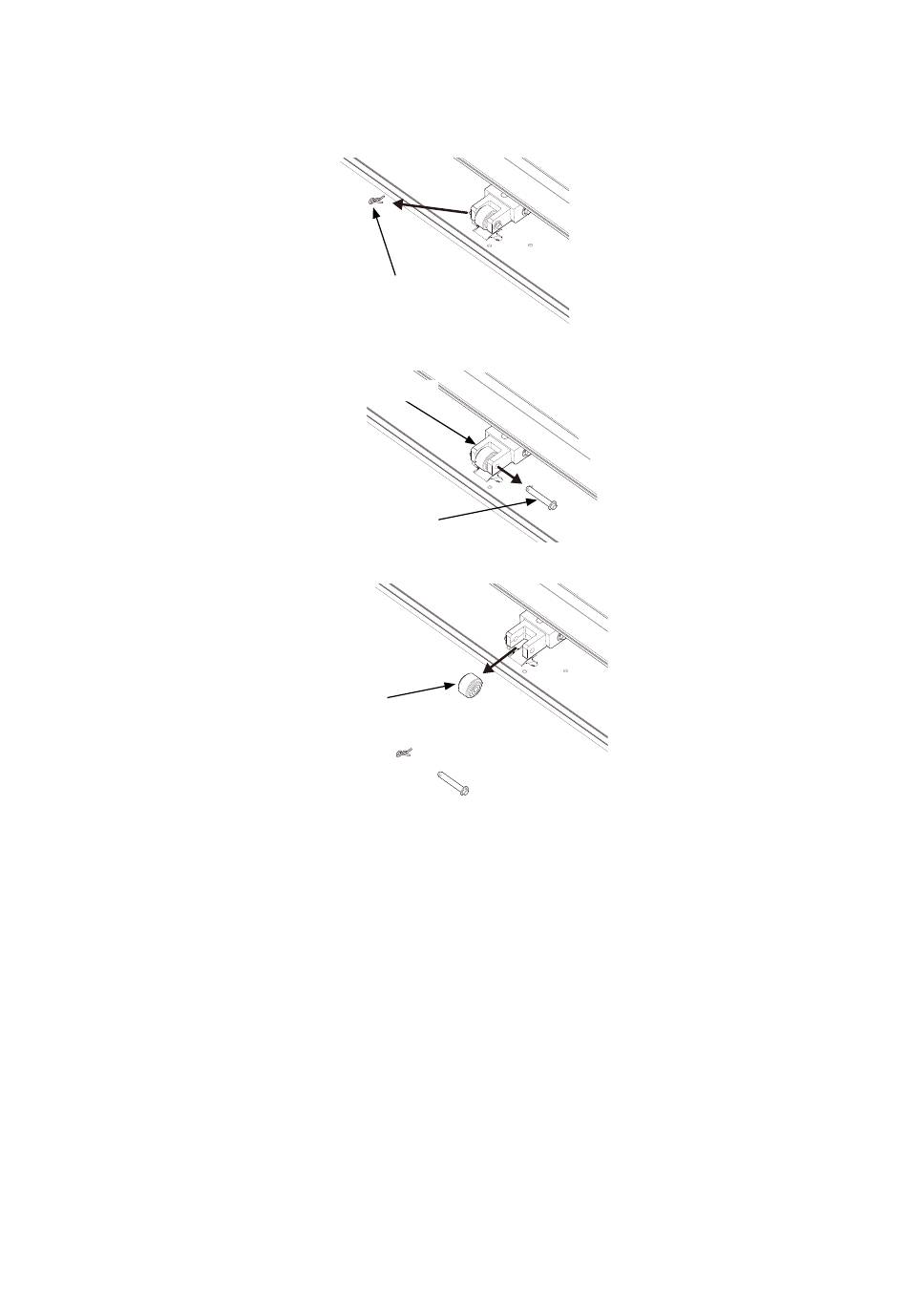

How to detach the Push Roller
(1) Pull out the push roller pin from the push roller shaft by using the needle nose pliers.
Push roller pin
(2) Pull out the push roller shaft from the push roller arm.
Push roller arm
Push roller shaft
(3) Detach the push roller.
Push roller
How to reinstall the push roller
(1) Reattach the push roller in the reverse order in which it was detached.
CE7000-UM-251-9370 7-12
