12 Target electrical component for WEEE instruction

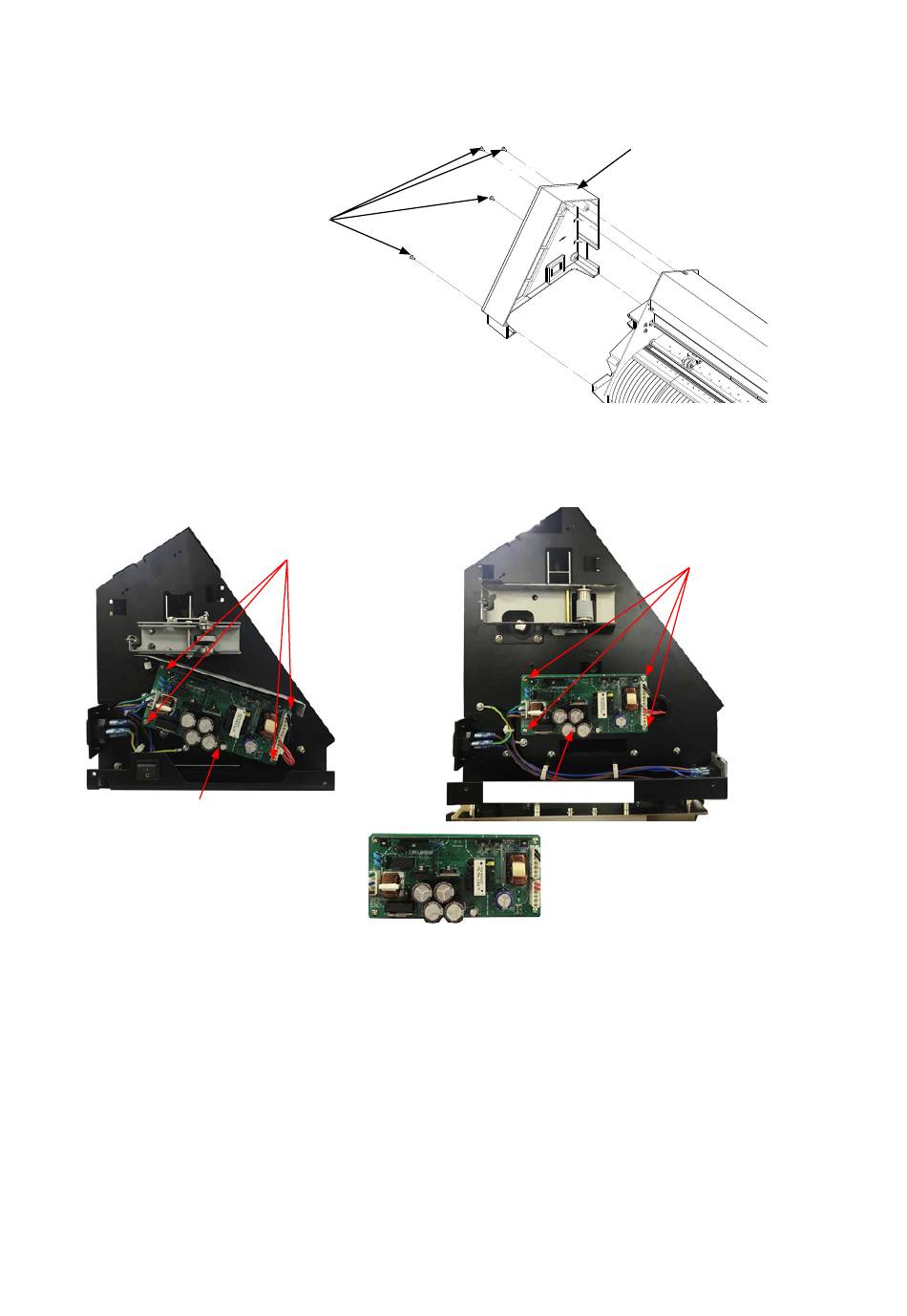

• Removing (D) Switching Power Supply Unit
(1) Remove the four M4L6 binding head screws from the left side cover.
(2) Detach the left side cover.
Left side cover
M4L6 binding head screw
(3) Disconnect all cables from the power supply board.
(4) Remove the four M3L6 binding head screws holding the power supply board, and then detach it.
CE7000-130/130AP/160
CE7000-40/60
M3L6 binding head screw
M3L6 binding head screw
Power supply board
Power supply board
CE7000-UM-251-9370
12-10
