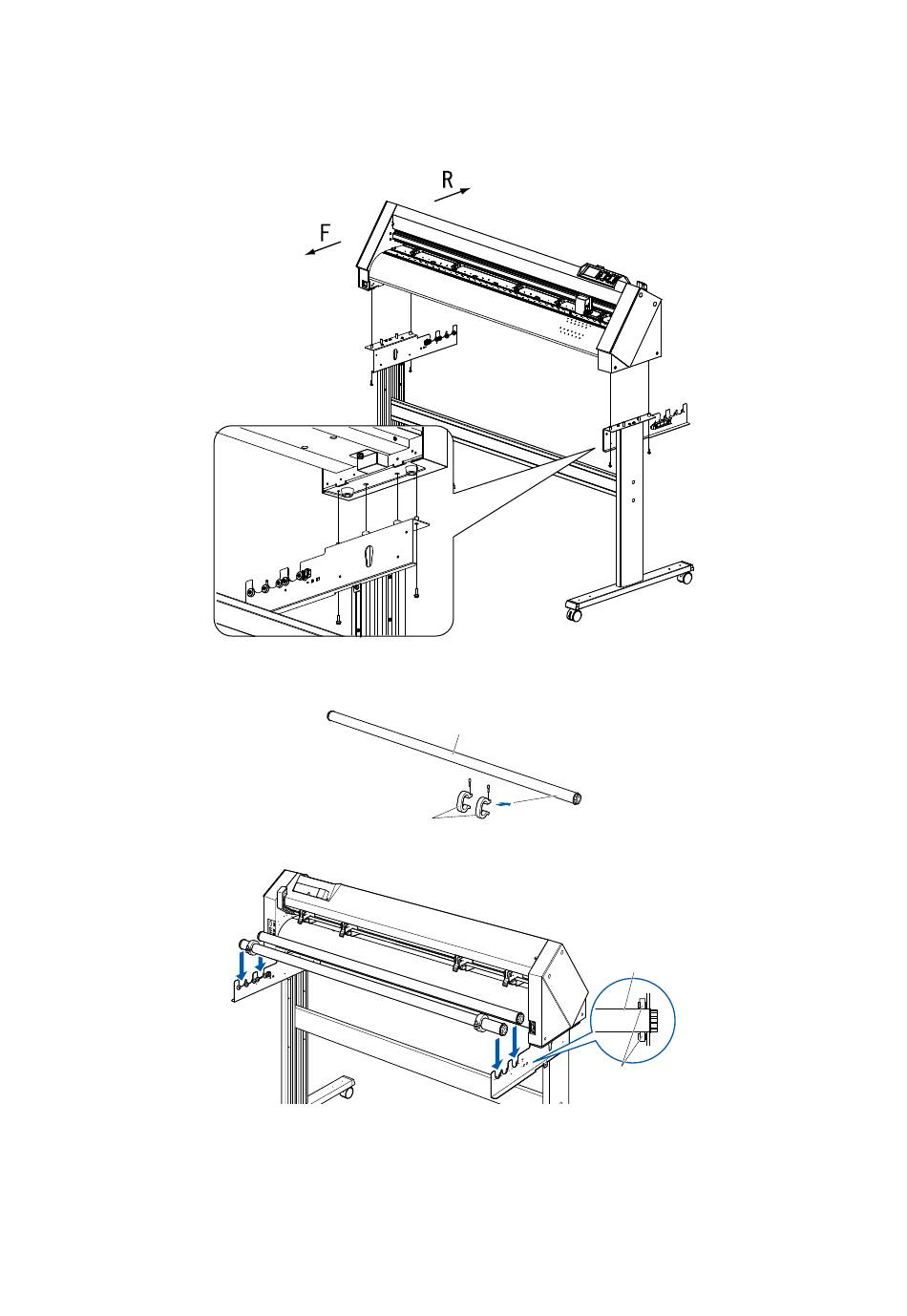

(6) Confirm the front side and the rear side for the stand by shape of center bar. Mount the plotter on
the stand by inserting the positioning pins on the stand into the positioning holes on the underside of
the plotter. Fasten with the four M5L20 cap screws (two longer screws for each side), using the Allen
wrench.
(7) Set one stopper in the stock shaft.
(Keep the stopper screws slightly loose.)
(8) Put the stock shafts into the media stocker.
CE7000-UM-251-9370
Stock shaft
Stopper
2-8
Stock shaft
Roller
2 Setup
