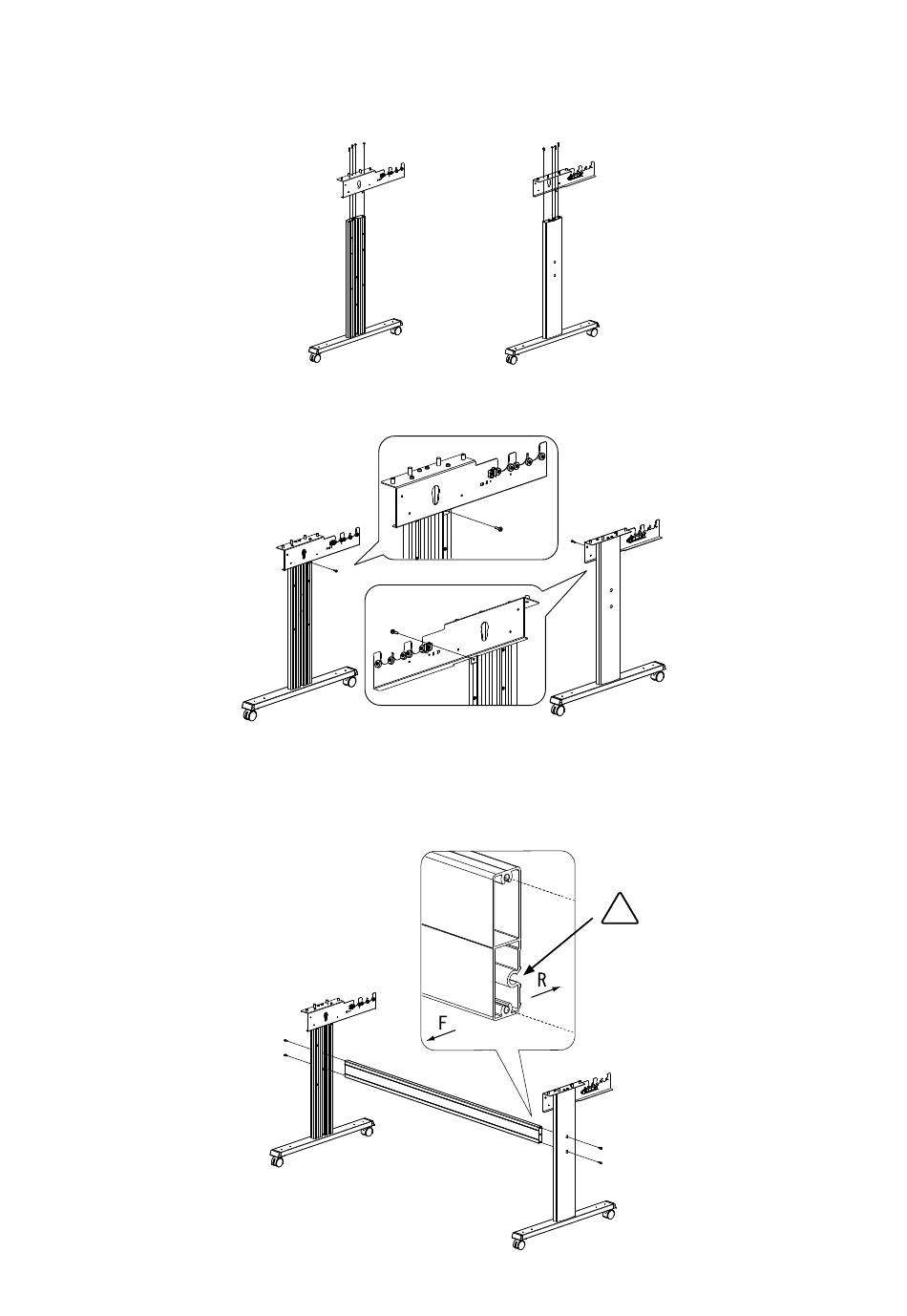

(3) Assemble the Media stocker L and R to the left and right stand sides. Insert the eight (four on each side)
M5L16 cap screws to the thread of the stand side bar by hand, and then tighten them by hand. Then
fasten four M5L16 cap screws (Shorter screw) by using the Allen wrench.
(4) Tighten two M5L16 cap screws (Shorter screw) for the Media stocker L and R to the left and right stand
sides.
(5) When the center bar is assembled to the side stand, confirm the front side and the rear side for the
stand by shape of center bar.
Insert the four M5L16 cap screws to the thread of the center bar by hand (two on each side), and then
tighten them by hand. Then fasten four M5L16 cap screws (Shorter screw) by using the Allen wrench.
