7.2.16 Replacing the Drive Roller shaft for CE7000-130/130AP/160

How to detach the drive roller shaft
(1) Detach the right side cover (Refer to subsection 7.1.1.).
(2) Detach the left side cover (Refer to subsection 7.1.2.).
(3) Detach the front guide (Refer to subsection 7.1.5.).
(4) Detach the rear guide (Refer to subsection 7.1.6.).
(5) Detach the rear writing panel (Refer to subsection 7.1.7.).
(6) Detach the front writing panel assembly (Refer to subsection 7.1.8.).

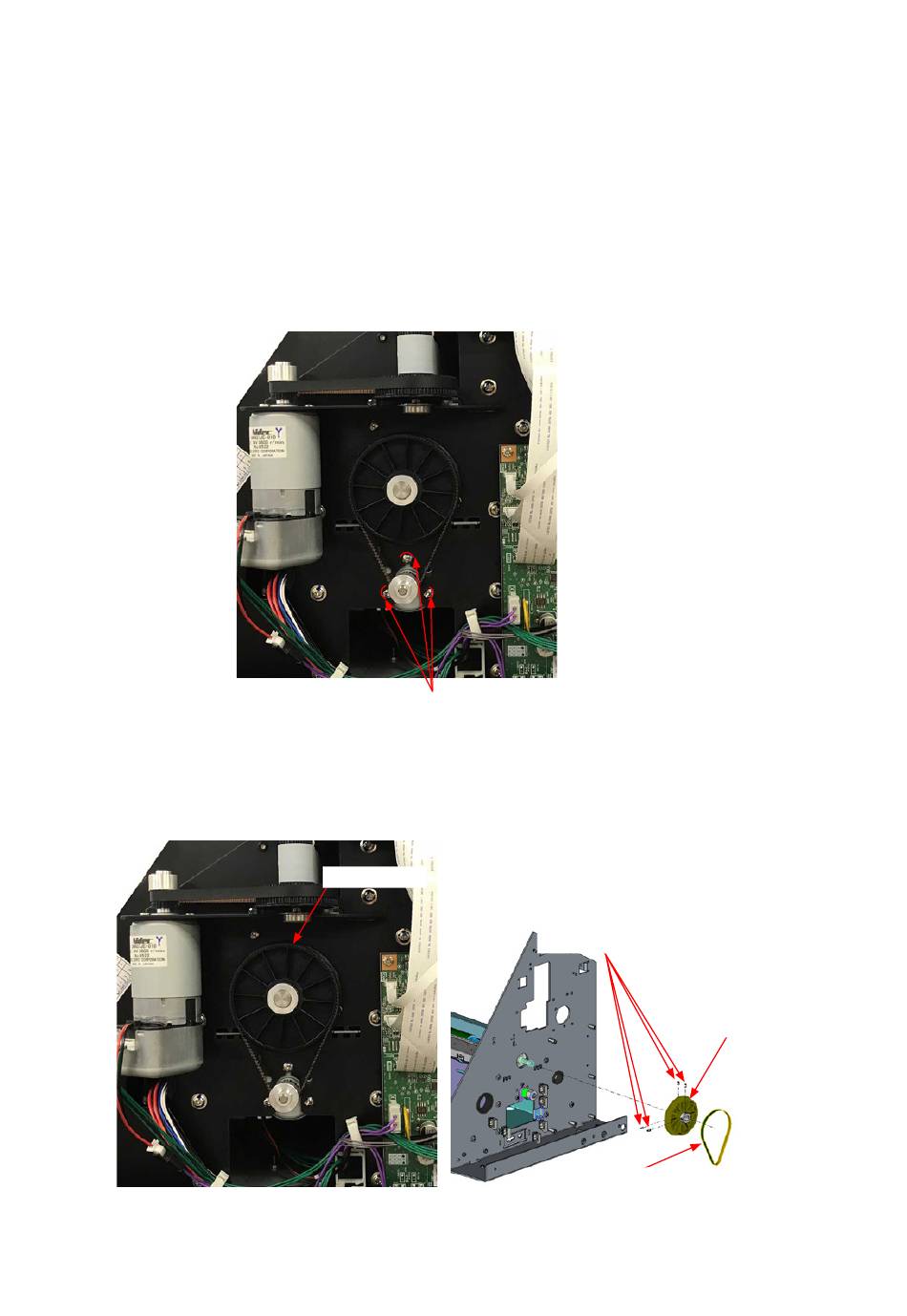

(7) Mark the position of screws which are holding the X motor as shown in the picture below.
(8) Loosen the three M3L6 binding head screws holding the X-motor to loosen the X drive belt, and then
detach the X drive belt.
(9) Loosen the four M3L4WP set screws holding the X-drive pulley, and then detach the X-drive pulley from
the drive roller shaft.
CE7000-UM-251-9370
Mark the position of screws which are holding the X motor.
X drive pulley
7 DISASSEMBLY AND REASSEMBLY
M3L4WP set screw
X drive belt
7-44
X drive pulley
