Adjusting The 2Nd Pen Exchange Position - GRAPHTEC CE7000-40 Service Manual

8 Electrical Adjustment

8.16.2 Adjusting the 2nd Pen Exchange position

When the pen block was removed or replaced, perform this adjustment.
When the 2nd pen station was removed or replaced, perform this adjustment.
When the 2nd pen holder was removed or replaced, perform this adjustment.
How to adjust the 2nd Pen Exchange position
(1) Turn on the power while pressing the SLOW and the ENTER keys.

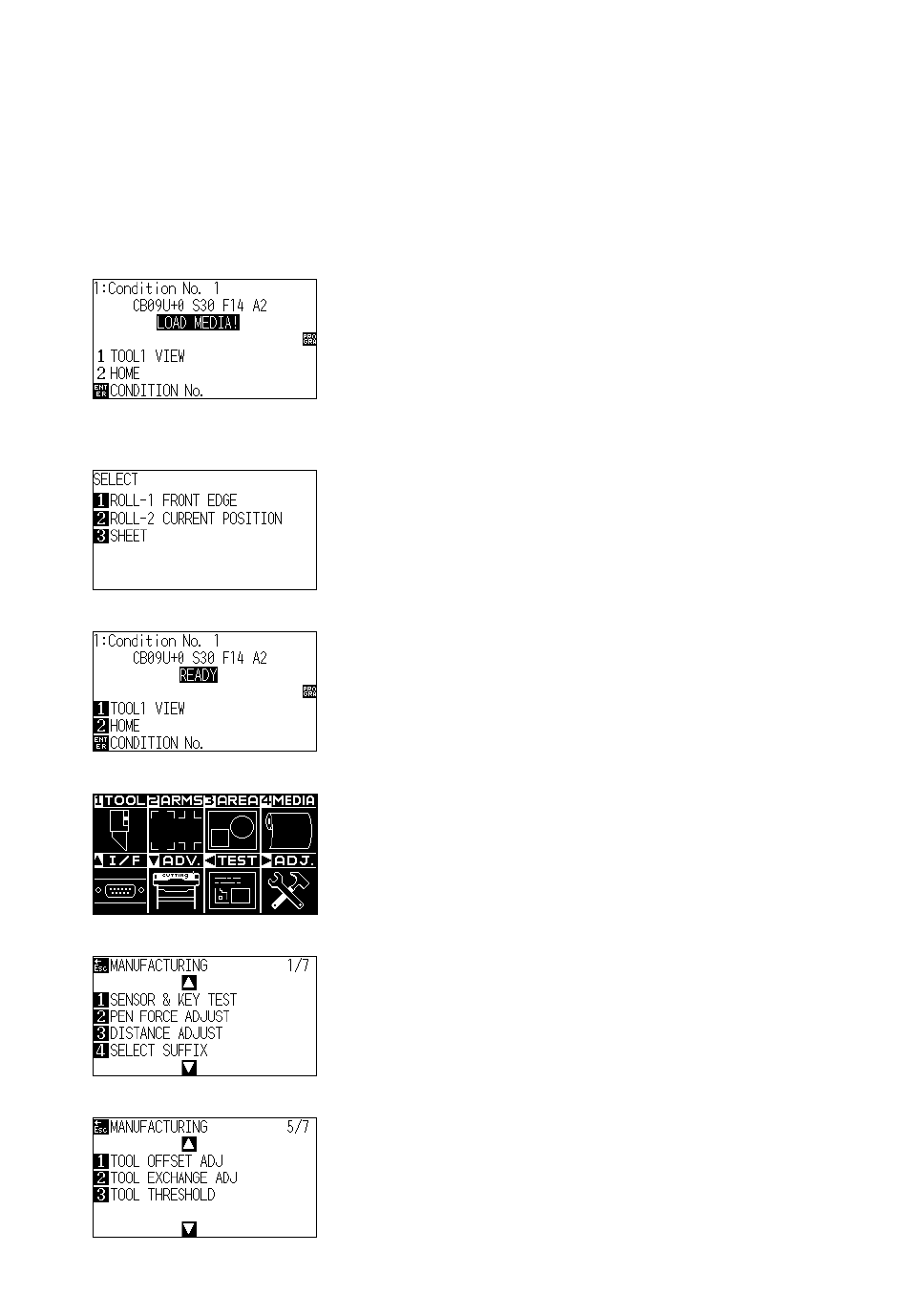

(2) The plotter displays the following menu.
(3) Load the sheet media to the plotter, and then the plotter displays the following menu.
(Media must to load to detect the home position at this adjustment.)
(4) Press the 3 key (SHEET) to display the following menu.
(5) Press the PAUSE/MENU key to display the following menu.
(6) Press the Right position key to display the following menu.
(7) Press the Down position key until the following menu is displayed.
CE7000-UM-251-9370 8-46
