Assembling the stand for CE7000-130/160

Procedure

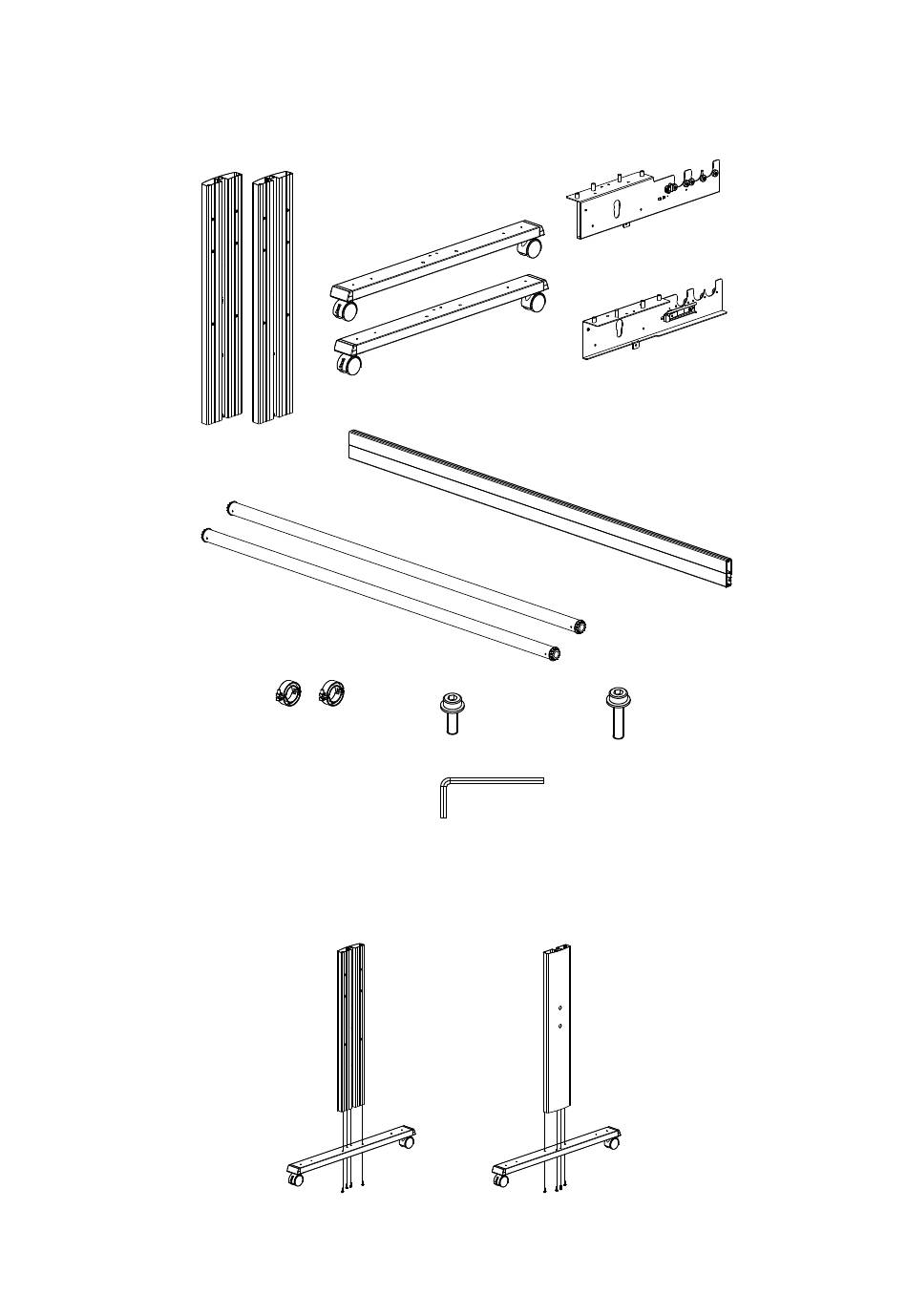

(1) Take out the following part of stand from the packing box.
Stand side bar x 2
(2) Assemble the left and right stand sides and feet. Insert the four M5L16 cap screws (Shorter screw) to
the thread of the stand side bar by hand, and then tighten them by hand. Then fasten four M5L16 cap
screws by using the Allen wrench.
CE7000-UM-251-9370
Foot x 2
Stock roller x 2
Stopper x 2
M5L16 Cap screw x 22
(Shorter)
Allen wrench (for M5 cap screw)
Media stocker L and R
Center bar x 1
M5L20 Cap screw x 4
(Longer)
