DISASSEMBLY AND REASSEMBLY
7.2.8

Replacing the Push Roller Sensor Board

How to detach the push roller sensor board
(1) Detach the control panel assembly (Refer to subsection 7.1.3.).
(2) Detach the center cover (Refer to subsection 7.1.4.).
(3) Detach the pen block (Refer to subsection 7.2.6.).

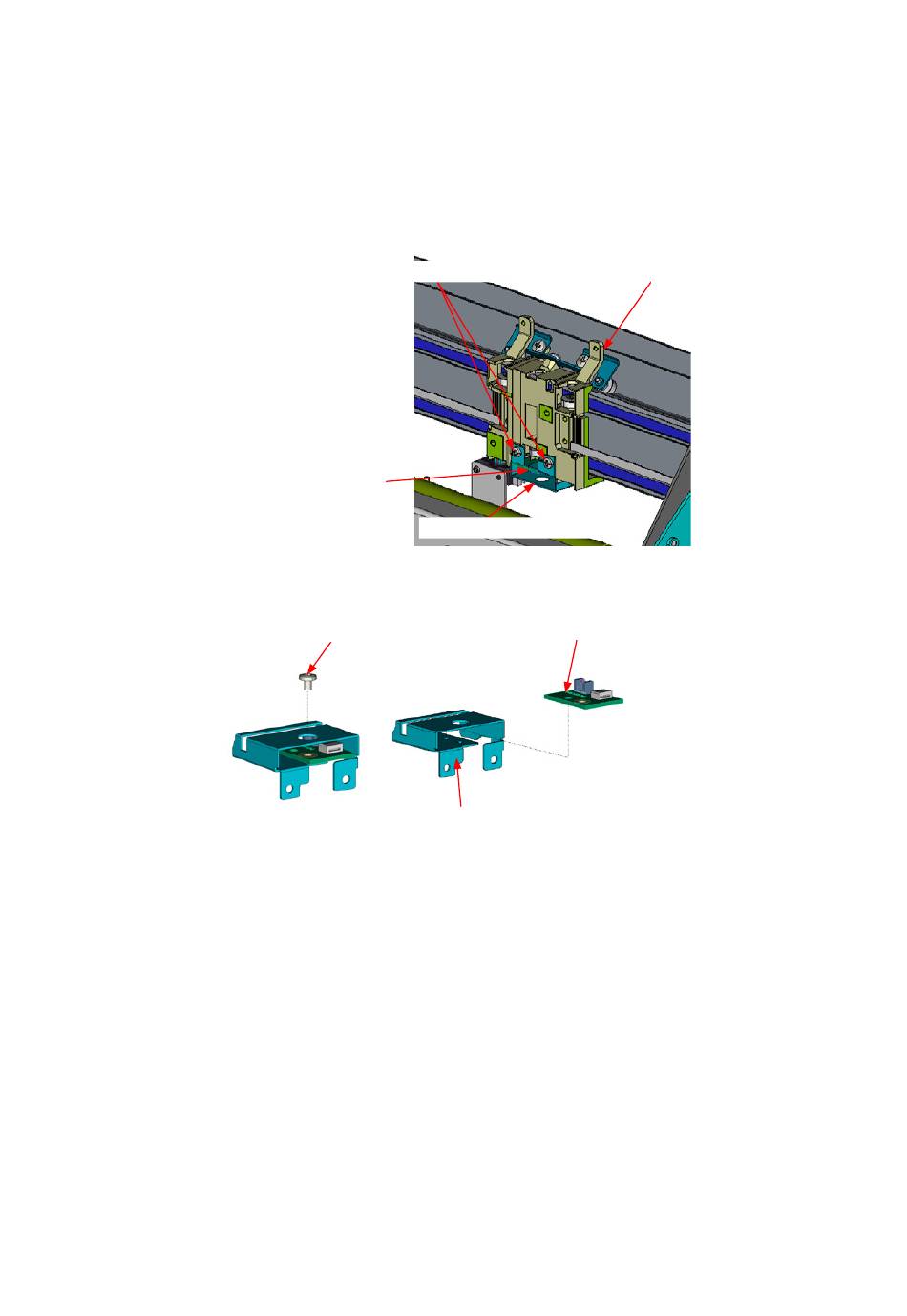

(4) Remove the two M3L6 binding head screws attaching the push roller sensor bracket to the slider.
M3L6 binding head screw
Y slider
Push roller sensor board
Push roller sensor bracket
(5) Disconnect the push roller flexible cable from the push roller sensor board.
(6) Remove the M3L4 binding head screws attaching the push roller sensor board.
Push roller sensor board
M3L4 binding head screw
Push roller sensor bracket
How to reinstall the push roller sensor board
(1) Reattach the push roller sensor board in the reverse order in which it was detached.
(2) Confirm the wiring for push roller sensor flexible cable (Refer to subsection 7.4.).
CE7000-UM-251-9370
7-24
