12 Target electrical component for WEEE instruction

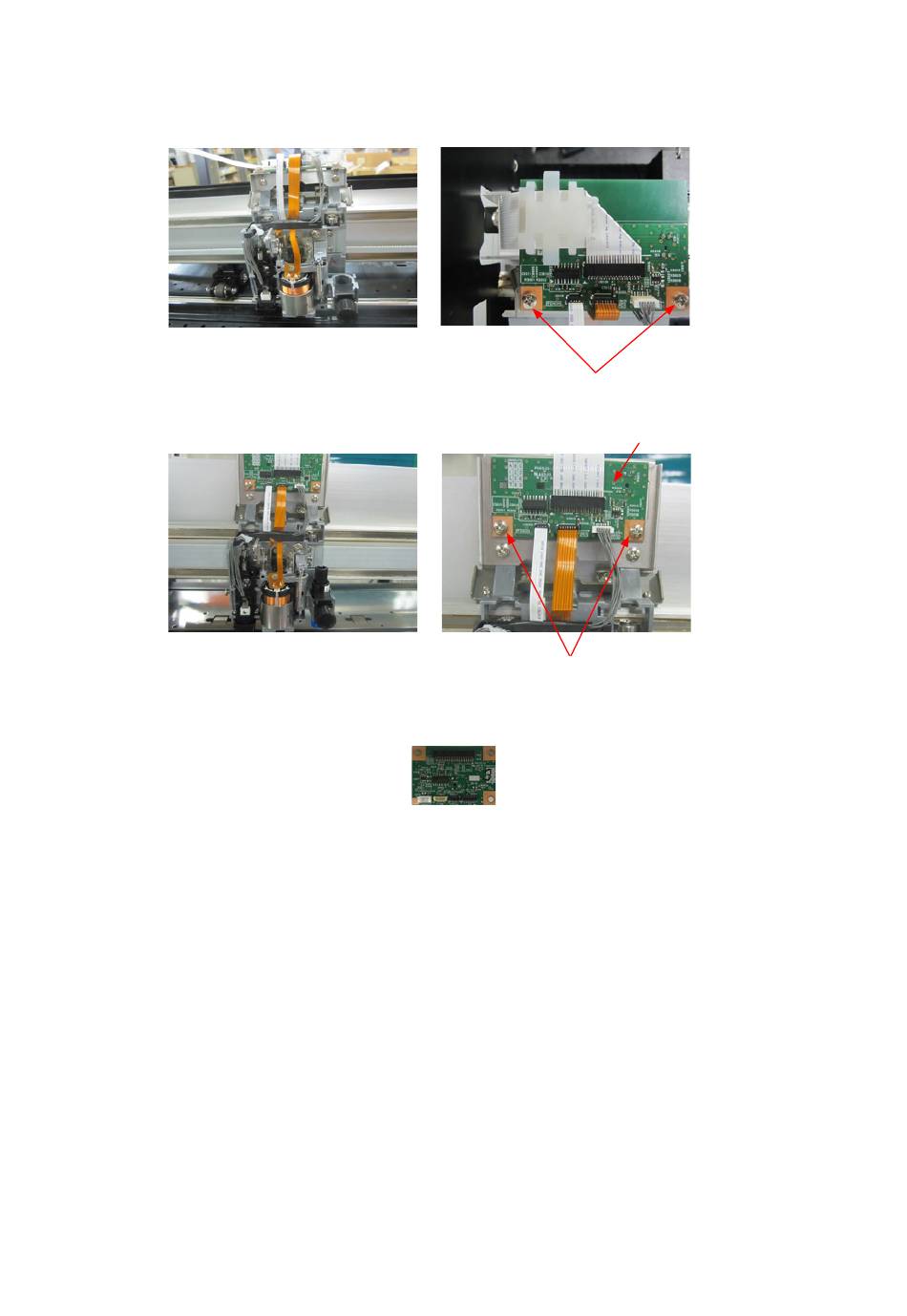

(6) Detach the center cover.
(7) Disconnect all the cables from the Y-relay board.
CE7000-40/60
Pen board (Y relay board)
M3L6 binding head screw
CE7000-130/160
Pen board (Y relay board)
M3L6 binding head screw
(8) Remove the two M3L6 binding head screws attaching the Y-relay board.
(9) Detach the Y-relay board from the Y-slider.
CE7000-UM-251-9370
