GRAPHTEC CE7000-40 Service Manual page 154

(4) Transfer firmware data from the personal computer.
Execute SEND.EXE.
(5) Press print button to output the system firmware file to the CE7000 after all settings are set in above
step.

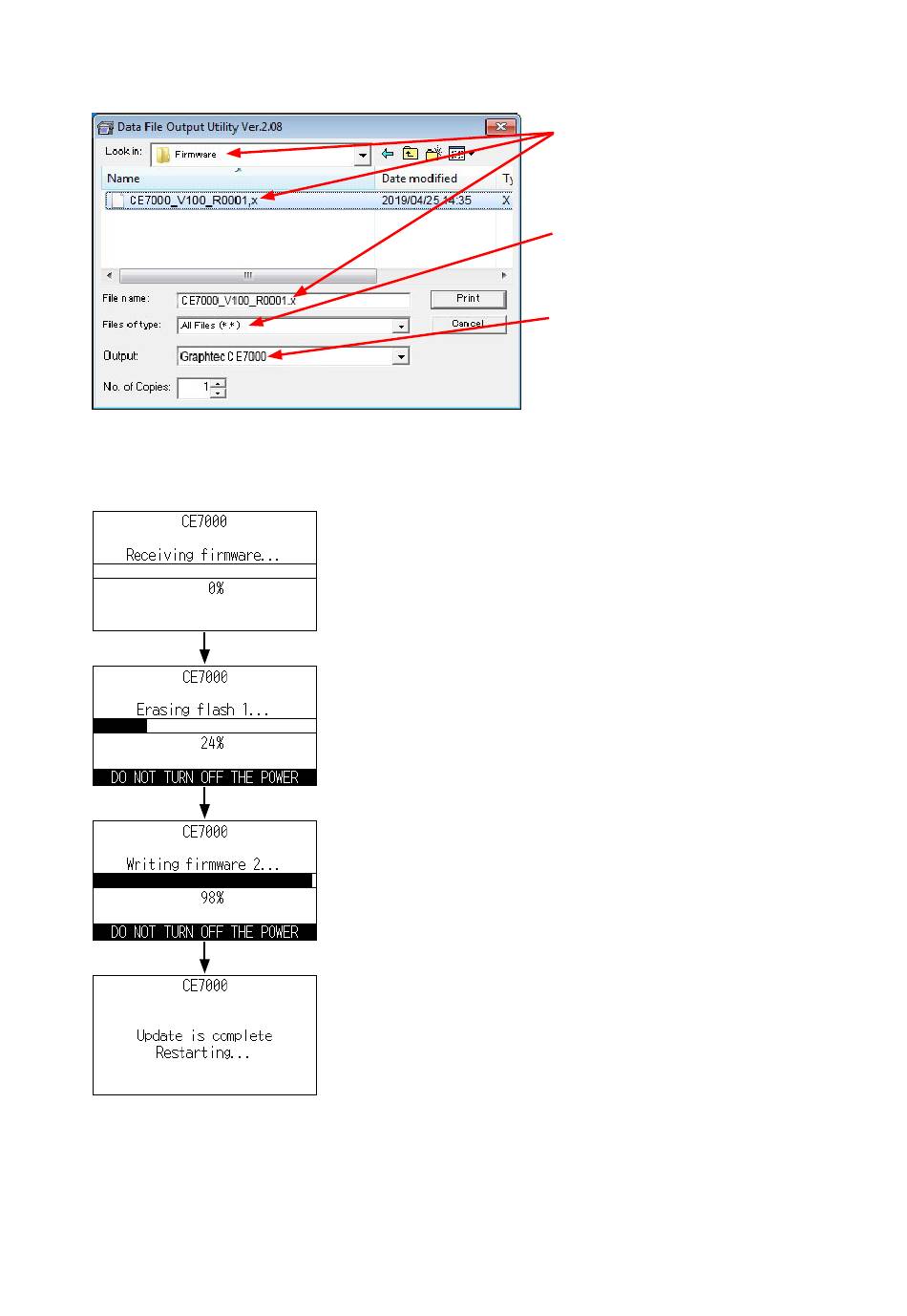

(6) While updating the firmware, the following menus will be displayed.
CE7000-UM-251-9370
Select the folder for the
firmware, then select the
firmware file. The File name box
shows the firmware file name.
Select the all files.
Select the output device.
Confirm the active device of
CE7000 at the "Device and
Printer" menu in the WINDOWS
before selecting the output device.
8-11
8 Electrical Adjustment
