7 DISASSEMBLY AND REASSEMBLY
CE7000-130//130AP/160

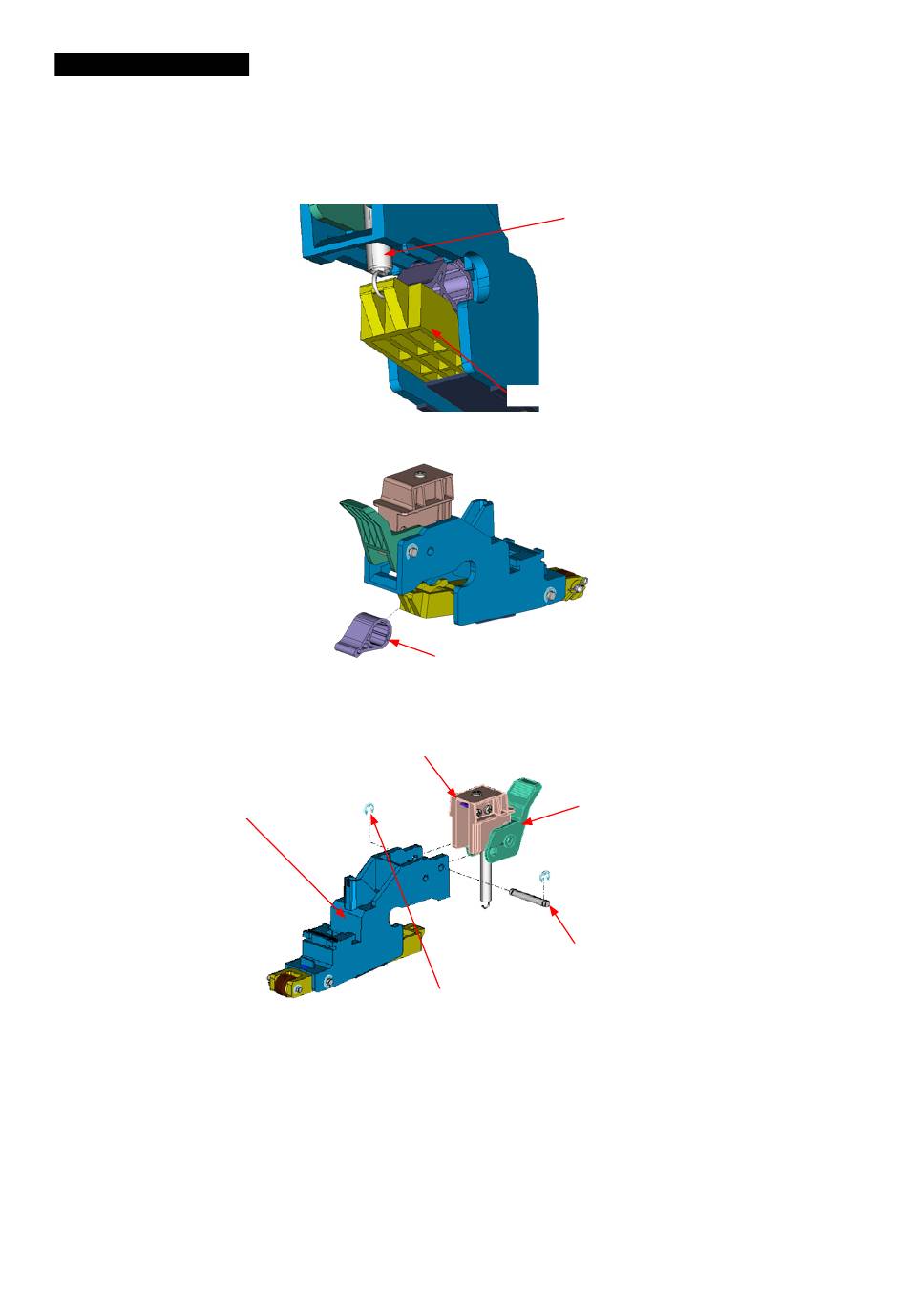

How to detach the Push Roller base
Don't loosen any screws on the push roller assembly.
(1) Detach the push roller assembly (Refer to subsection 7.2.18.).
(2) Release the spring from the push roller arm.
Spring
Push roller arm
(3) Detach the cam from the push roller assembly.
Cam
(4) Remove the E-ring holding the push roller base shaft, and then detach the push roller base shaft, the
presser adjusting part and the push roller lever from the push roller base.
Presser adjusting part
Push roller lever
Push roller base
Push roller base shaft
E-ring
CE7000-UM-251-9370 7-56
