7 DISASSEMBLY AND REASSEMBLY
7.1.3

Replacing the Control Panel Assembly

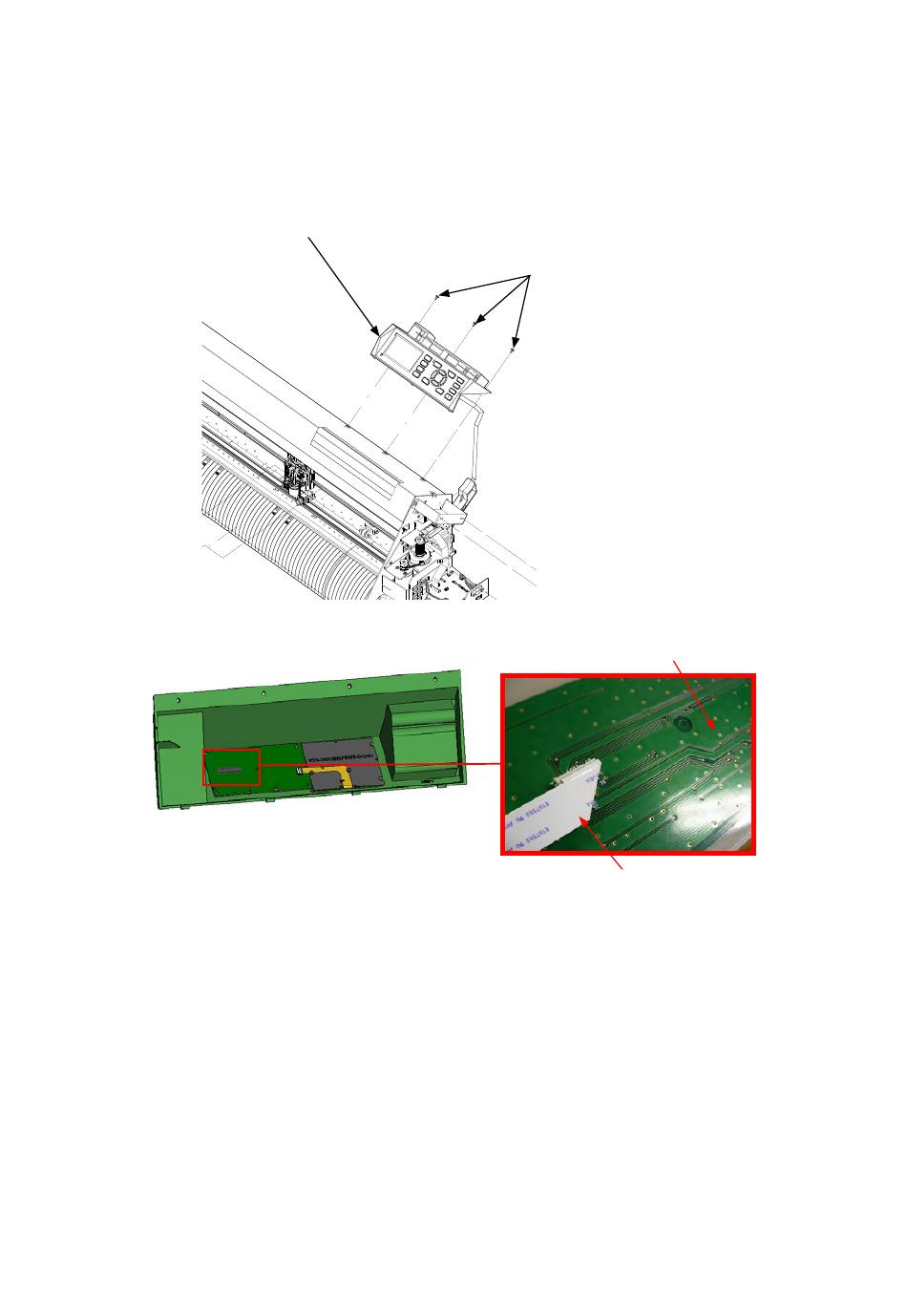

How to detach the control panel assembly
(1) Detach the right side cover (Refer to subsection 7.1.1.).
(2) Disconnect the control panel flexible cables from the main board.
(3) Remove the three M3L6 binding head screws holding the control panel assembly.
Control panel assembly
M3L6 binding head screw
(4) Disconnect the control panel flexible cables from the control panel board.
Control panel board
Control panel flexible cable
How to reinstall the control panel assembly
(1) Reattach the control panel assembly in the reverse order in which it was detached.
(2) Confirm the wiring for control panel board flexible cable (Refer to subsection 7.4.).
CE7000-UM-251-9370 7-2
