2.2.4

Installing the optional basket for CE7000-60

Procedure

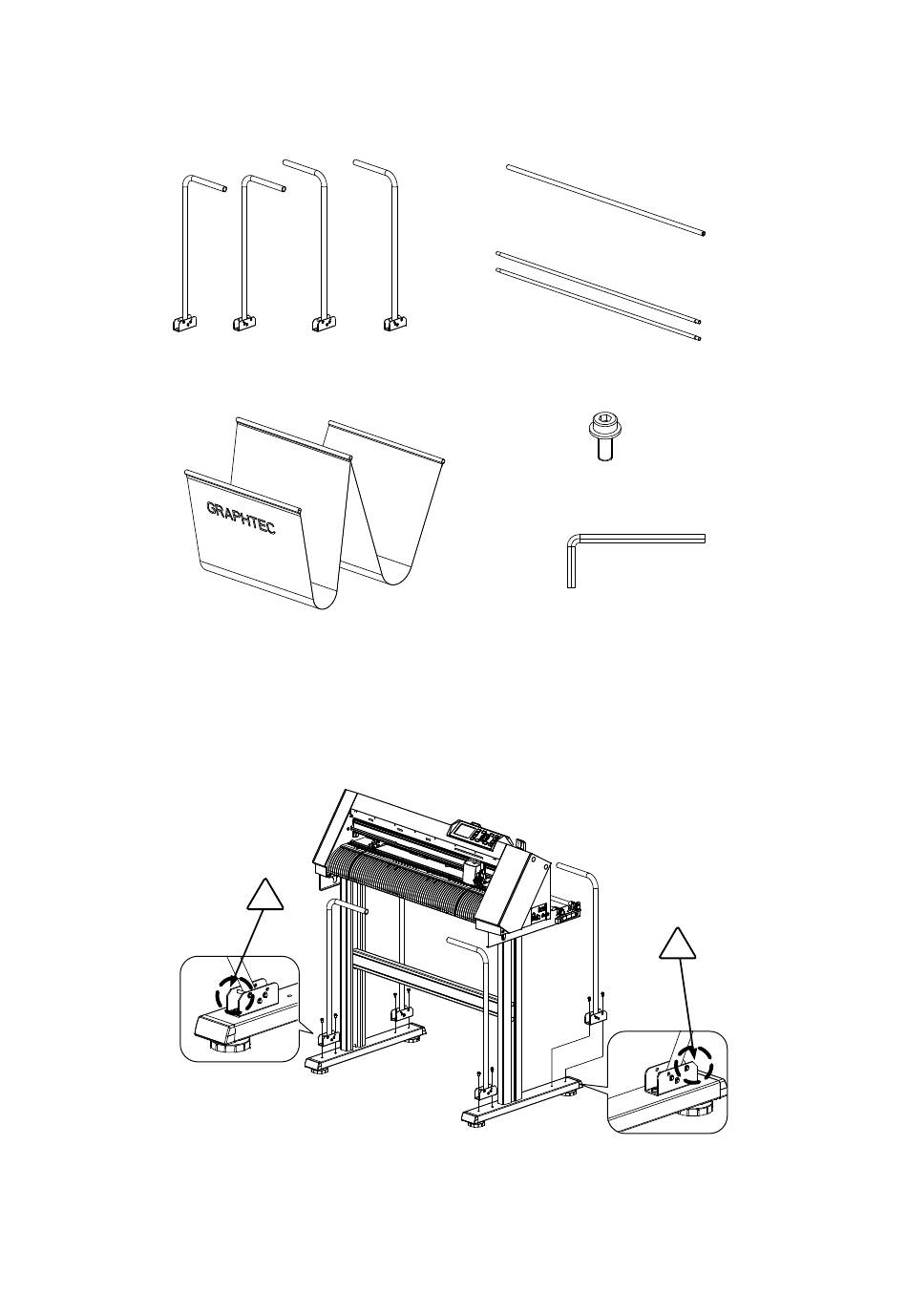

(1) Take out the following part of stand from the packing box.
Basket Cloth Arm x 4
(2) Attach the basket cloth arms to the foot of stand.
Confirm the direction of basket cloth arm as shown in the picture below, and then attach the basket cloth
arm to the foot of stand.
Fasten with the eight M5L10 flange cap screws (two long screws for each basket cloth arm), using the
Allen wrench.
CE7000-UM-251-9370
Basket Cloth x 1
!
Basket tube long x 1
Basket tube short x 2
M5L10 flange cap screw x 8
Allen wrench (for M5 cap screw)
2-13
2 Setup
!
