PARTS NAMES and FUNCTIONS

3.1 Parts Names and Functions
3.1.1

Parts Names and Functions for CE7000-40

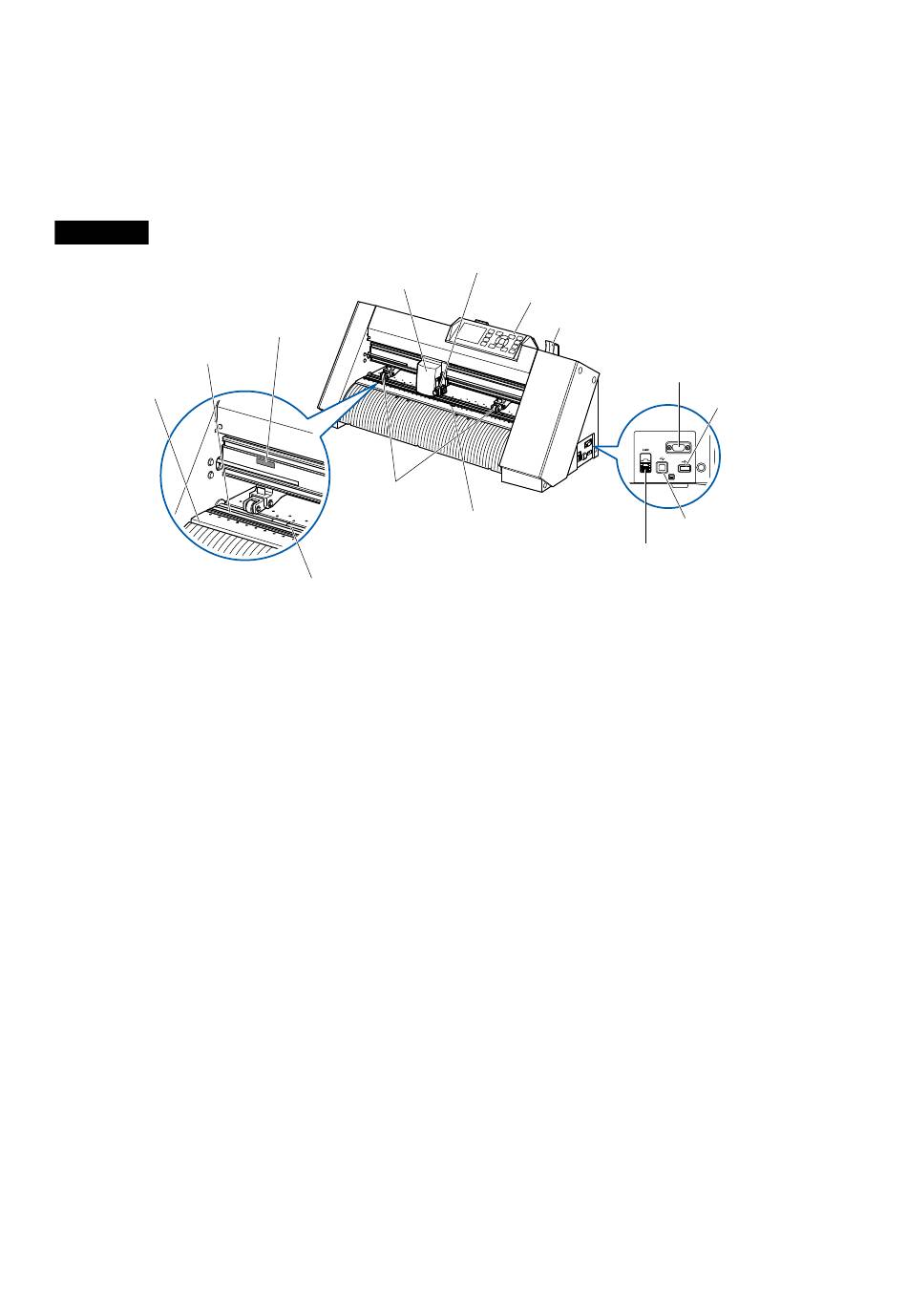

Front View
Grit roller position guide
Cutting mat
Cutting groove
Control panel ���������������������������Used to access various plotter functions�
Push rollers ������������������������������Rollers that push the media against the grit rollers�
Grit rollers ��������������������������������Metallic rollers with a file-like surface that feed the media back and forth�
Media sensors��������������������������The front sensor is used to sense the leading edge of the media� The rear
Tool carriage ����������������������������Moves the cutter-pen or plotting pen across the media during cutting or
Tool holder �������������������������������Holds the cutter-pen or plotting pen and moves it up or down�
Grit roller position guide ���������A roller position guide is affixed to the front side of the rail, which shows the
Cutting mat �������������������������������Cutter blade moved on this mat, preventing wears of the blade�
Cutting groove �������������������������Used when cross-cutting is performed�
Media set lever �������������������������Used to raise or lower the pinch rollers during the loading or unloading of
USB interface connector���������Used to connect the plotter to the computer with a USB interface cable�
RS-232C interface connector �Used to connect the plotter to the computer with a RS-232C interface cable�
Network (LAN) Interface connector
���������������������������������������������������Used to connect this plotter with a network (LAN) I/F�
USB memory connector ���������USB memory connector�
CE7000-UM-251-9370
Tool carriage
Push rollers
Media sensors
Grit rollers
sensor is used to sense the trailing edge of the media�
plotting�
position of each grit roller� Use these alignment marks as an aid in locating
the Push rollers�
media�
It depends on the sales area� For details, please contact the distributor
where you purchased�
3-1
3 PARTS NAMES and FUNCTIONS
Tool holder
Control panel
Media set lever
Network (LAN) Interface
connector
RS-232C interface connector
USB memory connector
USB interface connector
