8 Electrical Adjustment

8.14 Adjusting the Offset of Registration Mark Sensor

This adjustment will set the offset of tool and the registration mark senor position.
Preparation

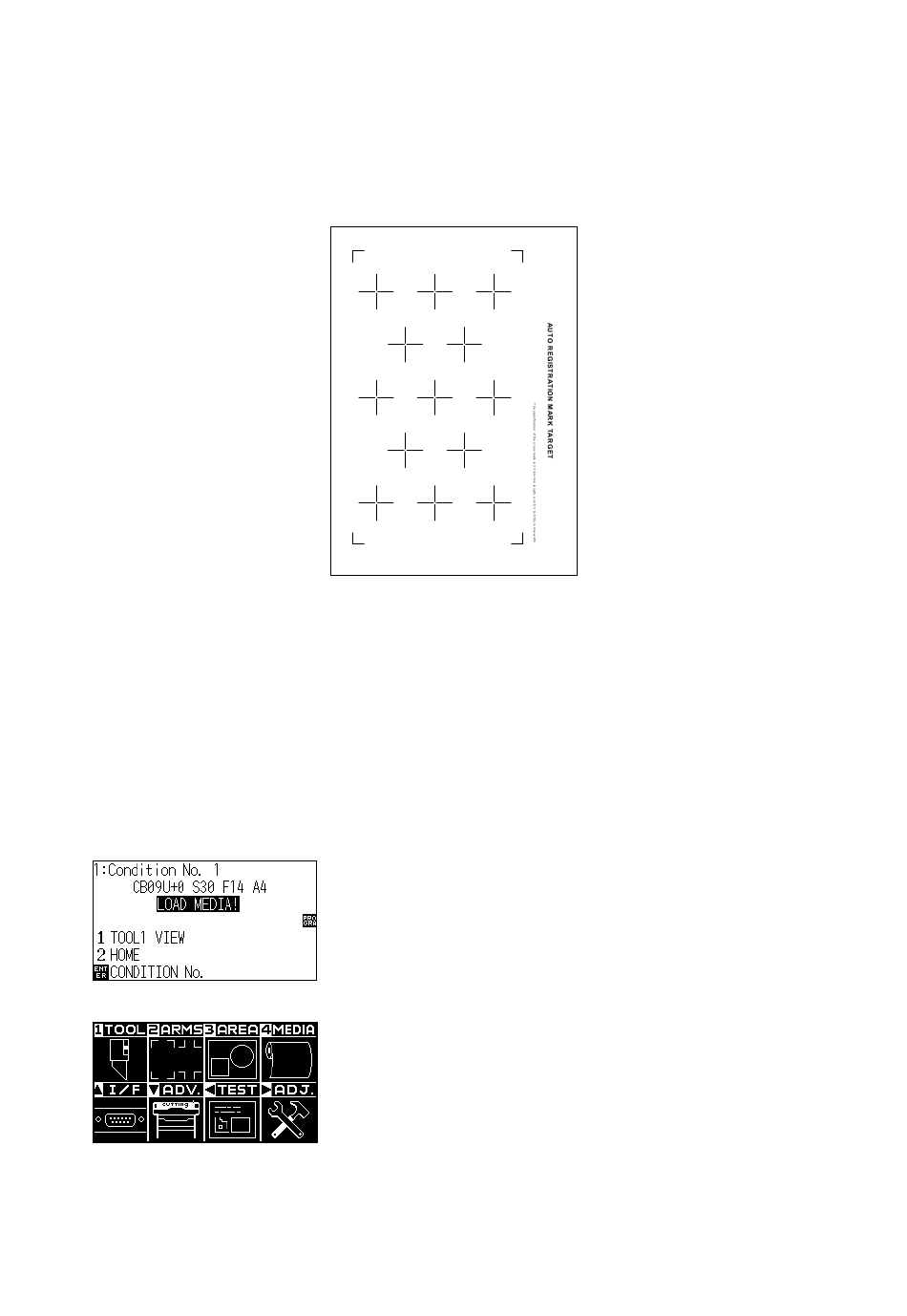

When the registration mark sensor was replaced or removed, print out the target sheet which is on the last
page of this chapter to A4 size white copy paper.
8.14.1 Inputting the registration mark sensor offset position from the
recorded values
Perform this procedure if adjustment values could not copy from the SUB-NVRAM when replacing the main
board was replaced or detached.
Input the offset value from the recorded values.
How to input the registration mark sensor offset position from the recorded values
(1) Turn on the power while pressing the SLOW and the ENTER keys.
(2) The plotter displays the following menu.
(3) Press the PAUSE/MENU key to display the following menu.
CE7000-UM-251-9370 8-32
