12 Target electrical component for WEEE instruction

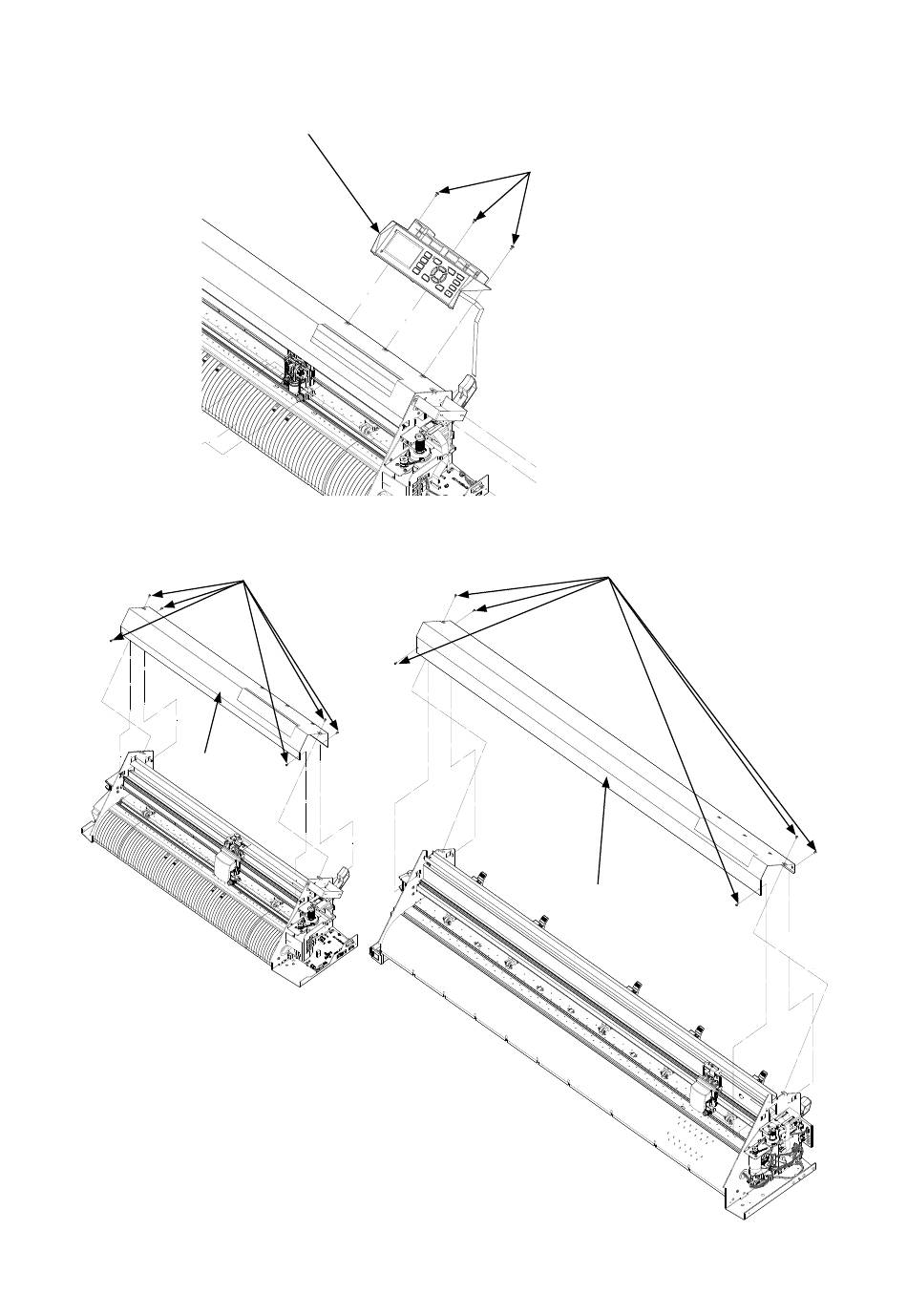

(3) Disconnect the control panel flexible cable from the main board.
(4) Remove the three M3L6 binding head screws holding the control panel assembly, and then detach it.
Control panel assembly
M3L6 binding head screw
(5) Remove the six M3L6 binding head screws holding the center cover.
CE7000-40/60
CE7000-130/130AP/160
M3L6 binding head screw
M3L6 binding head screw
Center cover
Center cover
CE7000-UM-251-9370
12-8
