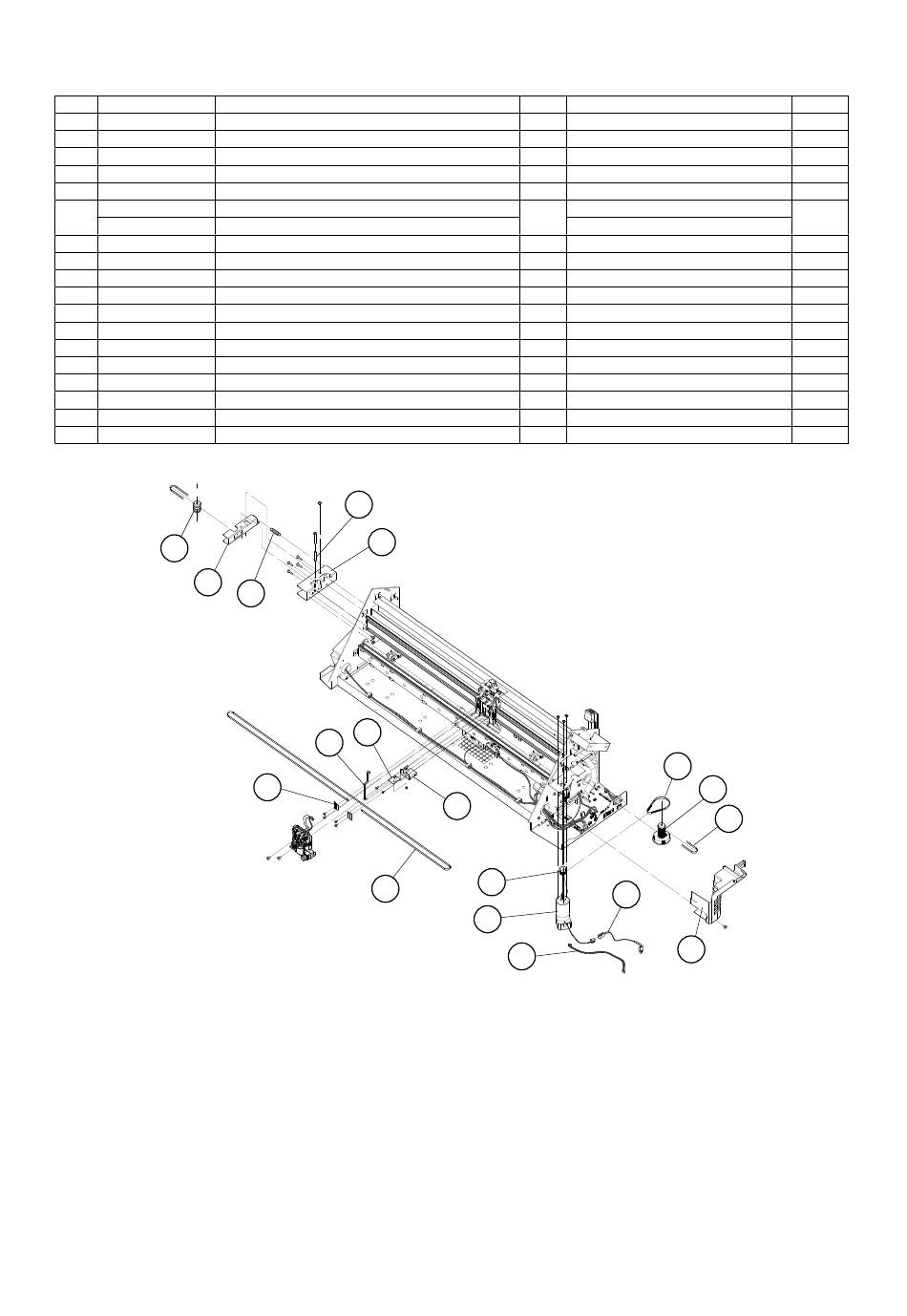

10.11 Y Drive Part CE7000-40/60

No. Part No.
1 U682157211 Motor, DMN37JE-010
2 U621802114 Pulley, Motor, S2M024-ASSY
3 U692180114 Cable, CA512211D
4 U692180092 Cable, CA512209B
5 U621844200 Cover, Motor Cover
U792700805 Belt, Y, 50S2M642LW-C
6
U792700810 Belt, Y, 50S2M870LW-C
7 U621863242 Pulley, Y Drive, Pulley Assey
8 U378009621 Belt, Motor, STS-60S2M192_96Z-R
9 U621843452 Bracket, Push Roller Sensor
10 U792700740 Push Roller Sensor Board, PN6043-04
11 U692180322 Flexible Cable, FFC512206B
12 U621843421 Plate, Y Belt Stopper Plate, CE70
13 U621843302 Bracket, Y Tension Bracket, CE70-40/60
14 Bush, C4L35
Binding Head Screw M4L40
15 U380206651 Spring, E665
16 U621843312 Bracket, Y Tension Arm, CE70-40/60
17 U792700900 Y Idler Pulley, CE70-40/60
Y Drive Part CE7000-40/60
17
16
CE7000-UM-251-9370
Description
14
13
15
10
11
12
6
Q'ty
2
2
2 Motor Encoder Cable
2 Motor Extension Cable
1
CE7000-40
1
CE7000-60
1
1
1
1
1 Push Roller Sensor
2
1
1
1
1
1
1
9
2
1
3
10-12
10 PARTS LIST
Remarks
8
7
6
4
5
Rank
A
C
C
C
C
A
A
A
C
A
A
C
D
D
D
D
D
C
