7
DISASSEMBLY AND REASSEMBLY
(8) Disconnect the X motor power relay cable and the X motor encoder cable from the X motor.

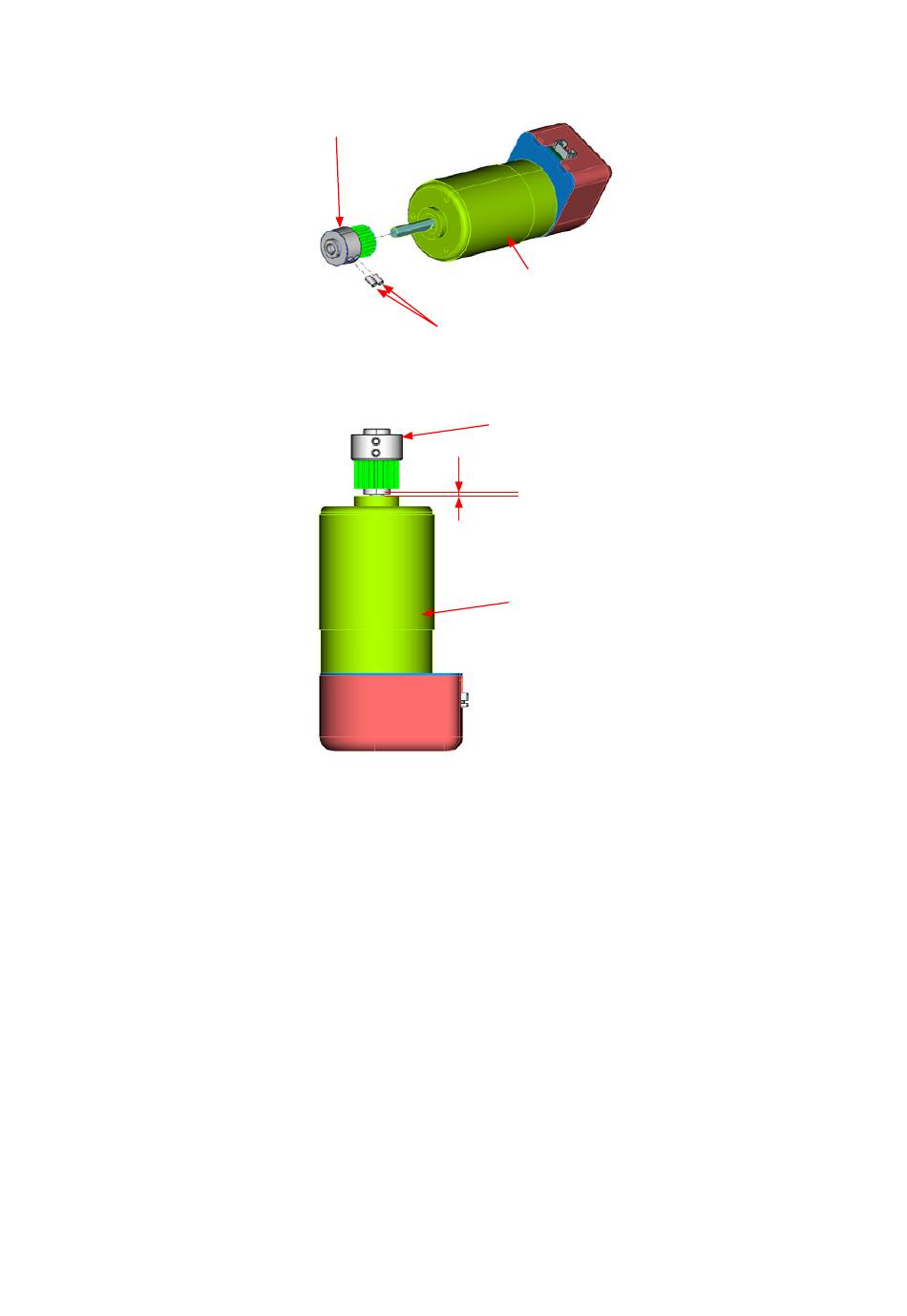

(9) Loosen the two M3L4WP set screws holding the X-motor pulley, then detach the X-motor pulley.
X motor pulley
X motor
M3L4WP set screw
How to reinstall the X-motor
(1) Attach the X-motor pulley to the X-motor at the following position.
X motor pulley
1.5 mm
X motor
(2) Tighten the two M3L4WP set screws that hold the X-motor pulley.
(3) Spread a suitable quantity of Loctite 222 on the two M3L4WP set screws that hold the X-motor pulley.
(4) Attach the X motor to the right side plate.
(5) Hang the X-drive belt on the X-drive pulley.
(6) Perform the X-drive belt tension adjustment (Refer to subsection 7.3.3.).
(7) Reattach the other parts in the reverse order in which they were detached.
(8) Confirm the wiring for X motor cables (Refer to subsection 7.4.).
CE7000-UM-251-9370
7-32
