12 Target electrical component for WEEE instruction

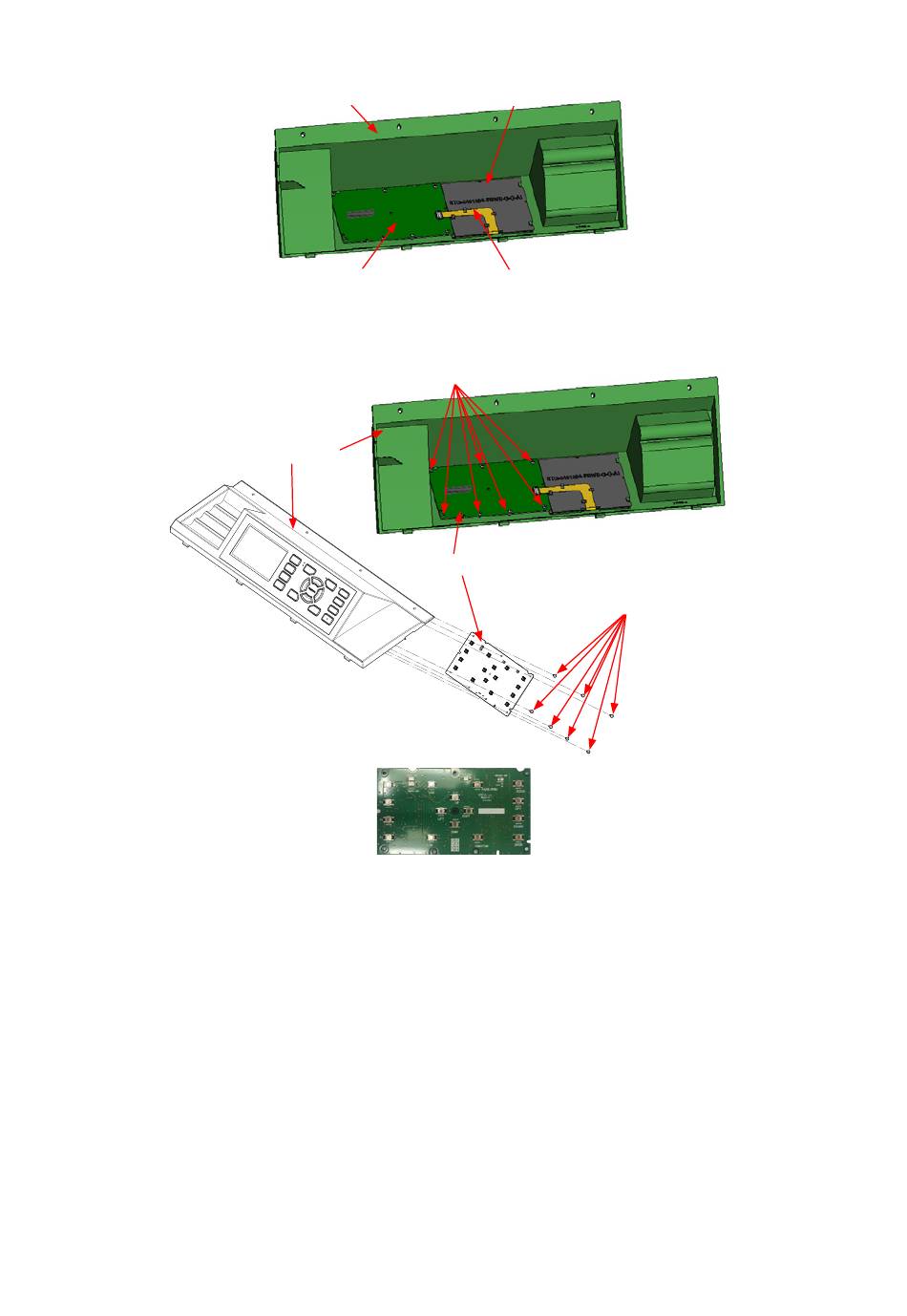

(5) Disconnect the LCD flexible cable from the control board.
Control panel cover
LCD
Control panel board
LCD flexible cable
(6) Remove the seven M2L5 self-tapping screws holding the control panel board, and then detach the
control panel board from the control panel cover.
M2L5 self tapping screw
Control panel cover
Control panel board
M2L5 self tapping screw
