Explanation of the Values of the Main Board Settings

(Default factory settings)

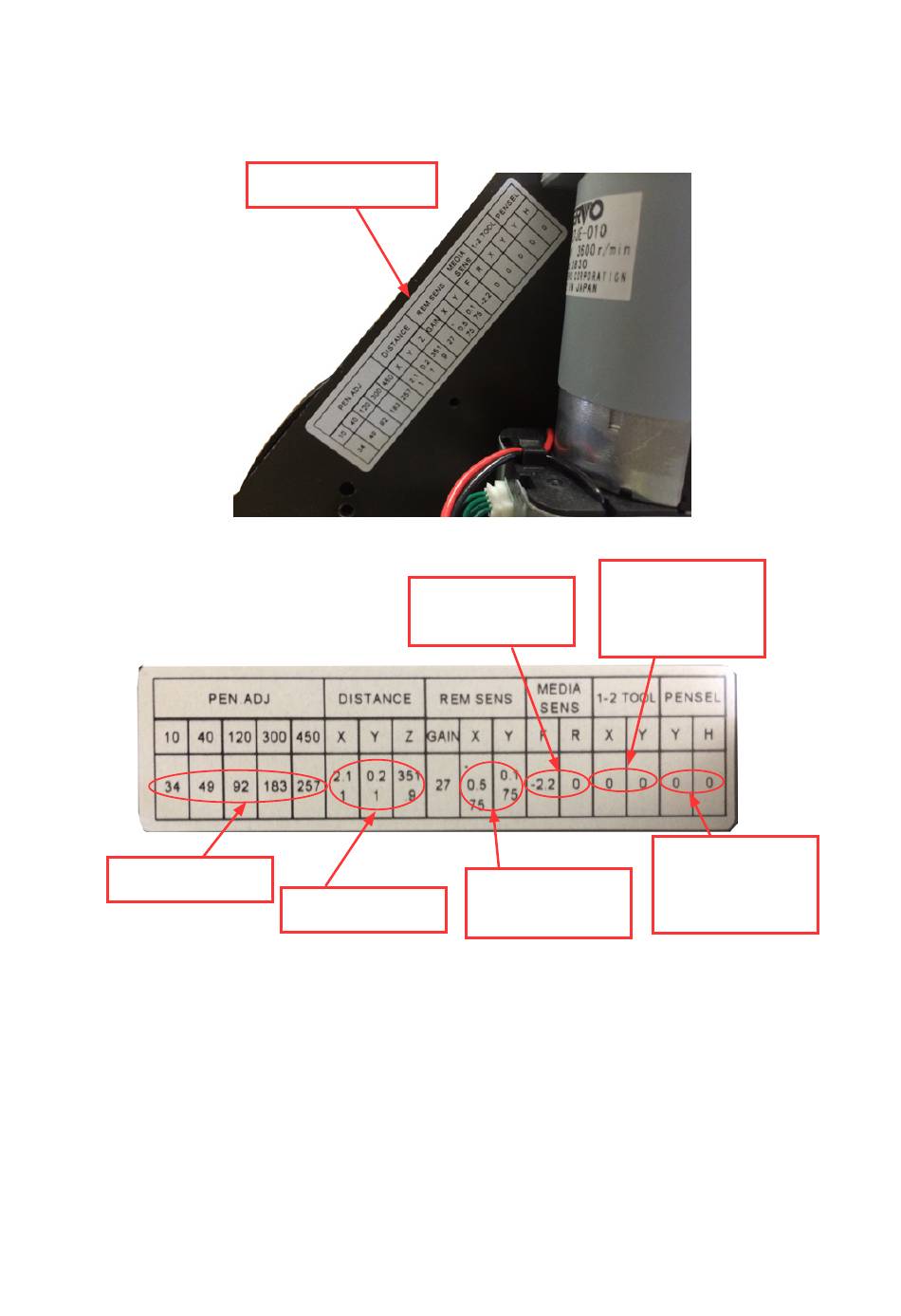

The default factory settings are recorded on the right side plate shown below.
The contents of an example record are shown below.
The pan force adjustment
values are recorded here.
You can input the same values when you have replaced the main board without making any adjustments
except the Registration Mark Sensor Sensitivity adjustment.
If you have changed any values by making adjustments, record those values for the next maintenance
check.
CE6000-UM-251-9370
The default factory settings
are recorded here.
The media sensor
position adjustment
values are recorded here.
The distance adjustment
values are recorded here.
7 ELECTRICAL ADJUSTMENTS
The 1st pen and 2nd
pen position adjustment
values are recorded here.
(For the CE6000-120AP)
The registration sensor
position adjustment
values are recorded here.
7-3
The 2nd pen station
position adjustment
values are recorded here.
(For the CE6000-120AP)
