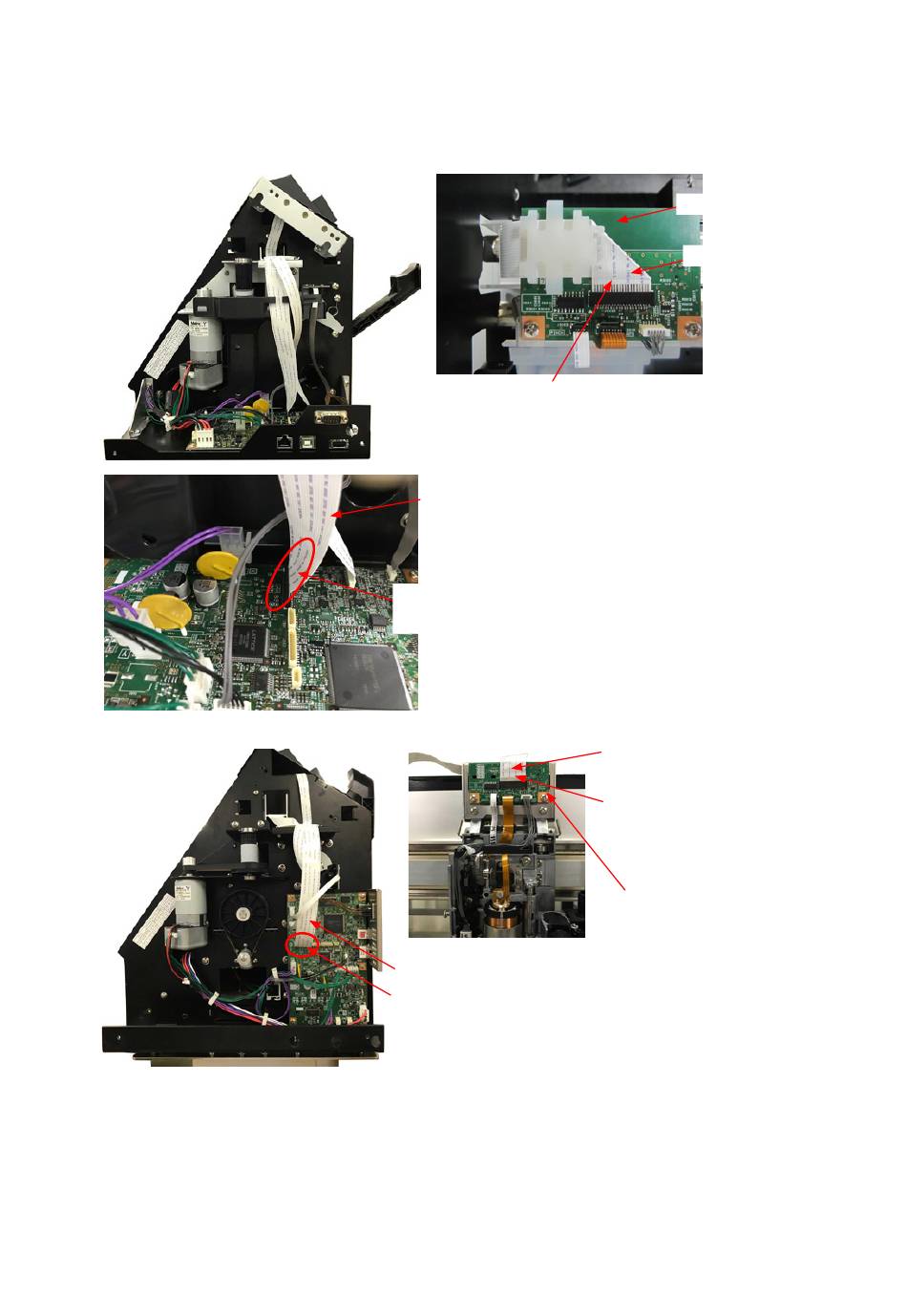

Confirming the flexible cable wiring (Y flexible cable) from the Y relay board to the main board
The flexible cable has a right side and a wrong side, connect the flexible cable correctly as shown in the
picture below.
CE7000-40/60
CE7000-130/130AP/60
CE7000-UM-251-9370
7
Confirm the printed side,
which is facing to the up.
Y Flexible cable
Confirm the printed side,
which is facing to the front.
Y Flexible cable
Confirm the printed side, which
is facing to the bottom.
7-67
DISASSEMBLY AND REASSEMBLY
Y relay board
Y Flexible cable
Y Flexible cable
Confirm the printed side,
which is facing to the front.
Y relay board
