8.15.2 Adjusting the X Media Sensor Position

When the media sensor was replaced or detached, perform this adjustment.
Preparation

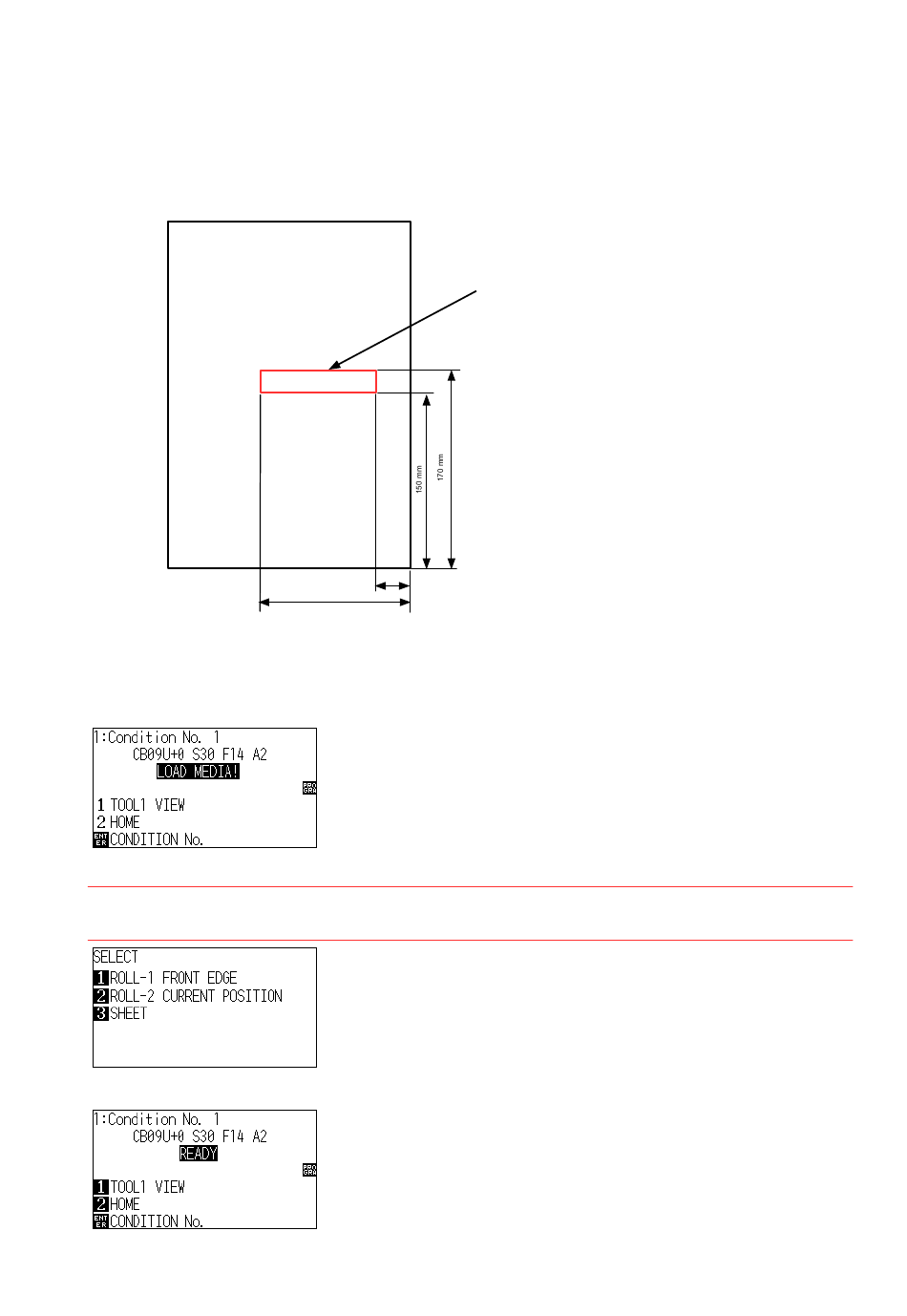

Make a adjustment target sheet as shown in the picture below.
Make a 100 mm x 20 mm rectangle hole on the A4 copy paper to the following position.
How to adjust the X media sensor position
(1) Turn on the power while pressing the SLOW and the ENTER keys.
(2) The plotter displays the following menu.
(3) Load the adjustment target sheet to the plotter, and then the plotter displays the following menu.
Note: The front media sensor should be covered by the front area of the target sheet to read the front
edge of the target sheet when the target sheet is loading into the plotter.
(4) Press the 3 key (SHEET) to display the following menu.
CE7000-UM-251-9370
Make a 100 mm X 20 mm rectangle
hole to the A4 size of copy paper at
the showing position.
30 mm
130 mm
8-42
8 Electrical Adjustment
